18 SIPROTEC 4/5, Vorschaltgerät 7XT71, Produktinformation
C53000-B1174-C128-7, Ausgabestand 09.2016
8.2 Schalttafelaufbau (7XT7100-0BA00)

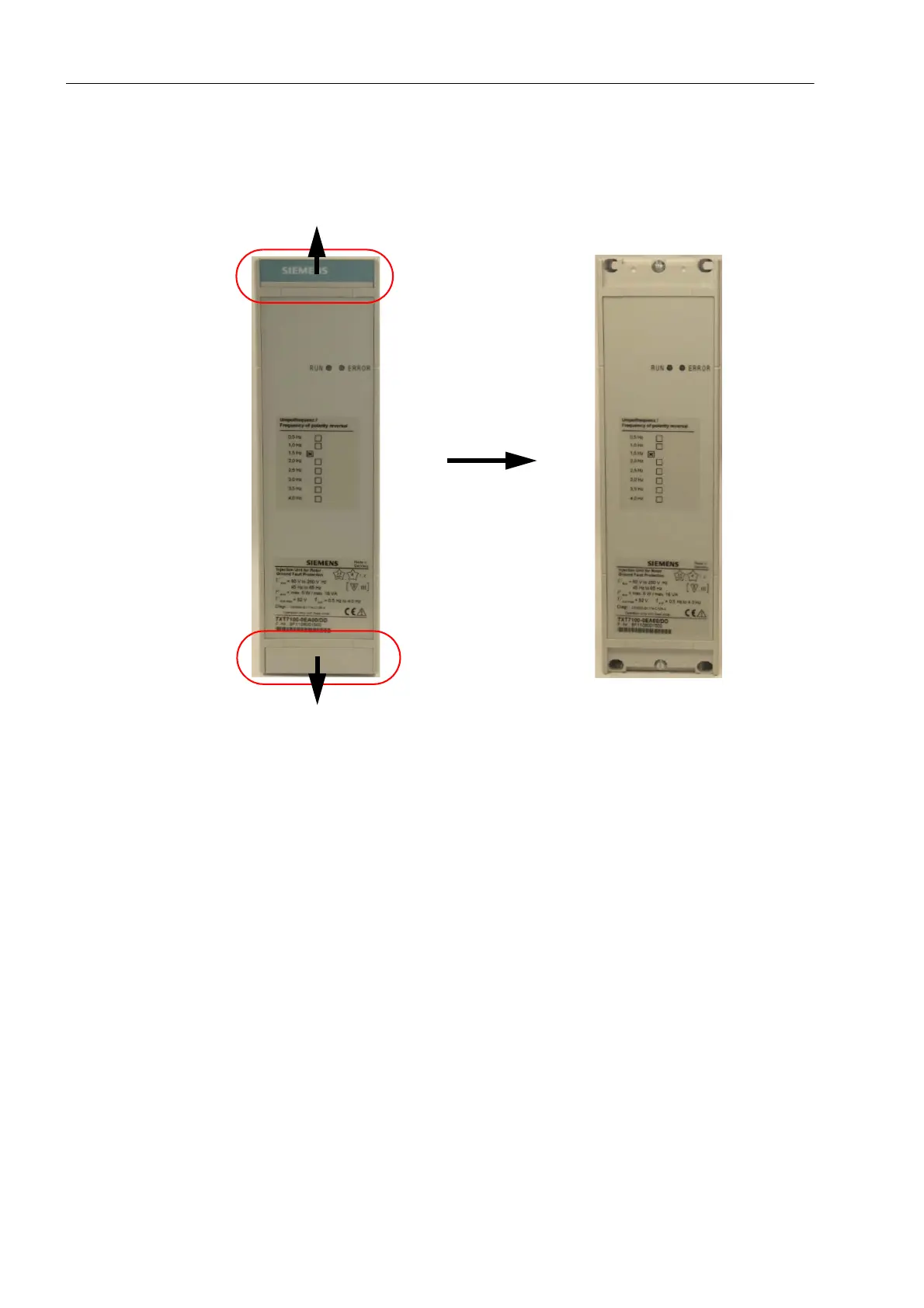

✧ Ziehen Sie an der Frontabdeckung die 2 Abdeckkappen jeweils nach oben und
unten ab.
Bild 8-1 Abziehen der Abdeckkappen
