[Tripping characteristic curve 0, 1, en_US]

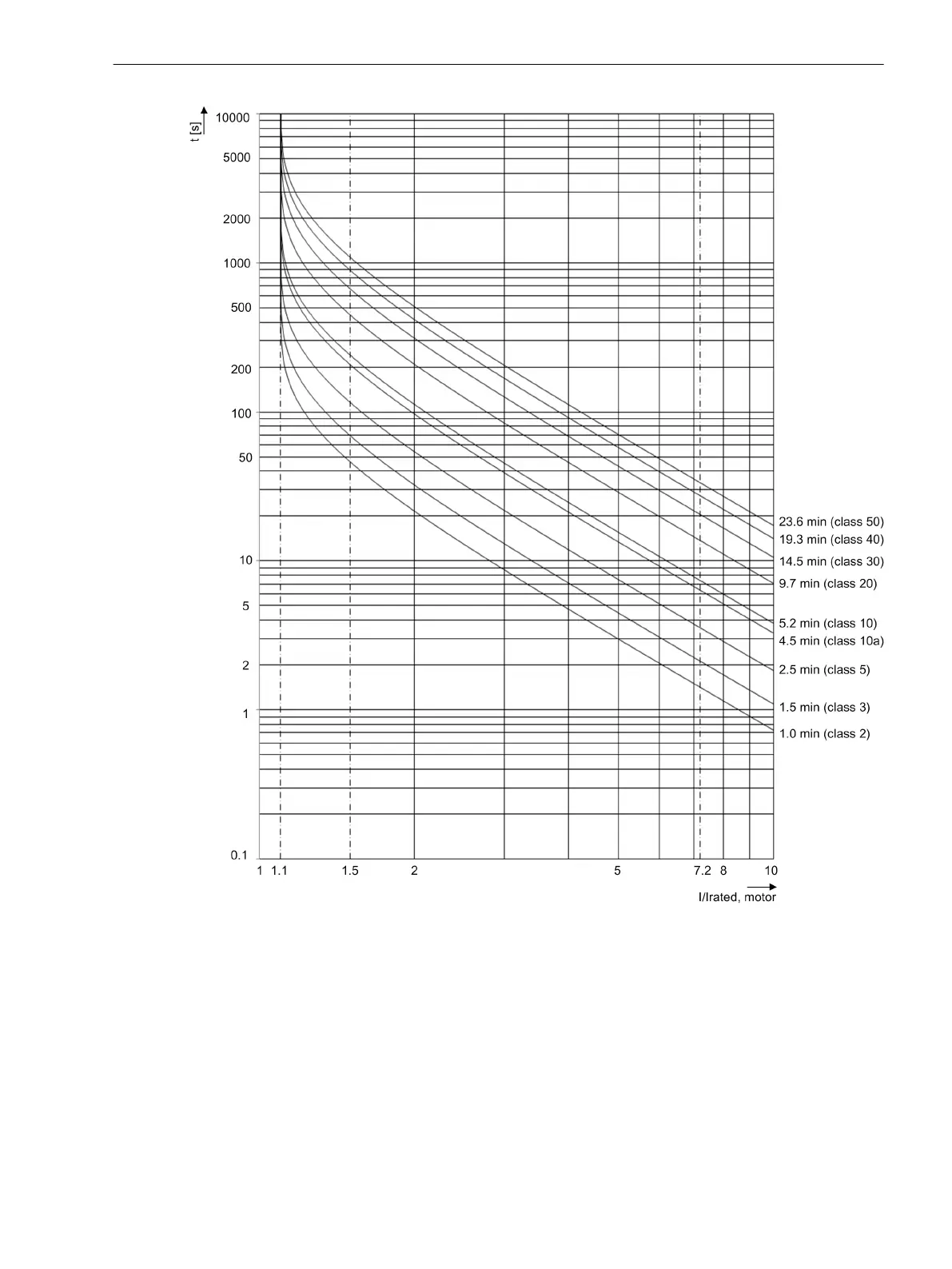

Figure 3-1
Operate Curve for 3-Pole Symmetric Load without Preload for the Tripping Classes 2 to 50
Operate Curve
3.1 Operate Curve for Symmetric Load
SIPROTEC 5, Additional Information on the Protection of Explosion-Proof Motors with Type of Protection Increased Safety e,
Manual
21
C53000-H5050-C078-1, Edition 03.2019
