Configuration
3.8.6 Motion Detector Event Action (Notify) Setup Screen
The DVR can be set to contact a computer running RAS (Remote Administration
System) or send an e-mail (LAN connections) when certain motion events occur.
See the Figure 61 – Callback Center (LAN) Setup screen or Figure 62 – Callback
Center (Modem) Setup screen.

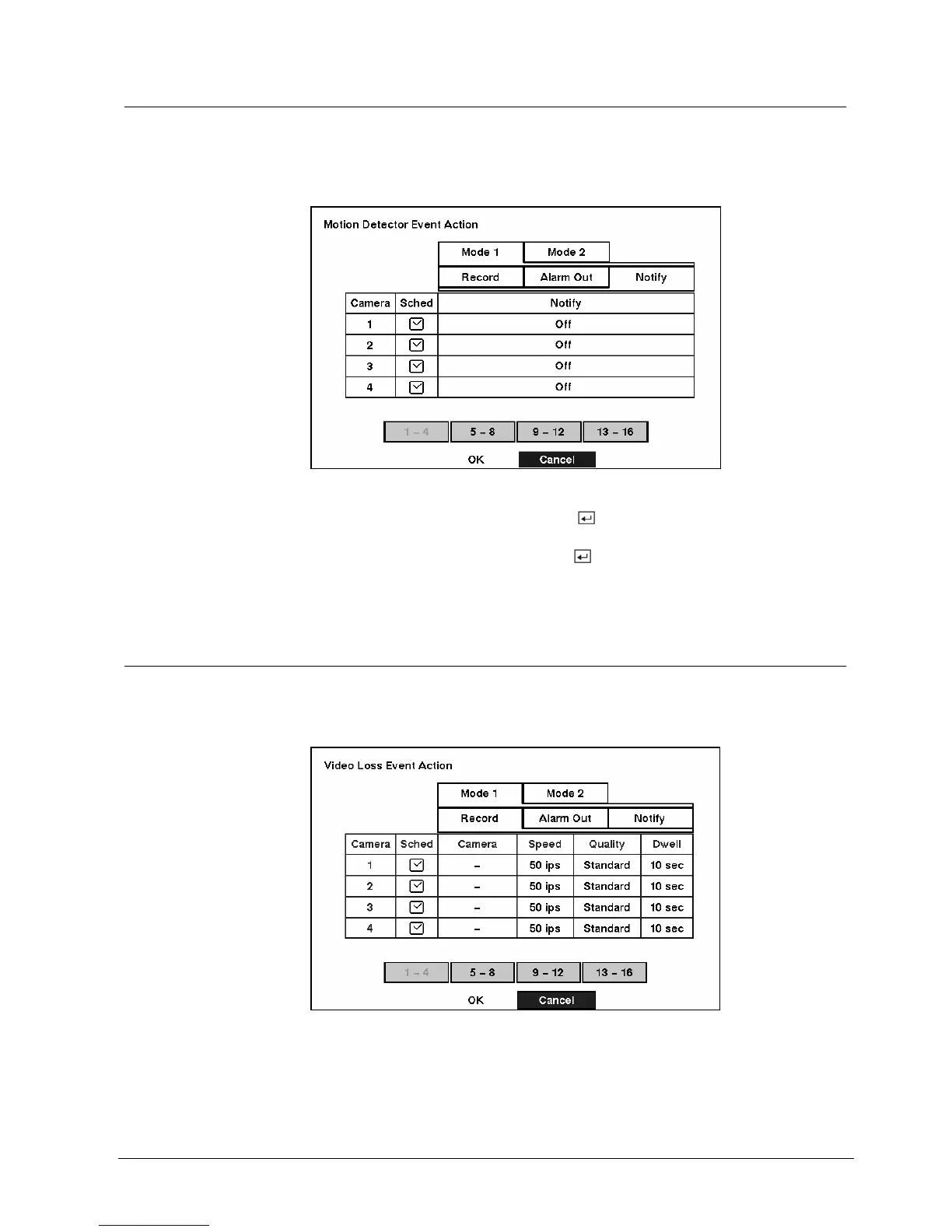

Fig. 53 Motion Detector Event Action (Notify) setup screen.
z Highlight the Sched box and press the button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Notify box and press the button. This toggles between On and
Off. When it is On, the DVR notifies the remote site when certain motion events
occur based on a defined schedule.
3.8.7 Video Loss Event Action (Record) Setup Screen
The DVR can be set to react to video loss from a camera differently. Each camera
can be assigned a schedule, associated camera, recording speed, video quality
and dwell time.
Fig. 54 Video Loss Event Action (Record) setup screen.
51
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
