Configuration
3.8.9 Video Loss Event Action (Notify) Setup Screen
The DVR can be set to contact a computer running RAS (Remote Administration
System) or send an e-mail (LAN connections) in the case of video loss. See the
Figure 61 – Callback Center (LAN) Setup screen or Figure 62 – Callback Center
(Modem) Setup screen.

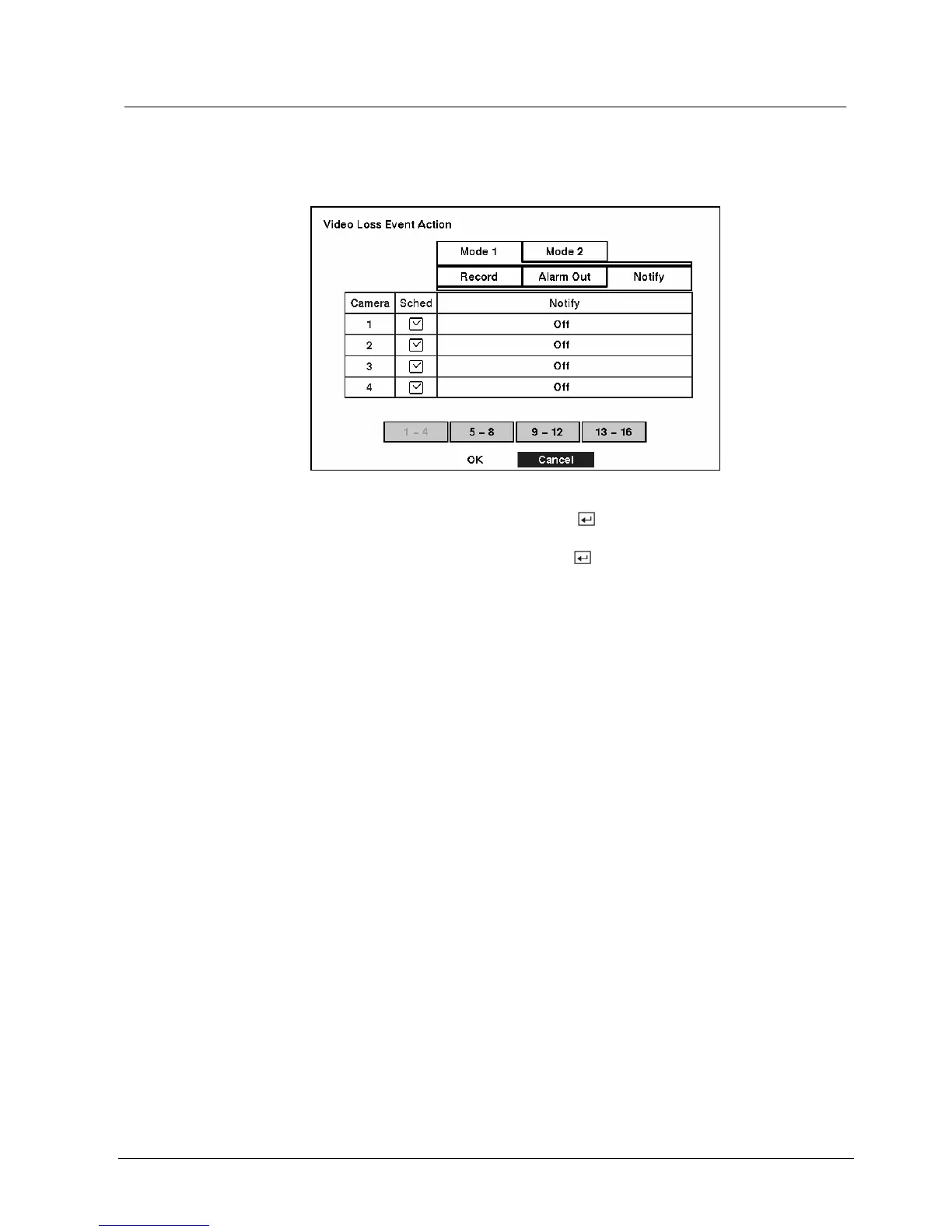

Fig. 56 Video Loss Event Action (Notify) setup screen.
z Highlight the Sched box and press the button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Notify box and press the button. This toggles between On and
Off. When it is On, the DVR notifies the remote site when it loses video input
from a camera based on a defined schedule.
53
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
