7ML19985JR01 SITRANS LR200 (PROFIBUS PA) – INSTRUCTION MANUAL Page 143
mmmmm
H: Antenna Options

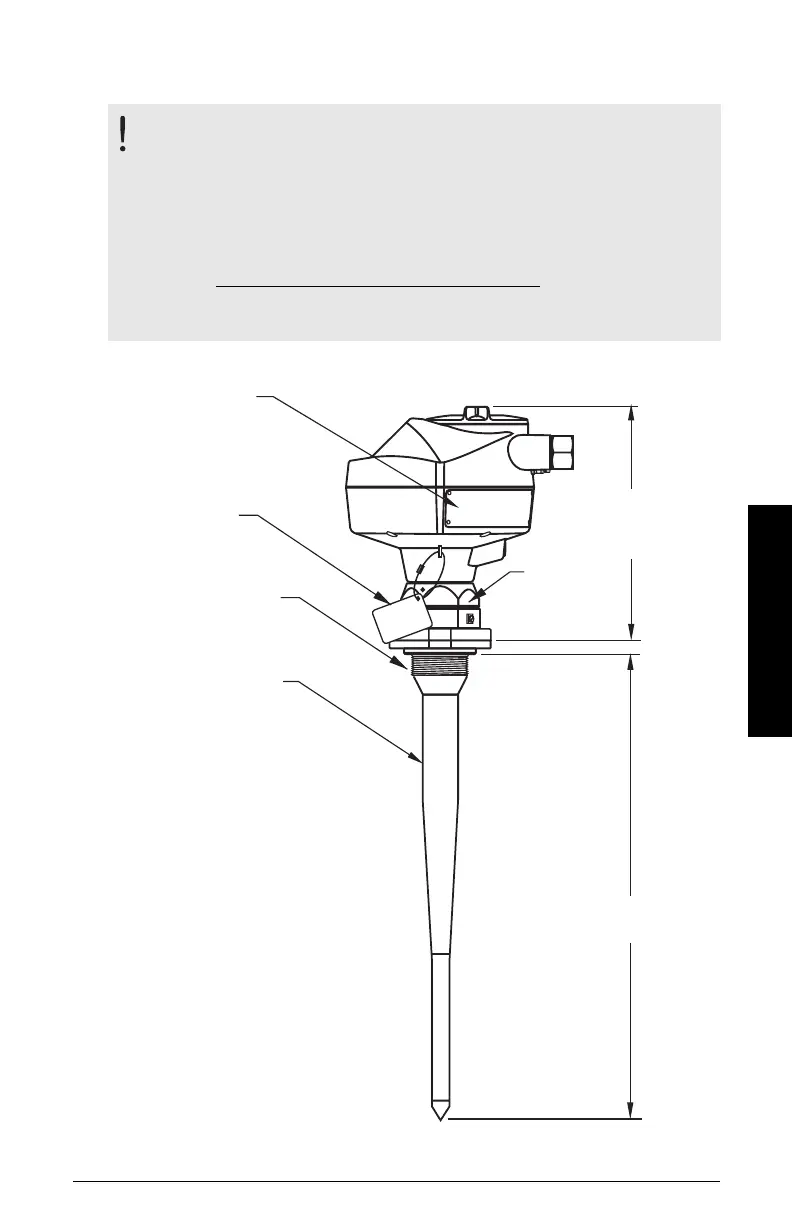

Dimensions: Threaded Connection, PTFE Rod
WARNING: For pressure applications, it will be necessary to use PTFE
tape or other appropriate thread sealing compound, and to tighten the
process connection beyond hand-tight.
Notes:
• Process temperature and pressure capabilities are dependent upon information on
the process device tag.
• The reference drawing listed on the tag is available on the product page of our
website at: https://pia.khe.siemens.com/index.asp?Nr=7427
. Under More Info click on
Installation Drawings, then scroll down to Level Measurement > Installation
Drawings > SITRANS LR200.
412 mm (16.3")
sensor
reference
point
187 mm
7. 4"
nameplate
locking
ring
process device tag
PTFE antenna
*
* 17 mm (0.67")
316SS,
2" NPT, BSP
or 'G' (ISO 228)
