Commissioning
6.3 Adjustment and initial commissioning
SIWAREX WL200
38 Operating Instructions, 07/2016, A5E02199611B-03
5. Install the calculated resistances:

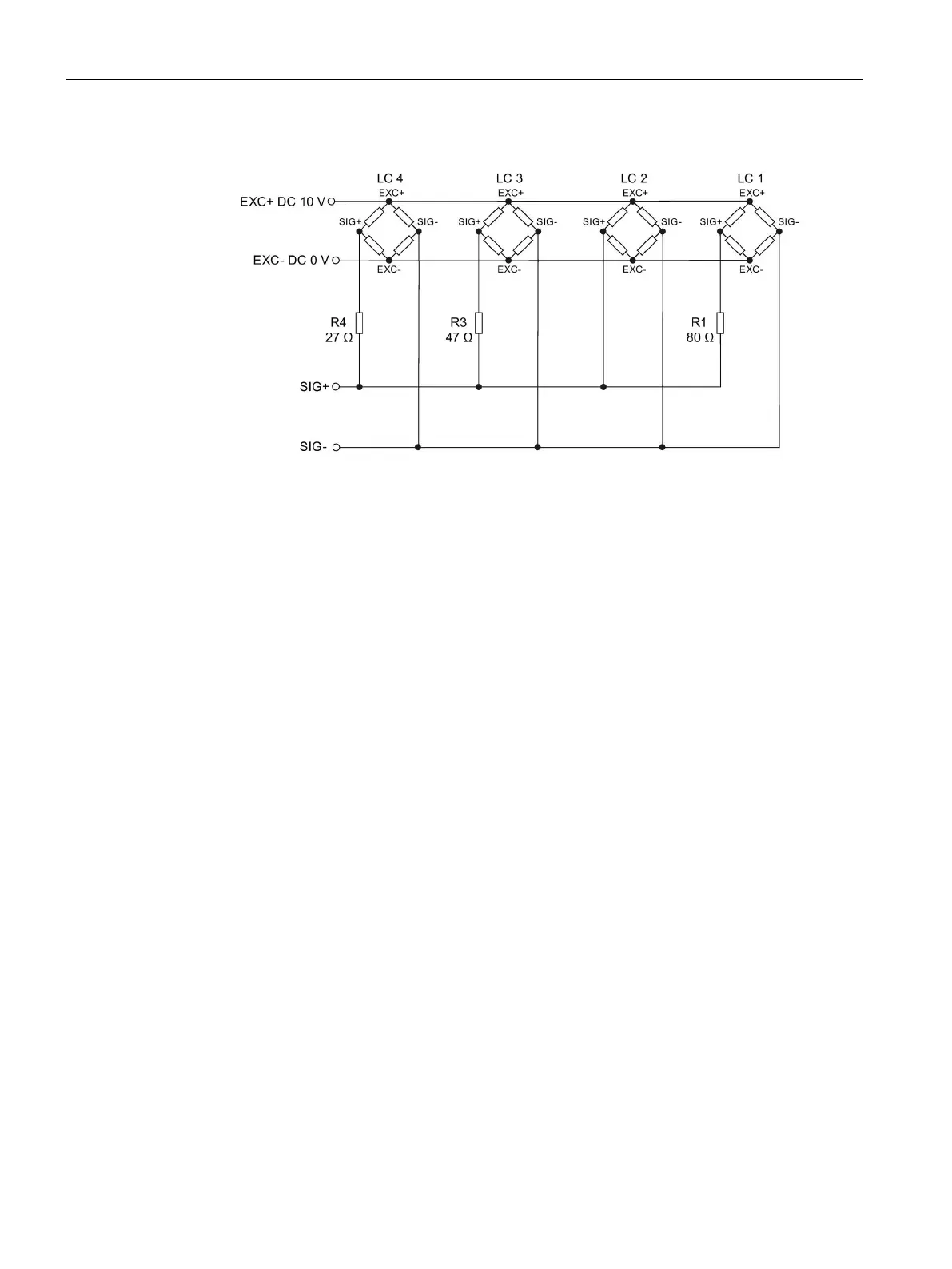

Figure 6-4 Circuit diagram for corner load adjustment
6. Repeat the test.
