The user may choose to save the information and vehicle profiles for future reference.
1. In the Monitoring & Simulation menu in the SLD4 Configurator software, click on
the Recording Ended (“Aufnahme beendet”) tab.
2. Save the recording, which creates the (.veh file).
File name structure: Kunde_BUeNr_IBN_SLD4_Datum.veh
Example: SBB_BUe94_IBN_SLD4_20161201.veh
5.5. Putting the loop detector into operation
1. Screw the module in tightly
2. Disconnect the connection to the module using the software

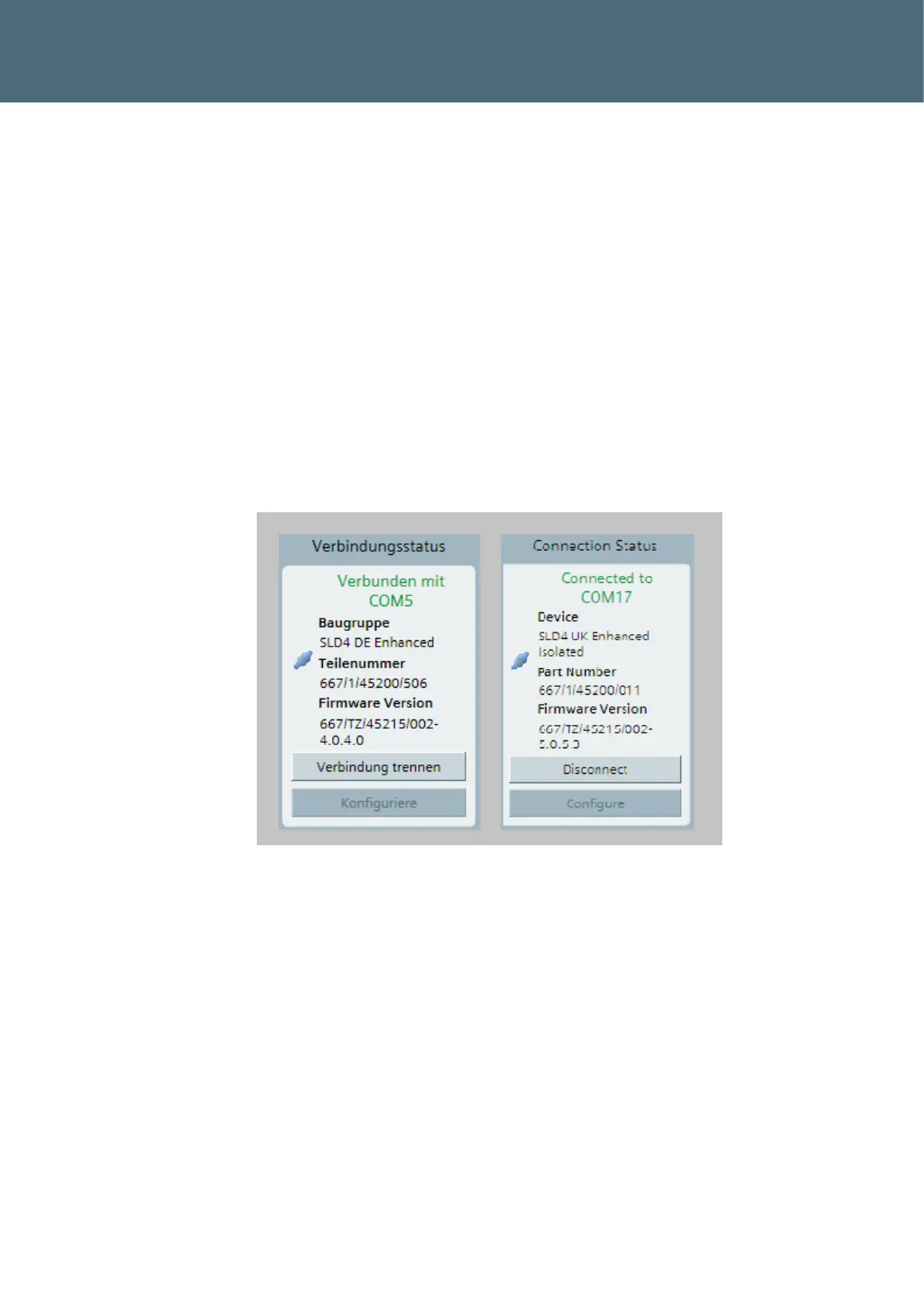

Figure 11 : Disconnecting the Serial COM Interface
