Siemens Industry, Inc.
Building Technologies Division
P/N 315-033050-1519
NOTES
1. All wiring must be in accordance with Article 760 of NEC or local building codes. Wiring for each zone can either be Class A or Class B.
2. All output circuits are power limited to NFPA 70 per NEC 760.
3. Electrical Ratings For Speaker Application:
Output Zone Supervisory: 4mA max @ 24VDC
Output Zone Active: 96 Watts max / zone
Electrical Ratings For Special Application: 24 VDC (strobe)
Output Zone Supervisory: 4mA max
Output Zone Alarm: 3A max
4. EOL resistor, 24k ohms, 1 watt , 5%, P/N 140-033771.
5. Polarity shown in active state.
6. Sync and non-sync notification appliances permitted.
7. For a list of Compatible Notification Appliances, refer to P/N 315-096363.
8. Refer to CAB1/CAB1R (P/N 315-0330007) and CAB2-BB/CAB3-BB (P/N 315-033009) Installation Instructions for details on the separation of
power limited and non-power limited wiring.
9. Verify that P1 - P4 are in the proper location for speaker application.
10. Maximum line resistance is dependent upon the maximum current draw of connected notification appliances when activated. The field wiring
resistance cannot exceed the maximum line resistance specified for any given NAC current draw. (See Table)
11. Zone Usage pair is interchangeable. Verify proper wiring.
12. Positive or negative ground fault detected at <40K ohms for terminals 1-16.
Figure 14

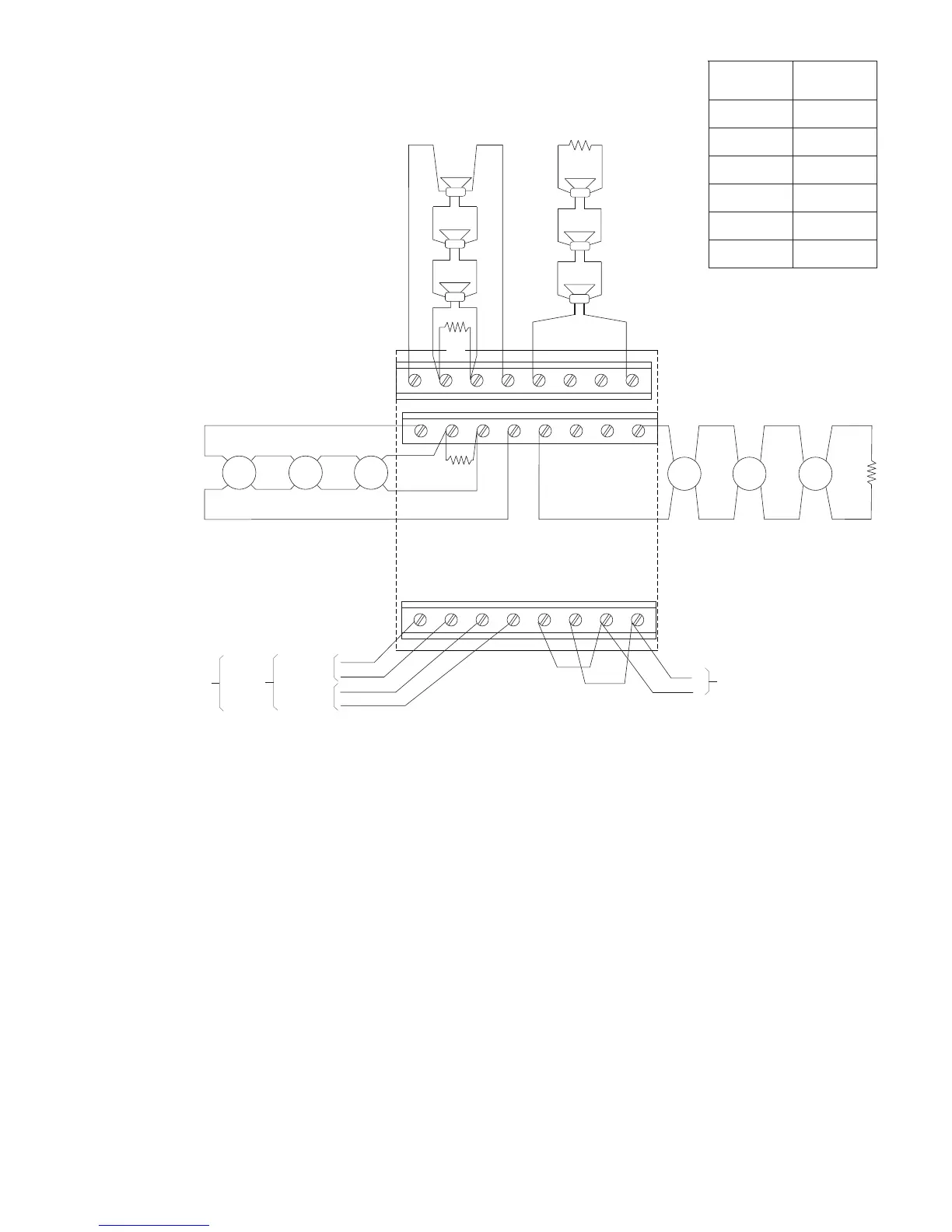

ZIC-4A Two-Channel Audio And Strobe Wiring
12345678
910111213141516
+
+
+
+
NC
NC
NC
NC
-
---
17 18 19 20 21 22 23 24
STYLE Z
(CLASS A)
ONE SLOT OF CC-5
24K,
1W
5%
ZONE 3
+
-
+
-
+
+
--
TO NEXT
ZIC-4A
CHANNEL A
CHANNEL B
24K,
1W
5%
AUDIO FROM PREVIOUS
ZIC-4A OR FROM ZAC-40/
ZAM-180 TERMINALS
1A AND 1B OR 2A AND 2B
24V (-)
24V (+)
ZONE INPUT
24K,
1W
5%
24K,
1W
5%
*
*
STYLE Y
(CLASS B)
ZONE 4
FOR CANADIAN APPLICATIONS,
USE EOL MODEL REL-EOL.
OMIT THE DIODE.
*
STYLE Z
CLASS A
ZONE 1
ZONE 2
24K,
1W
5%
STYLE Y
CLASS B
tnerruC
warD
eniLxaM
ecnatsiseR
A0.3smho8.0
A5.2smho0.1
A0.2smho2.1
A5.1smho9.1
A0.1smho4.3
A5.0smho9.7
