SDG1000X User Manual 49

2.9.1 AM

The modulated waveform consists of two parts: the carrier and the modulating

waveform. In AM, the amplitude of the carrier varies with the instantaneous

voltage of the modulating waveform.

Press Mod → Type → AM, the parameters of AM modulation are shown in

Figure 2-21.

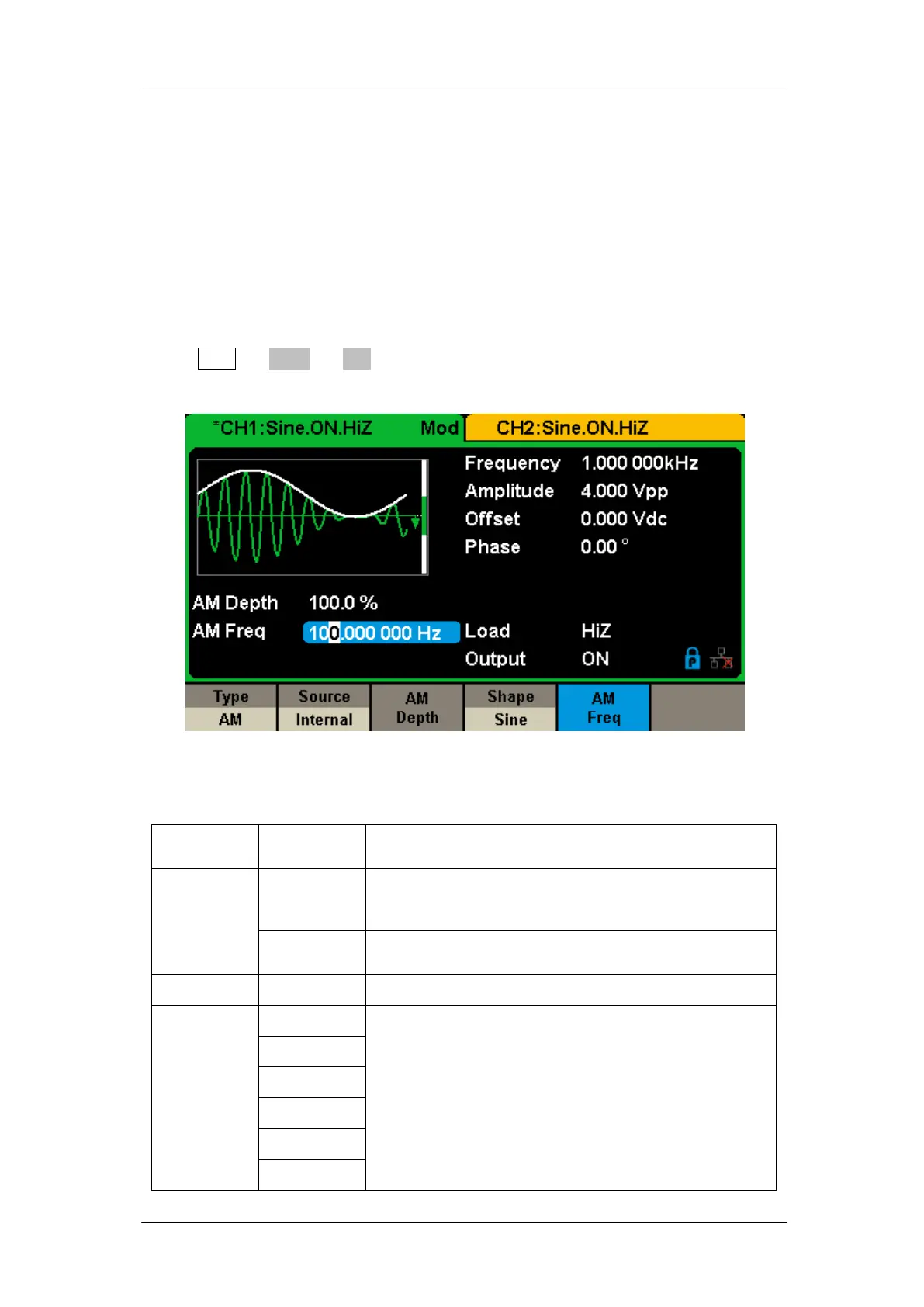

Figure 2-21 Setting Interface of AM Modulation

Table 2-9 Menu Explanations of the AM Parameters

Function

Settings

Explanation

Type

Amplitude modulation

Source

Internal

The source is internal

External

The source is external. Use the [Aux In/Out] connector

at the rear panel.

AM Depth

Set the modulation depth.

Shape

Sine

Choose the modulating waveform.

Square

Triangle

UpRamp

DnRamp

Noise
