The modulated waveform consists of two parts: the carrier and the modulating
waveform. In PM, the phase of the carrier varies with the instantaneous
voltage level of the modulating waveform.
Press Mod → Type → PM, the parameters of PM modulation are shown in
Figure 2-24.

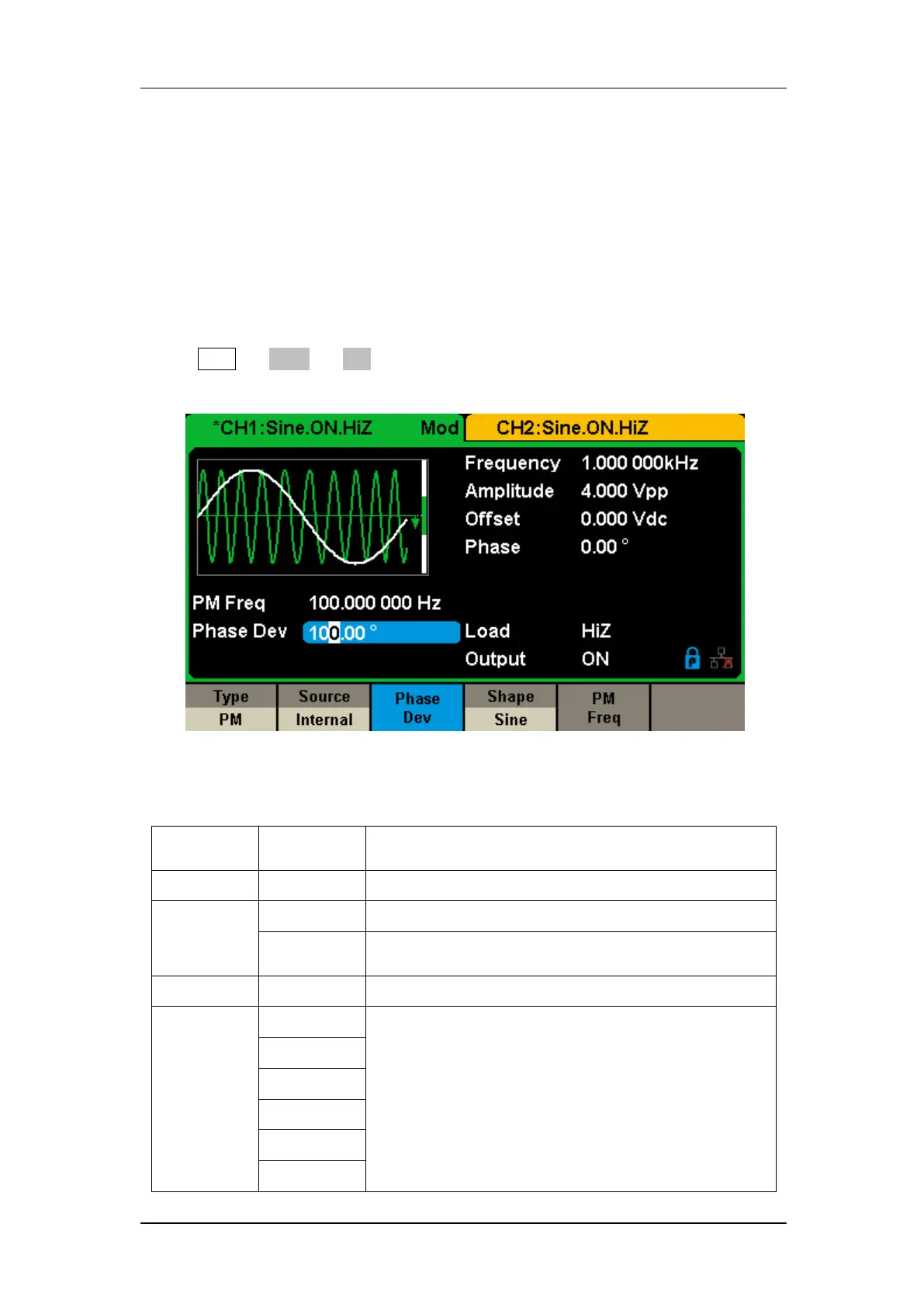

Figure 2-24 Setting Interface of PM Modulation
Table 2-12 Menu Explanations of the PM Parameters
The source is external. Use the [Aux In/Out] connector
at the rear panel.
Phase deviation ranges from 0° ~ 360°.
Choose the modulating waveform.
To Next Page
