SDM3045X Service Manual 19

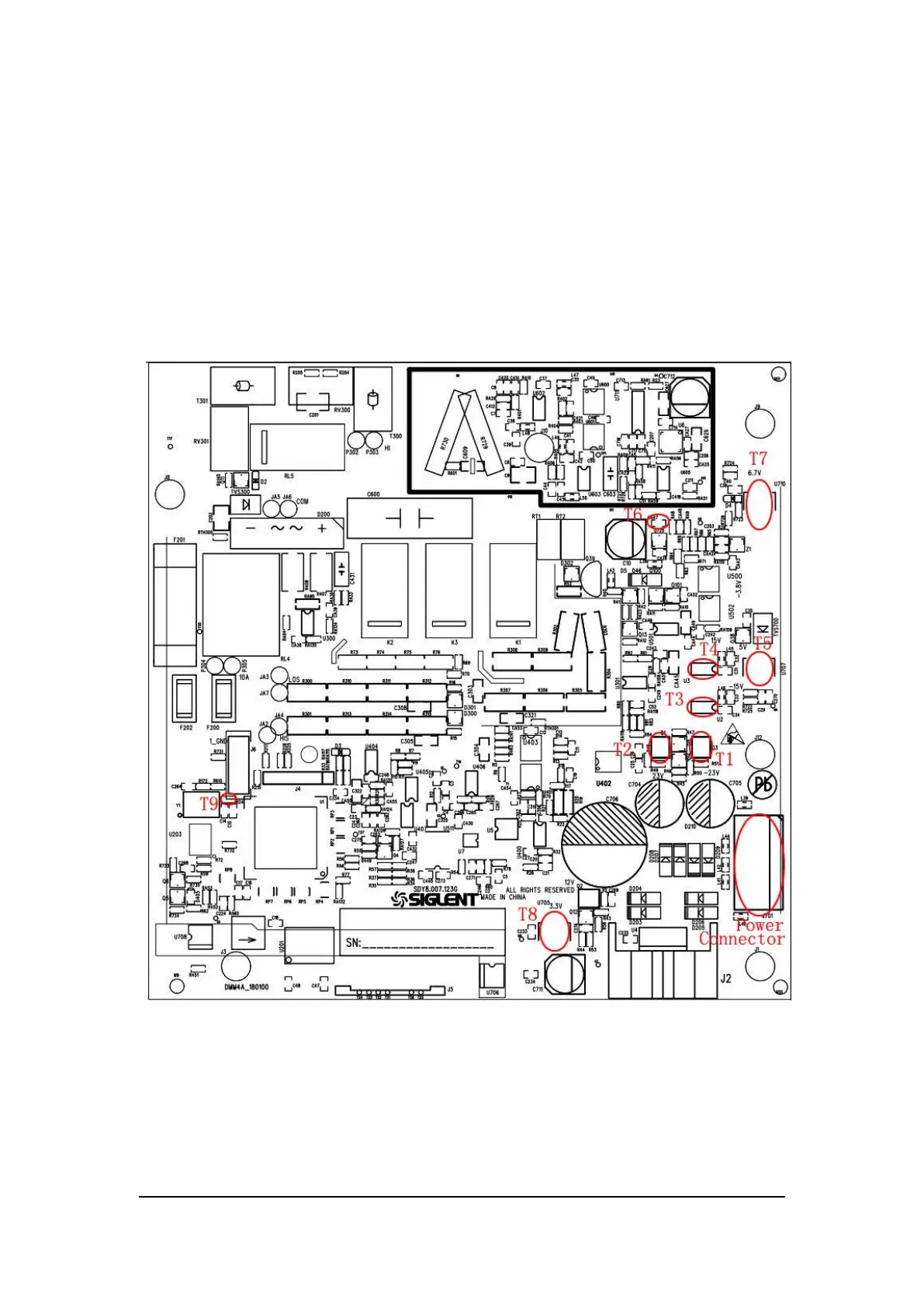

Analog Board Drawing
The analog board is a signal sampling board that converts the analog input into
a digital signal. It mainly works on signal processing such as AC is converted
to DC in order to measure AC magnitude. Please refer to the following drawing
to quickly locate the test points on the analog board for easy resolution of the
failures you encounter.
