SIGLENT TECHNOLOGIES SDM3045X User Manual

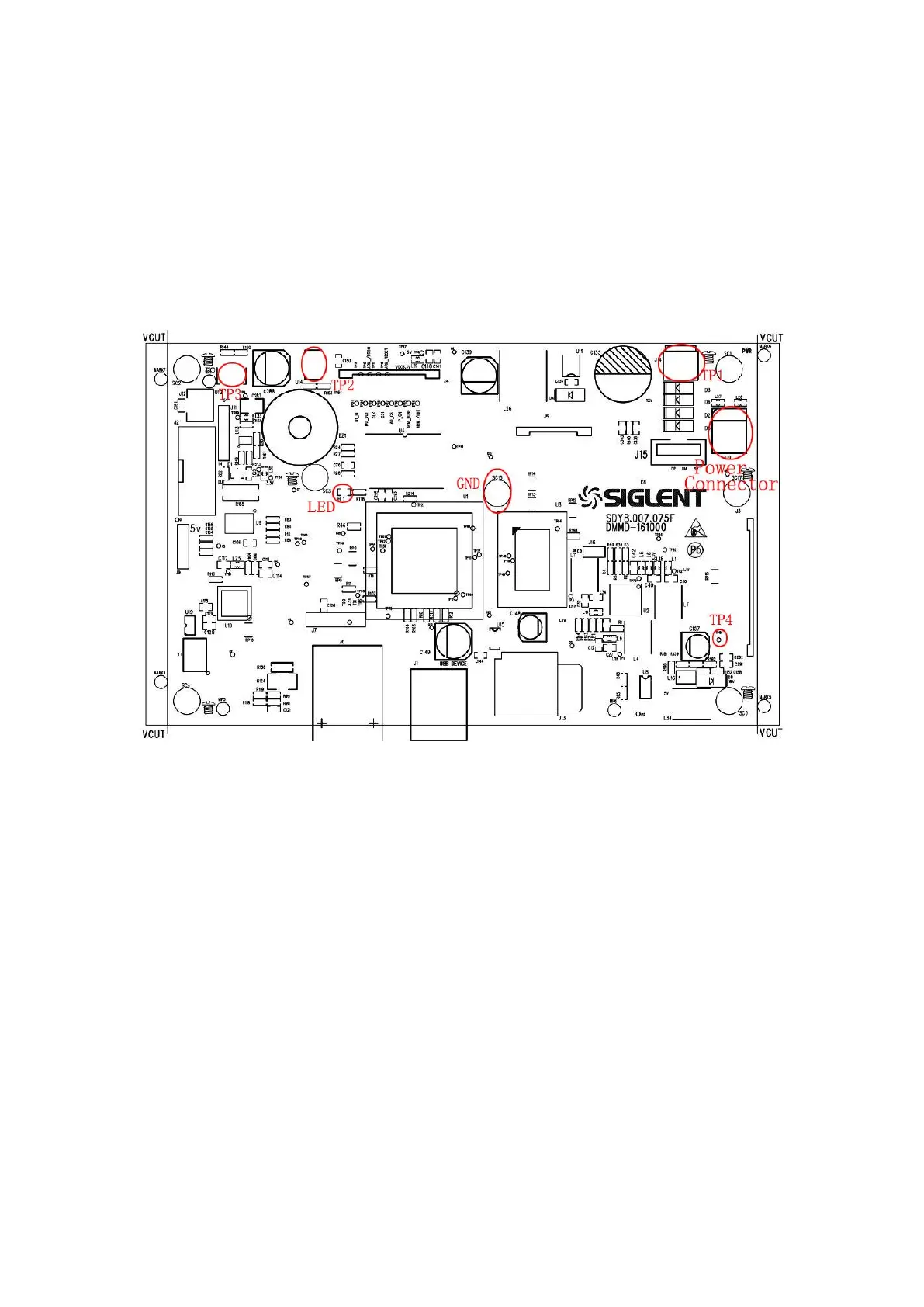

Main Board Drawing
The main board is used to control and manage the whole internal system of the
multimeter. It completes the GUI function, controlling and configuration
function for analog board as well as man-machine interactions. Please refer to
the following drawing to quickly locate the test points on the main board for
easy resolution of the failures you encounter.
