2.9 Waveform display
SPD3303X/3303X-E can display the changing of current voltage and current in
real time in the form of curve drawing.
Operation steps:
1. Select CH1/CH2, and then set voltage/current parameter;
2. Press “Wavedisp” button to enter Waveform Display interface, and the
indicator light turns bright immediately.
3. Press CH1/CH2 “on/off” button to turn on the output, the corresponding
indicator light turns bright immediately and you can observe the real-time
changing of current voltage/current.

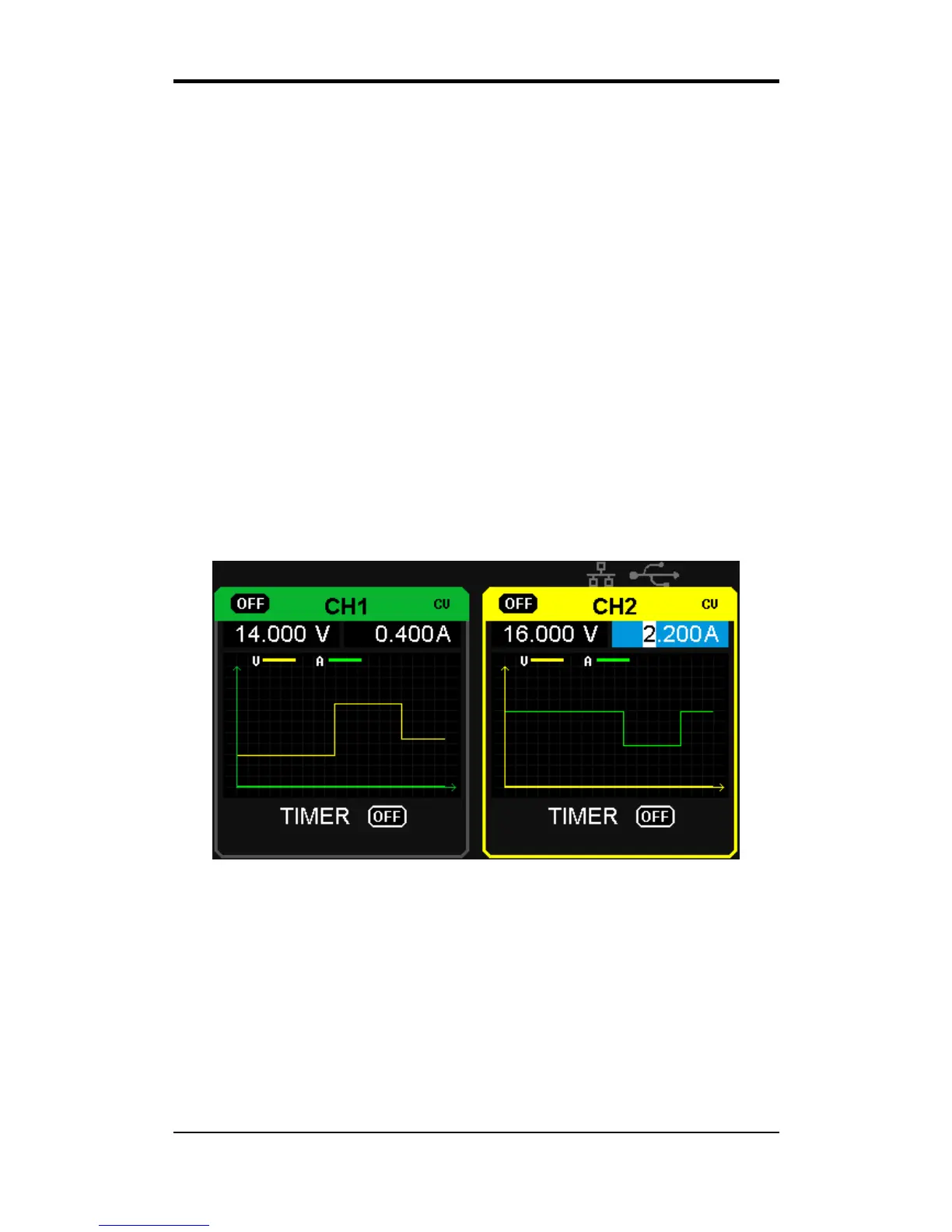

Waveform interface:
Note: Yellow line means voltage, green line means current, and axis of
ordinate means voltage or current value (0~32V/0~3.2A).
