SA300 Installation Instructions
RLY 1 is used: in Normal Mode as end switch when input is maintained to ACT2 and
common; in Washroom Mode for occupied indicator; and to inhibit swing sensor in Safety
Sensor installations.
5.
Terminal Wiring

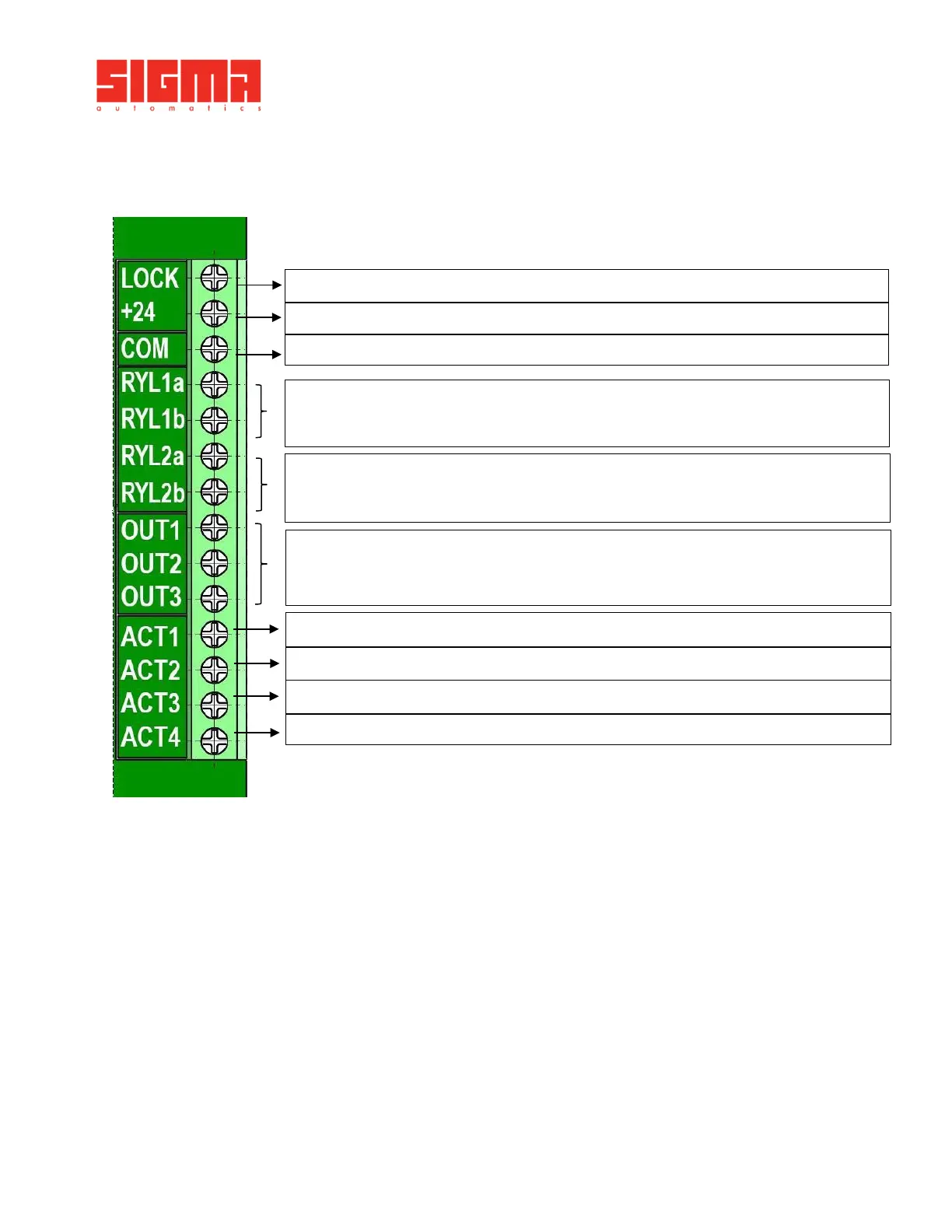

5.1. Terminal Description / Legend
Lock relay used for operating electric locking hardware.
24VDC power terminal used to power device and looking hardware.
Shared input for all dry device and as 0VDC output for power devices.
Primary activation input.
Secondary activation input used for fire alarm, washroom, access control.
Input used in washroom, access control and safety sensor setup.
Input used safety sensor setup.
RLY 2 - Future use
Used in Normal Mode in conjunction with overhead safety sensors.
To Next Page
