Sigma AUTOMATICS SA300 - Pre-Installation Information; Parts List

SA300 Installation Instructions
REV.2023-10-01
5 / 32
2. Pre-Installation Information
2.1. Parts list
Before installation, please verify that the product was shipped with all required components. Verify the model
number, header width, door handing, arm and colour.
• Do not attempt installation if any parts are missing.
• Please report any missing parts or an incorrect shipment within 5 days of delivery, otherwise claim will be
rejected.
• NOTE: Mounting hardware for the header unit IS NOT INCLUDED.
`

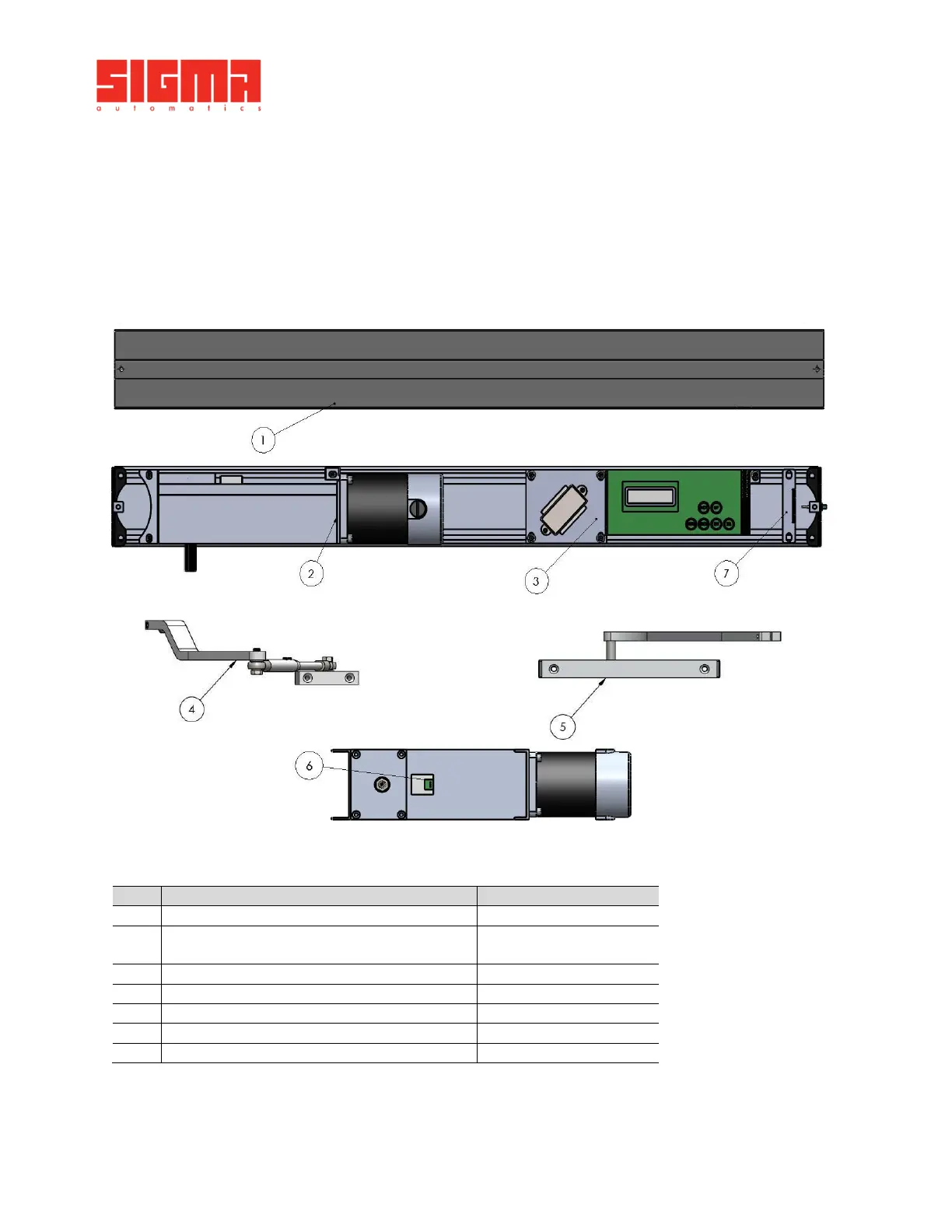

Figure 2-1 Part Identification
Parts list for surface mounted Single Swing Door Operator (SA300), see Appendix for other models.
No.
Description
Part Number
1
Operator cover and screws
SA-PH-001
2
Operator motor and gearbox
SA-PM01 (motor)
SA-PG01 (gearbox)
3
Operator control board and transformer
SA-PC01
4
Push Arm Kit
SA-PR01
5
Pull Arm Kit
SA-PR02
6
Encoder
SA-PG-011
7
L16 Connector bracket
SA-2716
