3 Mounting position

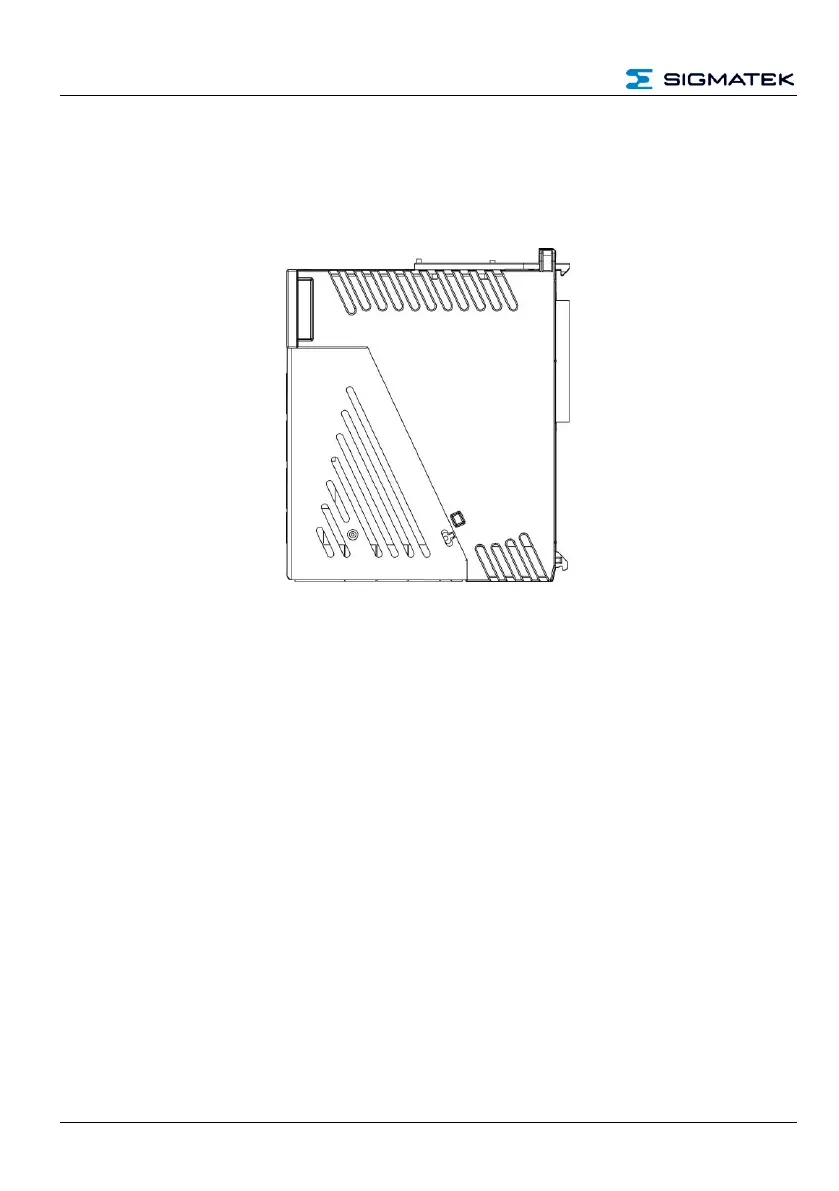

To ensure optimal cooling of the module, the CCP 611 must be mounted as shown (stand-
ing). For an angled mounting position, forced convection (cooling fan) must be used.
Top
Bottom
