SIGMATEK C-DIAS User Manual

C-DIAS PROCESSOR MODULE CCP 611
27.03.2020 Page 21

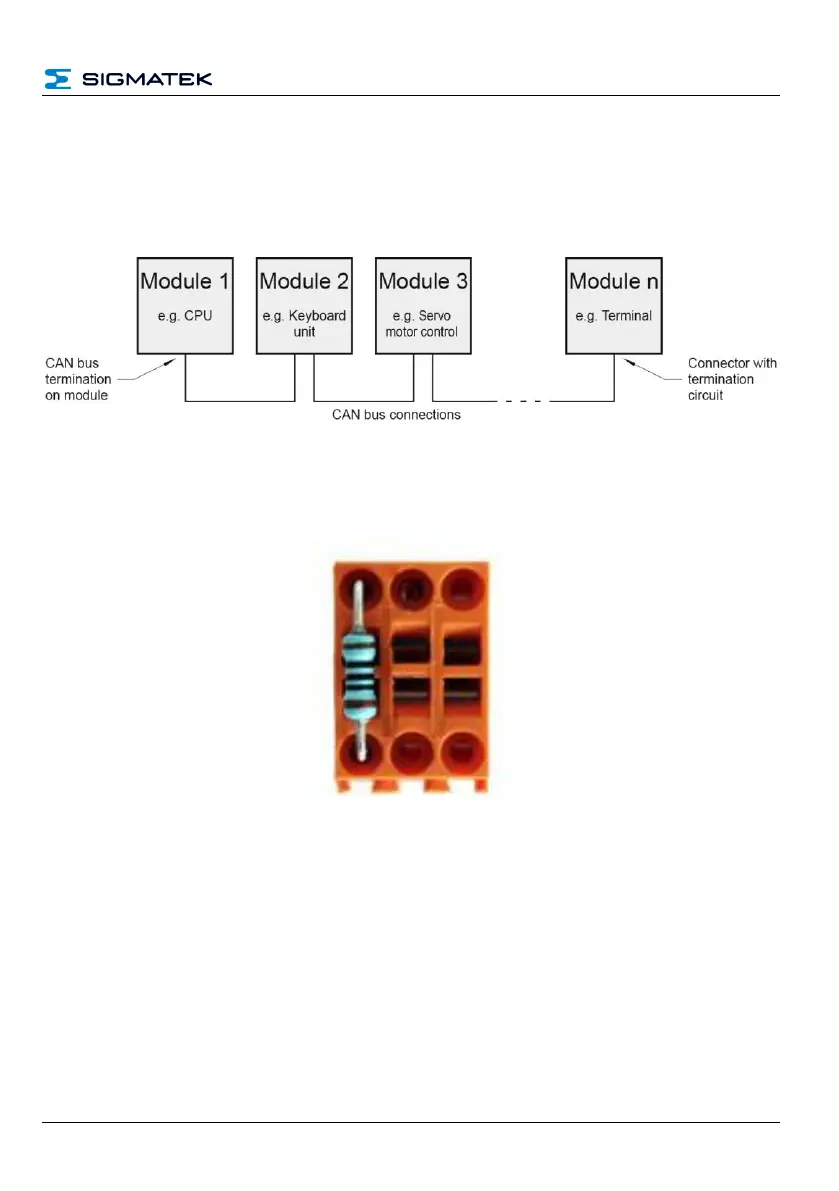

10 CAN Bus Termination
In a CAN bus system, both end modules must be terminated. This is necessary to avoid
transmission errors caused by reflections in the line.
If the CCP 611 processor module is an end module, it can be terminated by placing a 150-
Ohm resistor between CAN-A (Low) and CAN-B (High).
1x 150-Ohm resistor
