C-DIAS PROCESSOR MODULE
CCP 611
27.03.2020
Page
15
6

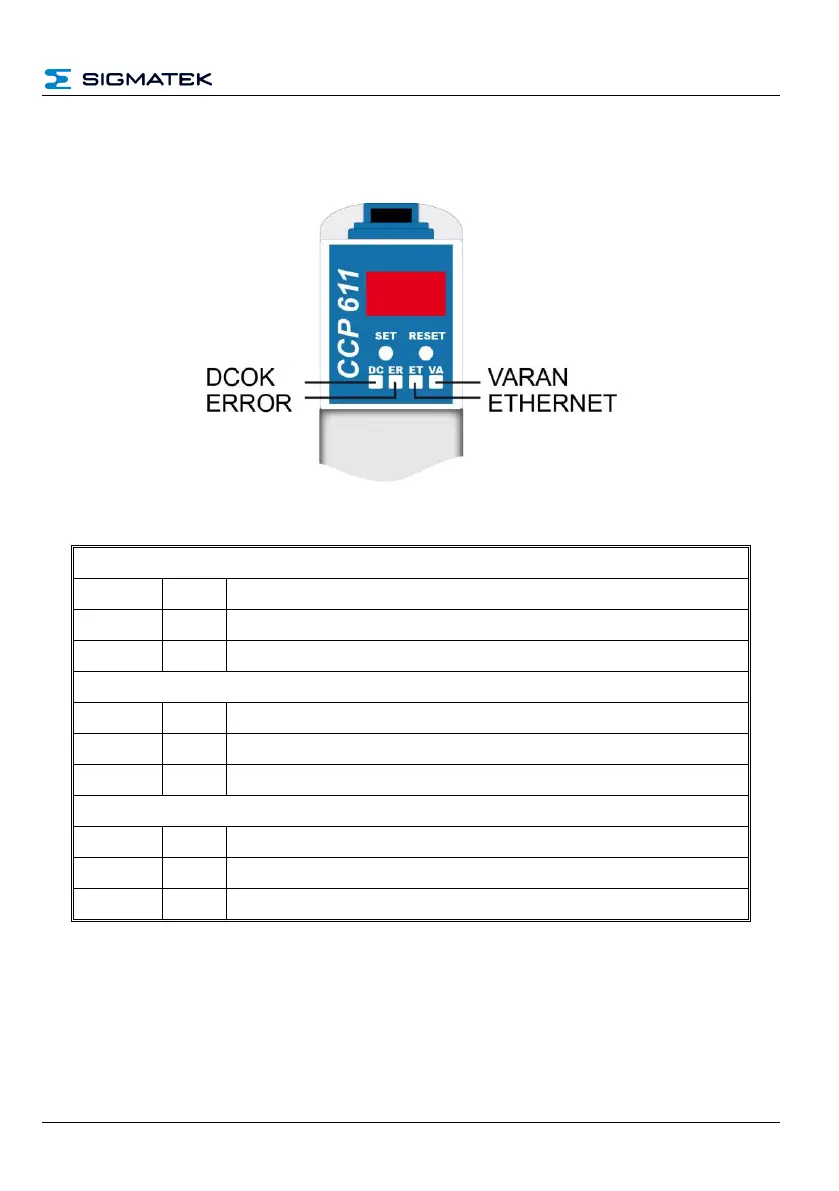

Status Displays
ETHERNET
LED
Color
Description
ACTIVE
Yellow
Lights when data is
exchanged over Et
hernet
LINK
Green
Lights when the co
nnection betw
een the two PHYs is
established
VARAN
LED
Color
Description
ACTIVE
Yellow
Lights when data is
exchanged over t
he VARAN bus
LINK
Green
Lights when the co
nnection between t
he two PHYs is est
ablished
Control
LED
Color
Description
ERROR
Red
Lights when an
error occurs (defecti
ve USV)
DCOK
Green
Lights when the p
ower supply is OK
16
18
Table of Contents
Default Chapter
4
Table of Contents
4
1 Technical Data
6
Performance Data
6
Electrical Requirements
7
Standard Configuration
7
Miscellaneous
8
Environmental Conditions
8
2 Mechanical Dimensions
9
3 Mounting Position
10
4 Connector Layout
11
Applicable Connectors
15
5 Exchanging the Microsd Card
16
6 Status Displays
17
7 Display
18
8 CAN Bus Setup
19
CAN Bus Station Number
19
Number of CAN Bus Participants
19
CAN Bus Data Transfer Rate
19
9 Configuration of the Process Module
20
10 CAN Bus Termination
23
11 Wiring and Mounting Instructions
24
Ground
24
Shielding
25
ESD Protection
25
12 Working with and on the CCP 611
25
13 Process Diagram
26
14 System Boot Checkpoints
27
15 Status and Error Messages
28
16 Application Exceptions
37
SRAM and IRQ Routines
37
SRAM and Consistency of Changed Data
37
The File System Does Not Support Safe Writing Via SRAM
37
Data Breakpoint
37
17 Note on SRAM Behavior
38
18 Recommended Shielding for VARAN
39
Wiring from the Control Cabinet to an External VARAN Component
40
Wiring Outside of the Control Cabinet
41
Shielding for Wiring Within the Control Cabinet
42
