C-DIAS PROCESSOR MODULE CCP 611
27.03.2020 Page 11

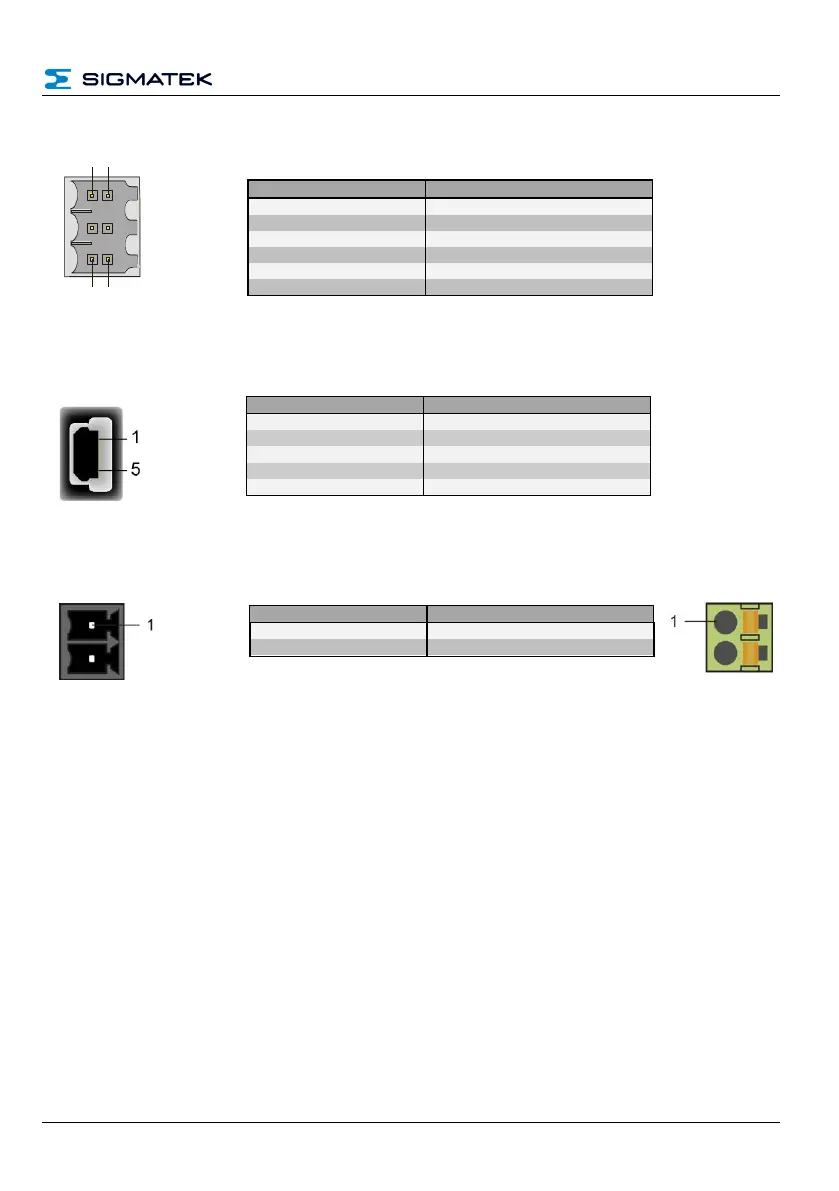

X5: CAN Bus
X1: USB Device 1.1
X6: Supply
Pin
Function
1
CAN A (CAN LOW)
2
CAN B (High)
3
CAN A (CAN LOW)
4
CAN B (High)
5
GND
6
n.c.
Pin
Function
1
+5 V
2
D-
3
D+
4
n.c.
5
GND
Pin
Function
1
+24 V supply
2
GND
1 2
65
