SIGNAL FIRE AI-9 User Manual

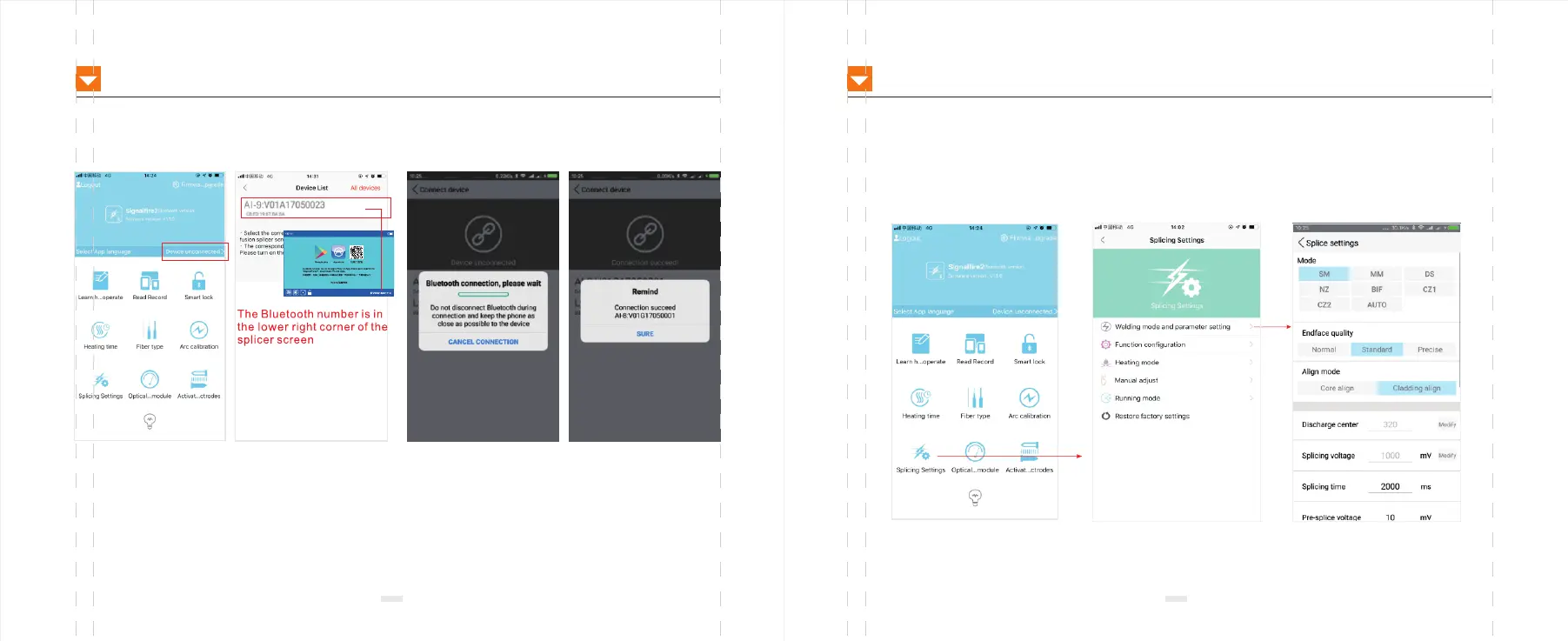

SOFTWARE BLUETOOTH CONNECTION
19
SCREEN MENU FUNCTION ON/OFF
⑥ login app account and
onnect bluetooth on splice,
click“ Device unconnected”.
⑦ Please select the corres
ponding splicer serial number
and click on ,if you can not find
the splicer seria umber, please
check whether the Bluetooth or
gps is turned on.
⑧ Connecting... ⑨ Connect successfully
Turn on the phone bluetooth, open the phone app, set the machine panel menu after establishing the
connection, and machine will update at the same time. The splicing operation does not require phones,
the phone App is only for machine menu settings, and splicer machine to store data.when the data is
exported to phone App, the users can also get support through the APP and after-sales service.
20
select and click save

SIGNAL FIRE AI-9 Specifications

General

Category	Fusion Splicer
Fiber Alignment	Core Alignment
Cutting Length	8-16mm
Interface	USB
Communication Interface	USB
Applicable Fibers	SM, MM, DS, NZDS
Splice Loss	0.02dB (SM)
Return Loss	>60dB
Typical Splice Time	9 seconds
Fiber Diameter	80-150μm
Power Supply	AC 100-240V
Monitor Fiber View	4.3 inch LCD
Operating Condition	-10°C to 50°C
Storage Condition	Humidity: 0-95%, Temperature: -20℃~+75℃
