OPERATION KEY COMBINATION FUNCTION
07
OPERATION KEY COMBINATION FUNCTION
08
08 Camera LED: X Y
09 RTC
10 Battery
11 HV-Discharge
12 Bluetooth
Camera LED:two
RTC
battery
HV-Discharge
Bluetooth
report an error,Please check whether the red light above the electrode is
bright and dim(see electrode replacement for specific operations)If the
fault persists,Please contact the after-sales service.
Report an error,please check again. If the error is still reported, please
contact after-sales service.
Replug and insert, check whether the battery contact is corroded, and
eliminate the bad contact;Try to activate the battery (see 3 activate the
battery for instructions) or replace the battery.If the error is still reported,
please contact after-sales service.
Check whether the electrode is installed incorrectly and whether there is
any debris affecting the discharge.Poor contact of electrode wiring.If the
error is still reported, please contact after-sales service.
If error reported, please contact after-sales service.
3.There are two different ways to activate the battery.
① The battery can be normally started up: after starting up, long press the X/Y key, after about 8 seconds, the
welding machine automatically shut down, and then plug in the adapter in the state of power off, and wait for 2 hours
before starting up to check.
② Battery cannot be normally started, can only plug the adapter to start up: after starting up, long press the X/Y
button, about 8 seconds after the buzzer will "tick" prompt, and then manually shut down, plug in the adapter in the
state of power off, wait 2 hours before starting the machine.
Usage: The welding machine has abnormal charging (not charging into the electricity, charging not enough
electricity, etc.); If the battery power is abnormal (the display is not accurate, the battery is not durable, the virtual
power, etc.), you can use this function to make the battery return to normal.
Note: it is better to remove and insert the battery before operation to check whether the battery contact is corroded
and eliminate the bad contact of the battery.

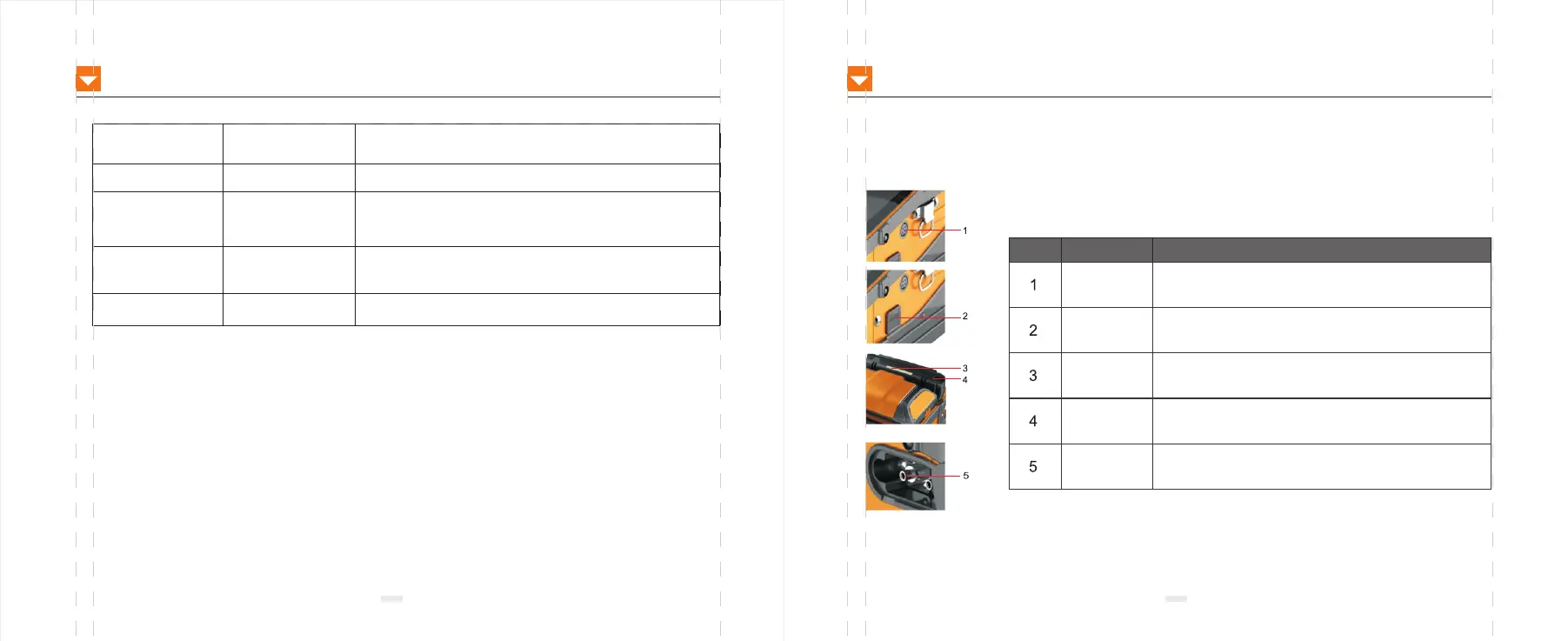

Function Description table
Serial
numbe
Name
Function Description
Power socket
Input voltage:13.5+0.5v; input current:4.8A
Battery pop-up
button
Press to remove the battery
Heating
indicator
The Heat Shrinkable Tube Is Finished Heating When The
Indicato Light Is Off
Heating oven
Put in the heat shrinkable tube close the cover and heat
automatically
Fiber optic
connector
Optical power input and VFL output interface
