SIGNODE BXT2-19
1
1
2
34
Fig. 4
Fig. 5
WARNING
Wearing safety glasses. Stand to one side of the
strap when tensioning. Make sure all bystanders
are clear before proceeding.

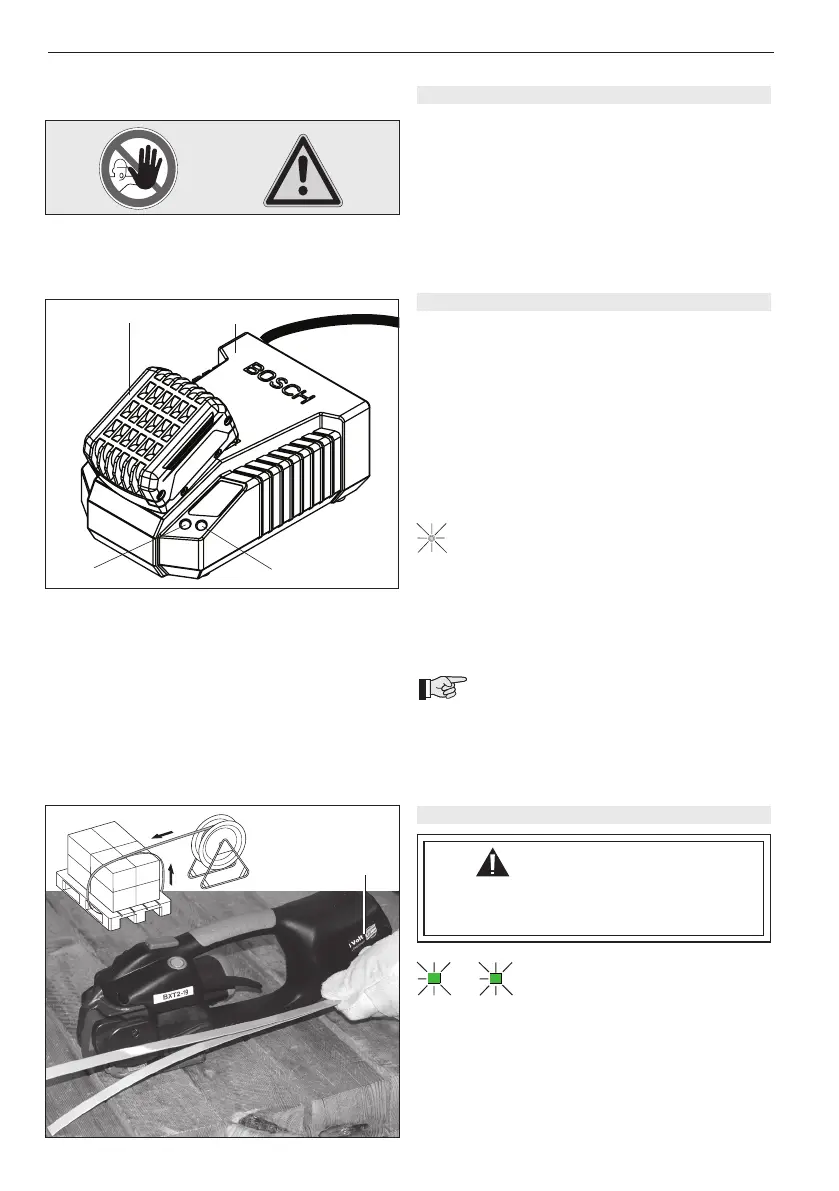

5 ORERATING INSTRUCTIONS
5.1 CHARGING THE BATTERY
– Connect battery charger AL 1860 CV (4/2) to mains
supply.
– Insert battery 18 V (4/1) into battery charger slot.
The charging process and error functions are indicated
by a green (4/3) and a red light (4/4).
For detailed information, refer to the operating instruc-
tions for the battery and battery charger.
Charging times:
– First charging of a new battery, min. 5 hr.
– Recharging of empty battery:
approx. 15 to 30 minutes
Continuous lighting of the green LED (4/3)
indicates that the battery is fully charged.
Themaximumchargingcurrentowswhenthetempe-
ratureofthebatteryisbetween15–40°C(59–104°F).
Avoidchargingthebatteryattemperaturesbelow0°C
(32°F)andabove40°C(104°F).Batterycanbecharged
at any time regardless of charging status!
If the battery is not to be used for a longer
period (several days), it should be remo-
ved from the tool and charged/stored in the battery
charger.
To remove battery from tool, pull out battery while pres-
sing button on battery.
+
AUT
O
MAN.
+
The operator is responsible for safe strapping and the
correct strap selection for the package, depending on its
dimensions, weight, edges and stability and the way it
will be transported and stored.
Onlythestrapdimensionsspeciedforthetooltype
(page 7) should be used. The tool should be adjusted ap-
propriately for the strap used and the package (chapters
5.5/ 5.7/ 5.9). The operator is responsible for the correct
tool settings.
5.2 OPERATING THE TOOL
This description assumes that the
mode of operation is adjusted to
„Semi-Auto“ (refer to chapter 5.8).
– Insert charged battery (5/1) into strapping tool.
– Place strap round goods to be packaged, so that the
straps lie one above the other on top of package. The
start of the strap is underneath. Hold the straps with
the left hand so that the strap start projects approxima-
tely 20 cm (8“) out of the hand.
