SIGNODE BXT3-32
5.3 Setting the strap width
The tools can be operated with the following strap widths:
● BXT3-32: 32 or 25 mm (1
1
/
4
″ or 1″)
5.3.1 BXT3-32: Change strap width from 25 mm to 32 mm (1″
to 1
1
/
4
″)
Required parts Order number
Strap guide rear 32 mm (1
1
/
4
″) (8) 1832.041.026

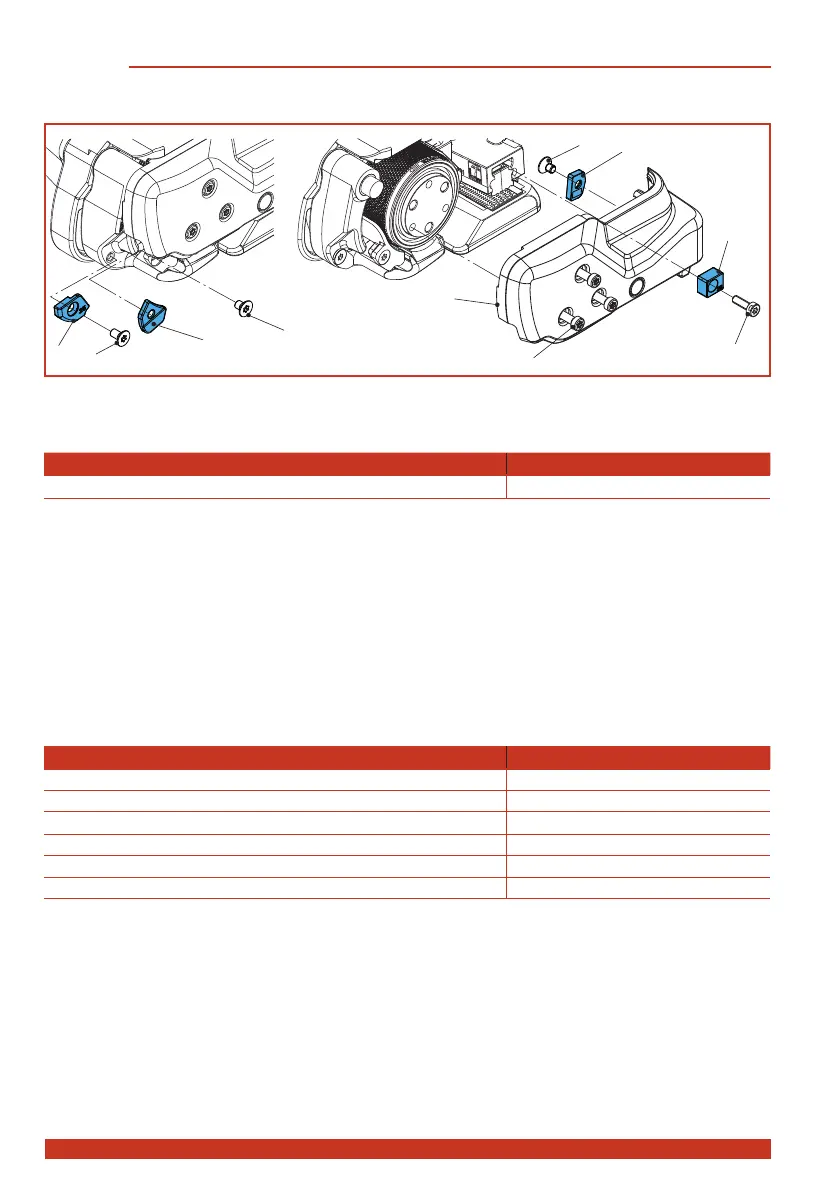

► Remove battery from tool. Remove three cylinder screws Torx (6). Lift rocker lever towards the
handle, remove cylinder screw Torx (7) and strap guide rear 9 mm (
3
/
8
″) (8).
► Remove side cover (5).
► Remove counter-sunk screw Torx (2) and strap guide front 25 mm (1).
► Remove counter-sunk screw Torx (4) and strap guide front 25 mm (3).
► Remove counter-sunk screw Torx (10) and strap guide rear 25 mm (9).
► Fit side cover (5) (secure cylinder screw with Loctite 222). Install strap guide rear 32 mm (8).
BXT3-32: Change from 32 mm to 25 mm (1
1
/
4
″ to 1″)
Required parts Order number
Strap guide front 25 mm (1″) (1) 1832.042.070
Strap guide front 25 mm (1″)(3) 1832.042.071
Strap guide rear 25 mm (1″) (8) 1832.041.025
Strap guide rear 25 mm (1″) (9) 1832.042.074
Counter-sunk screw Torx, M4x6 (2) (4) (10) 1912.204.064
Cylinder head screw Torx, M4x20 (7) 1913.904.204
► Remove battery from tool. Remove three cylinder head screws Torx (6). Lift rocker lever towards
the handle, remove cylinder head screw Torx (7). Remove side cover (5).
► Fit strap guide front 25 mm (1) (secure counter-sunk screw (2) with Loctite 222).
► Fit strap guide front 25 mm (3) (secure counter-sunk screw (2) with Loctite 222).
► Fit strap guide rear 25 mm (9) (secure counter-sunk screw (10) with Loctite 222).
► Fit side cover (5) (secure cylinder head screws with Loctite 222). Install strap guide rear 25 mm
(8).
1
2
4
5
6
7
10
9
8
3
