AP04
Installation English
AP04 · Date 19.05.2016 · Art. No. 84211 · Mod. status 154/16
29
1
Bus IN
2
Bus OUT
3
PE connection

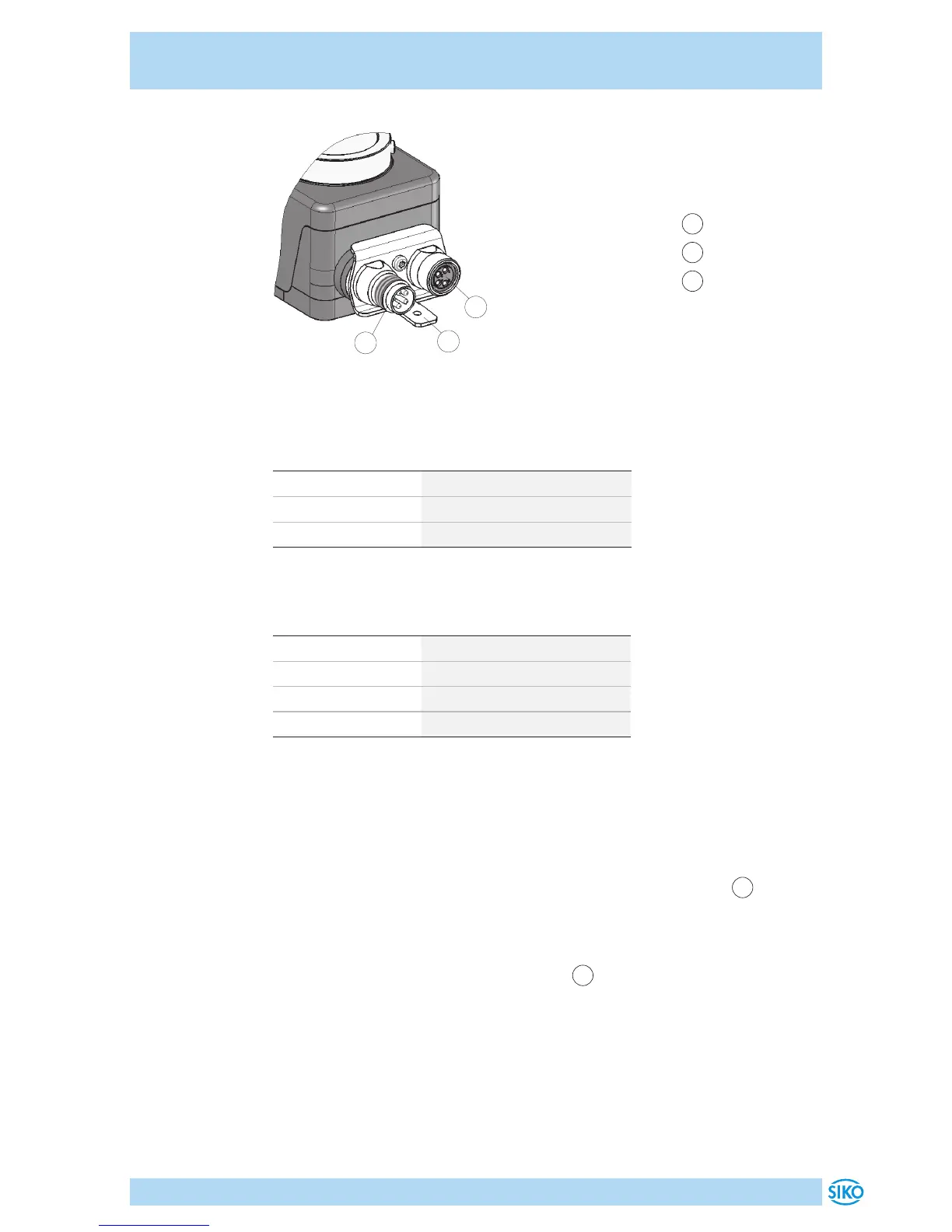

Fig. 6: Pin assignment
Data transfer RS485 interface
RS485 baud rate max. bus network length
115.2kbit/s 200m
57.6kbit/s 400m
19.2kbit/s 1200m
Data transfer CAN interface
CAN baud rate max. bus network length
125kbit/s 320m
250bit/s 160m
500bit/s 80m
1Mbit/s 40m
Strand cross sections of lines ≥0.14 ... ≤0.5mm².
Earthing connection (PE)
For protection against interference, the screens of the signal lines and the
power line must be connected on both sides. Potential dierences cause
inadmissible currents on the screen. Install the PE connection
3
onto the
protective earth conductor potential between the plug connectors (see
Fig. 6). Use 6.3mm flat connectors with short strands 2.5 … 4mm² (not
in the scope of delivery). For multiple position indicators we recommend
connecting the earthing to a ground bar
1
(see Fig. 7).
