AP04
Installation English
AP04 · Date 19.05.2016 · Art. No. 84211 · Mod. status 154/16
28

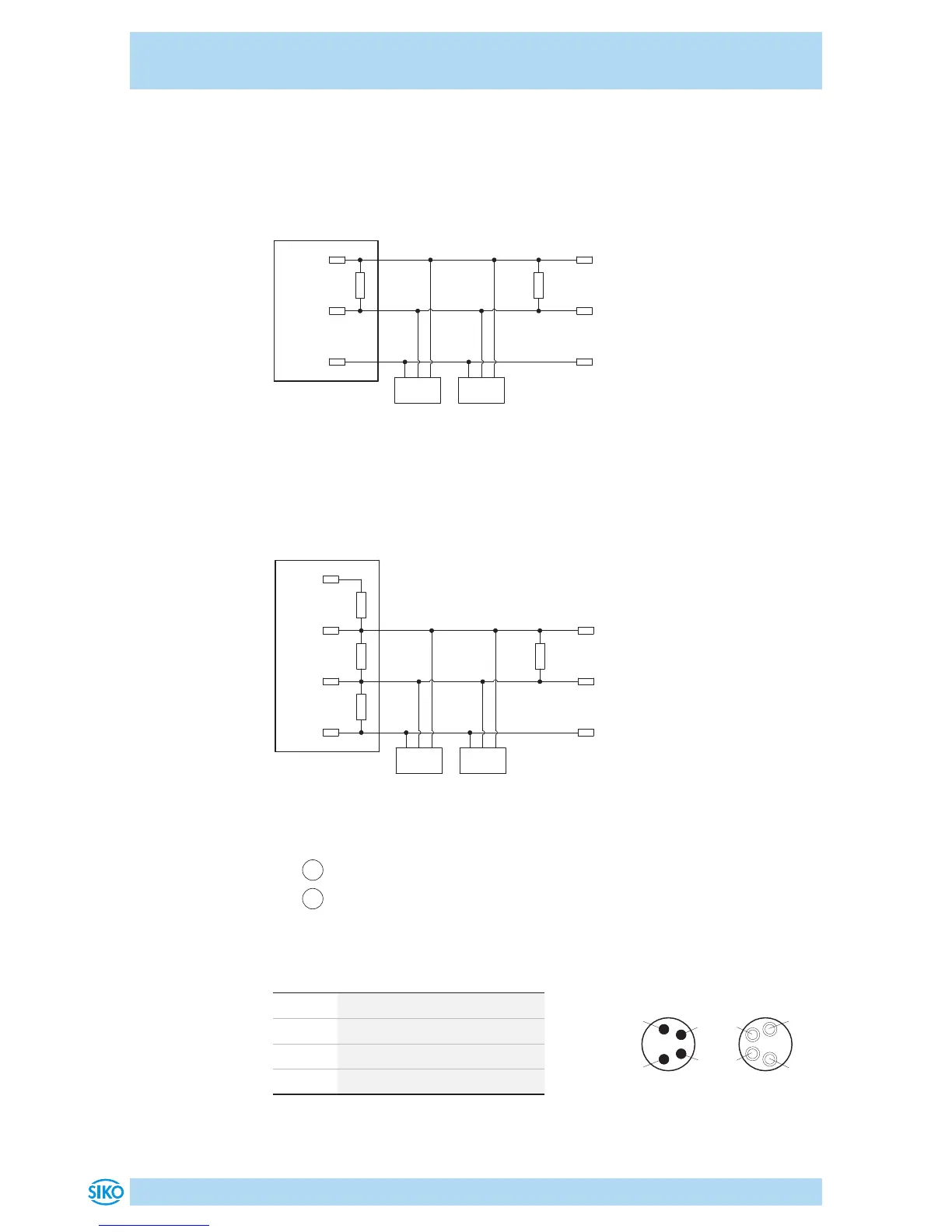

Termination CAN
A terminating resistor (120Ohm) is required for the fieldbus function,
which must be included at the last bus subscriber between CANH and
CANL.
Fig. 4: Termination CAN
Termination and level specification RS485
If termination and level specification do not occur in the bus master, they
must be carried out externally.
Fig. 5: Termination and level specification RS485
Pin assignment
•
1
Bus IN: Pin 4 pin M8 (see Fig. 6).
•
2
Bus OUT: Female 4 pin M8 (see Fig. 6).
For mating connector and cable extension accessories see chapter 8.
PIN Designation
1 DÜB/CANL
2 DÜA/CANH
3 +UB
4 GND
viewing side = plug-in side
Bus OUT
Bus IN
