AP04
Commissioning English
AP04 · Date 19.05.2016 · Art. No. 84211 · Mod. status 154/16
30

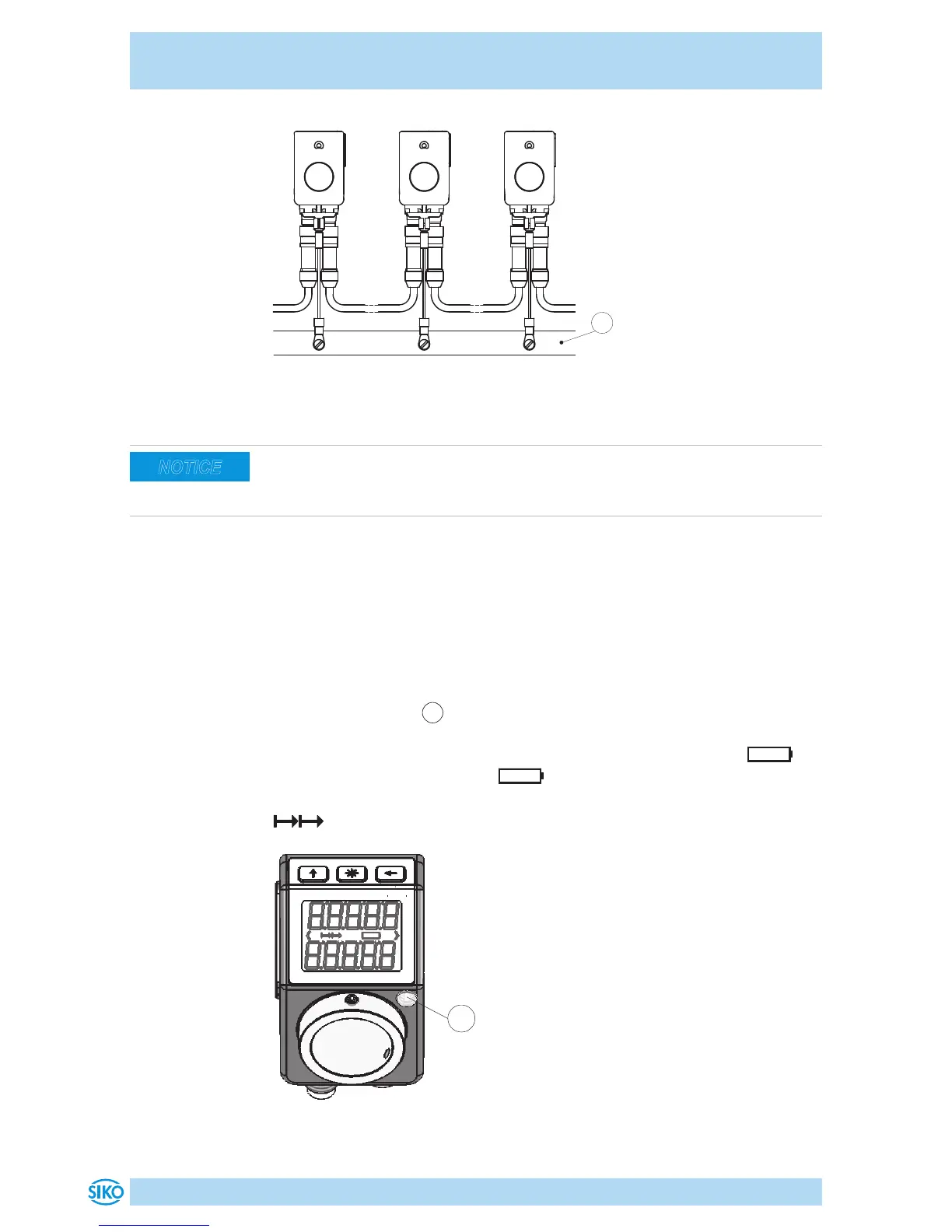

Fig. 7: Ground bar
Admissible power input
Supply for the position indicator shall be sized suciently. Current draw is
temporarily higher than nominal current at the moment of switching on.
For the supply value refer to the technical data in chapter 9.
5 Commissioning
Display and control keys
The position indicator has a two-line display with special characters and
three control keys. The keys serve for position indicator parameterization
and control. An LED
1
serves for positioning monitoring. In the basic
state (factory setting), the 1st line displays the actual value and the 2nd
line the set point. With a critical battery status, the special sign
blinks, with an empty battery, glows permanently. With incre-
mental measurement switched on, the incremental measurement symbol
is displayed.
Fig. 8: Operating elements
NOTICE
