Silca Speed - Main Working Parts Identification; Labeled Machine Components

1.1 Main working parts

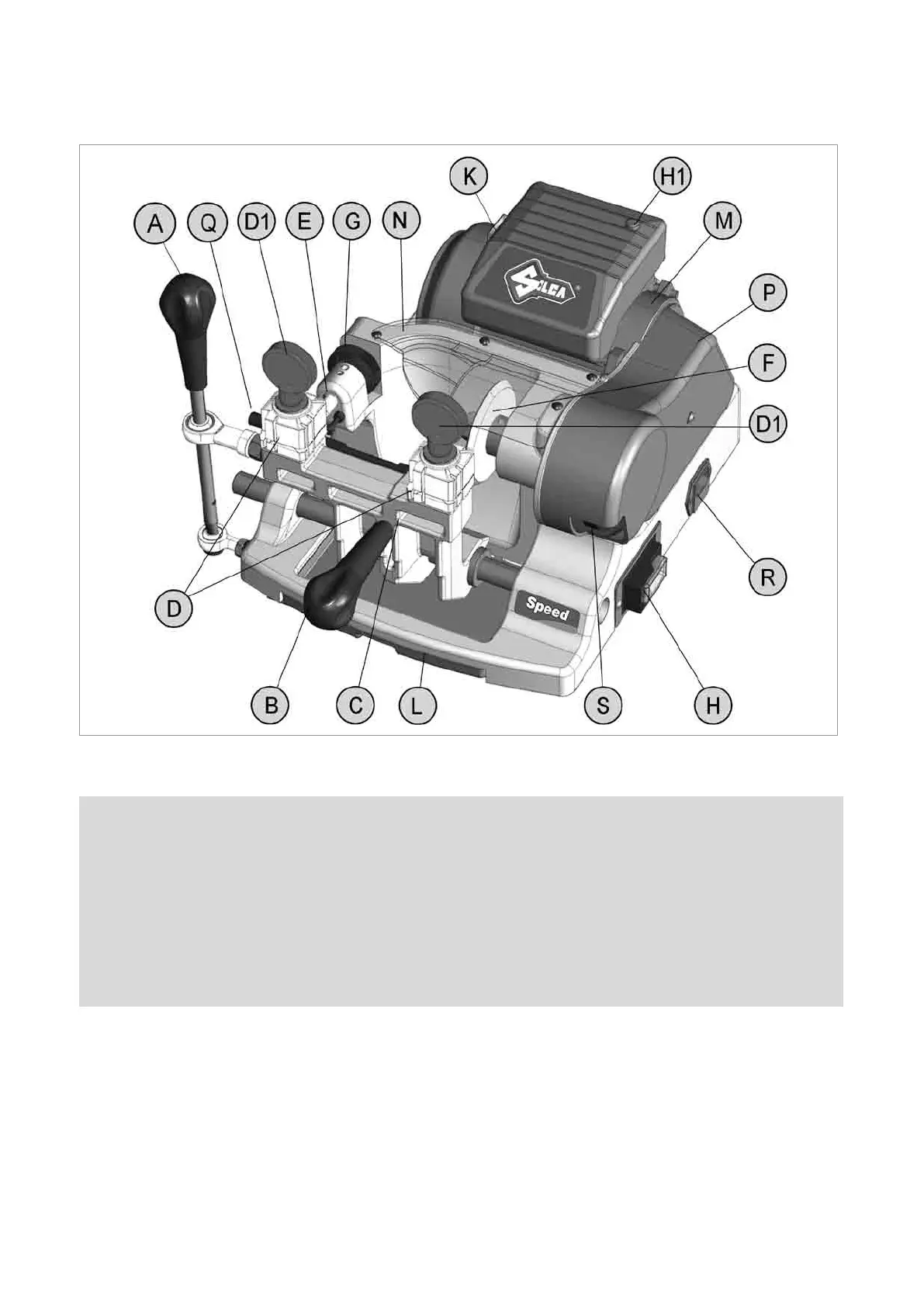

Fig.5
A - carriage movement lever
B
- carriage handle lever
C
- clamp carriage
D
- clamps
D1
- clamp knobs
E
- tracer point
F
- cutting tool
G
- tracer point ring nut
H
- main switch
H1
- warning light (power)
K
- motor start switch
L
- swarf tray
M
- motor
N
- cutting tool cover
Q
- gauges knob
P
- brush/belt cover
R
- power supply socket
S
- brush
