Silca Speed - Cutting Operations: Clamp Setup; Clamp Rotation and Key Securing

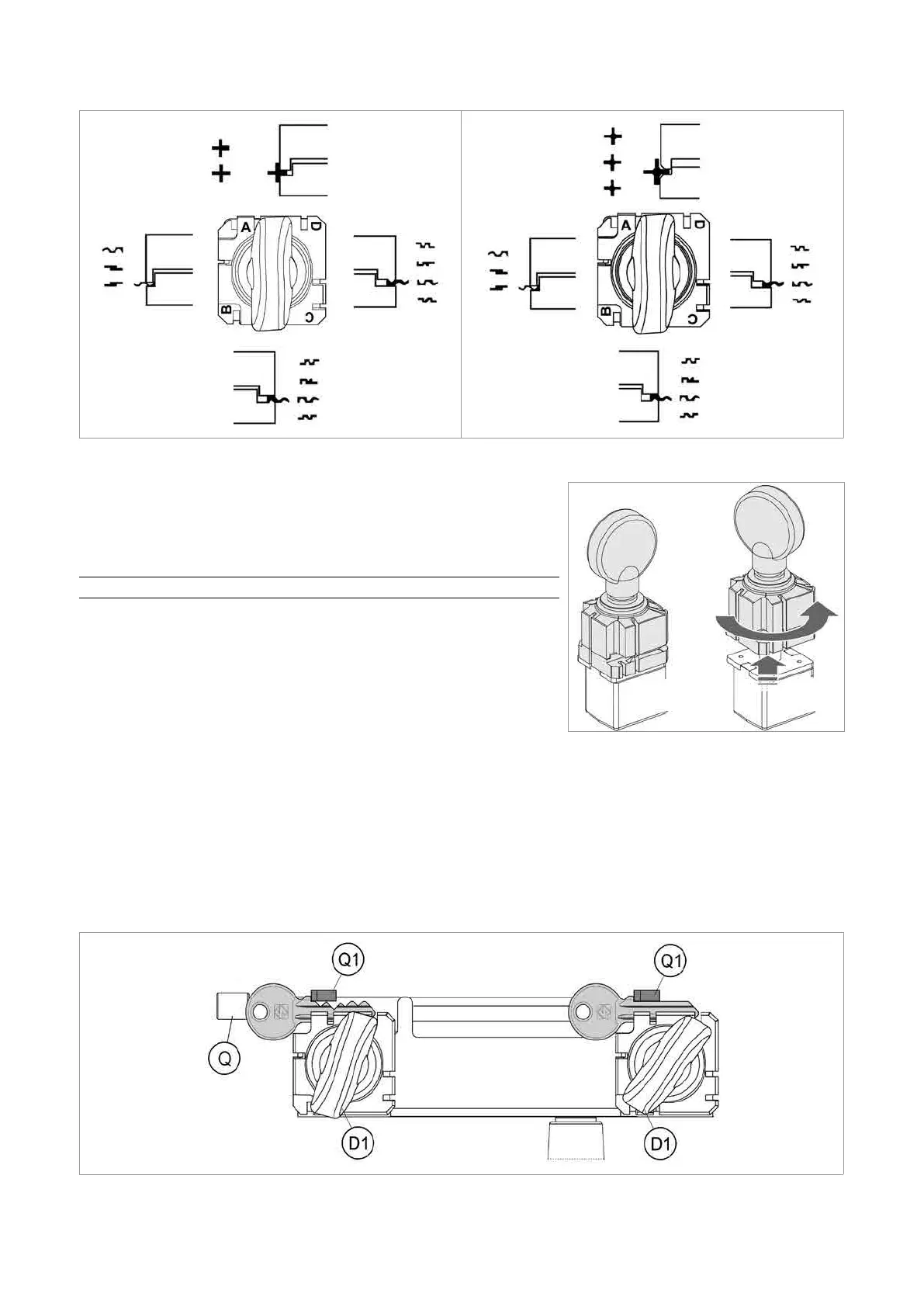

Fig.19 - 230V version Fig.20 - 120V version
5.1.1 Clamp rotation
1) Loosen the clamp closing knob by a few turns.
2) Raise the clamp (both jaws) and turn so that the required side is
facing the tracer point and cutter.
NOTE: carry out the operation for both clamps.
Fig.21
5.1.2 Securing the keys in the clamps
1) Position the original key (left-hand jaw) and key blank (right-hand jaw), ensuring that:
a) the keys are well positioned and secured in the clamp;
b) the key stop is resting against the calibration tab (Q1) (Fig.22);
2) Secure the keys by closing the clamps with the knobs.
3) Lower the gauge rod by turning knob (Q).
Fig.22
Operating manual SPEED
Copyright Silca 2013
16
