6.11 Replacing the condenser
ATTENTION: remove the mains plug.

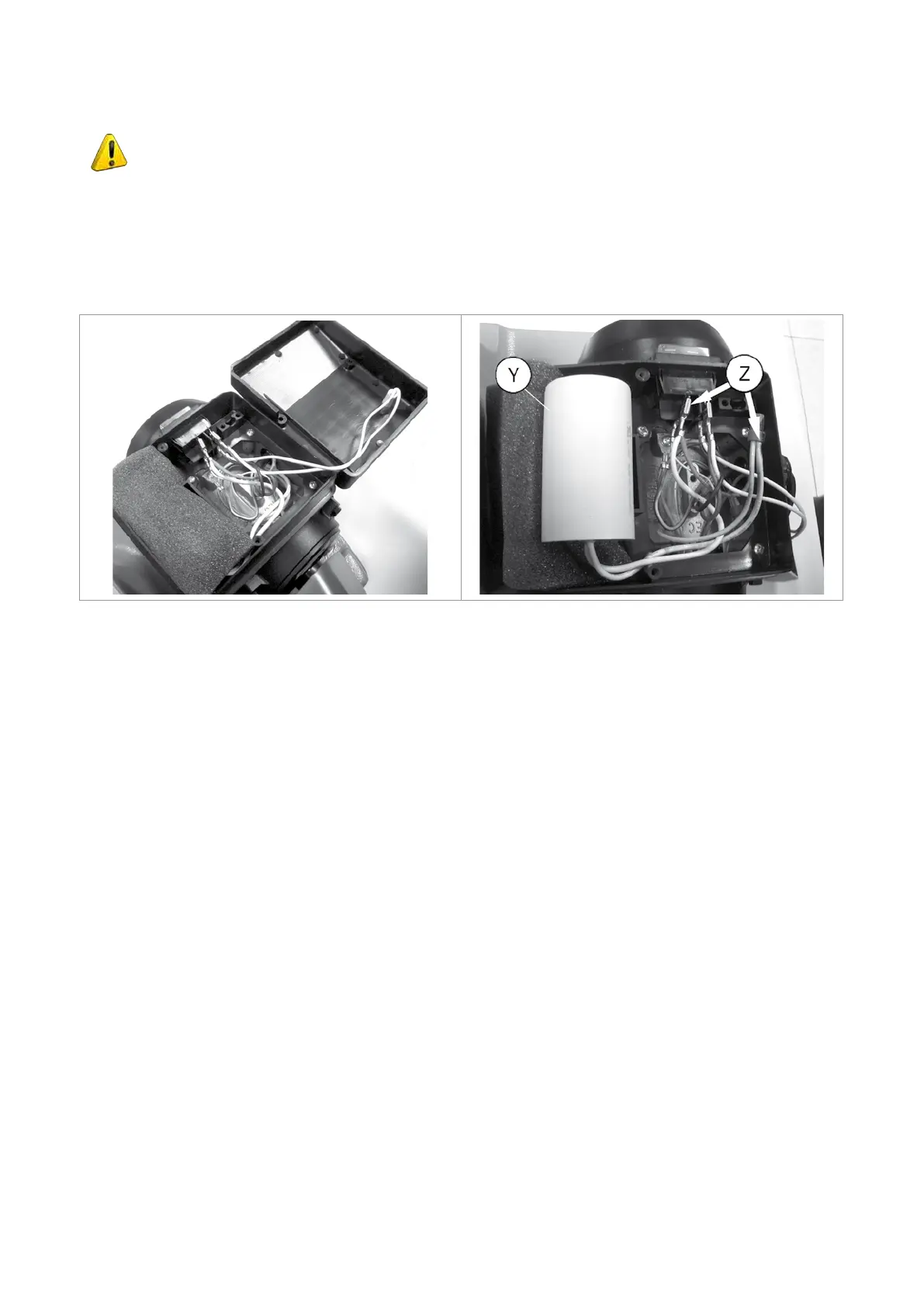

1) Loosen the 2 screws (M2) and remove the motor cover (Fig.45).
2) Detach the connectors (Z) paying special attention to their position.
3) Remove the condenser (Y).
4) Fit the new condenser.
5) Re-place the motor cover and secure with the 2 screws (M2).
Fig.47 Fig.48
