Silca Speed - Tracer Point Adjustment; Tracer Point Adjustment for Cut Depth

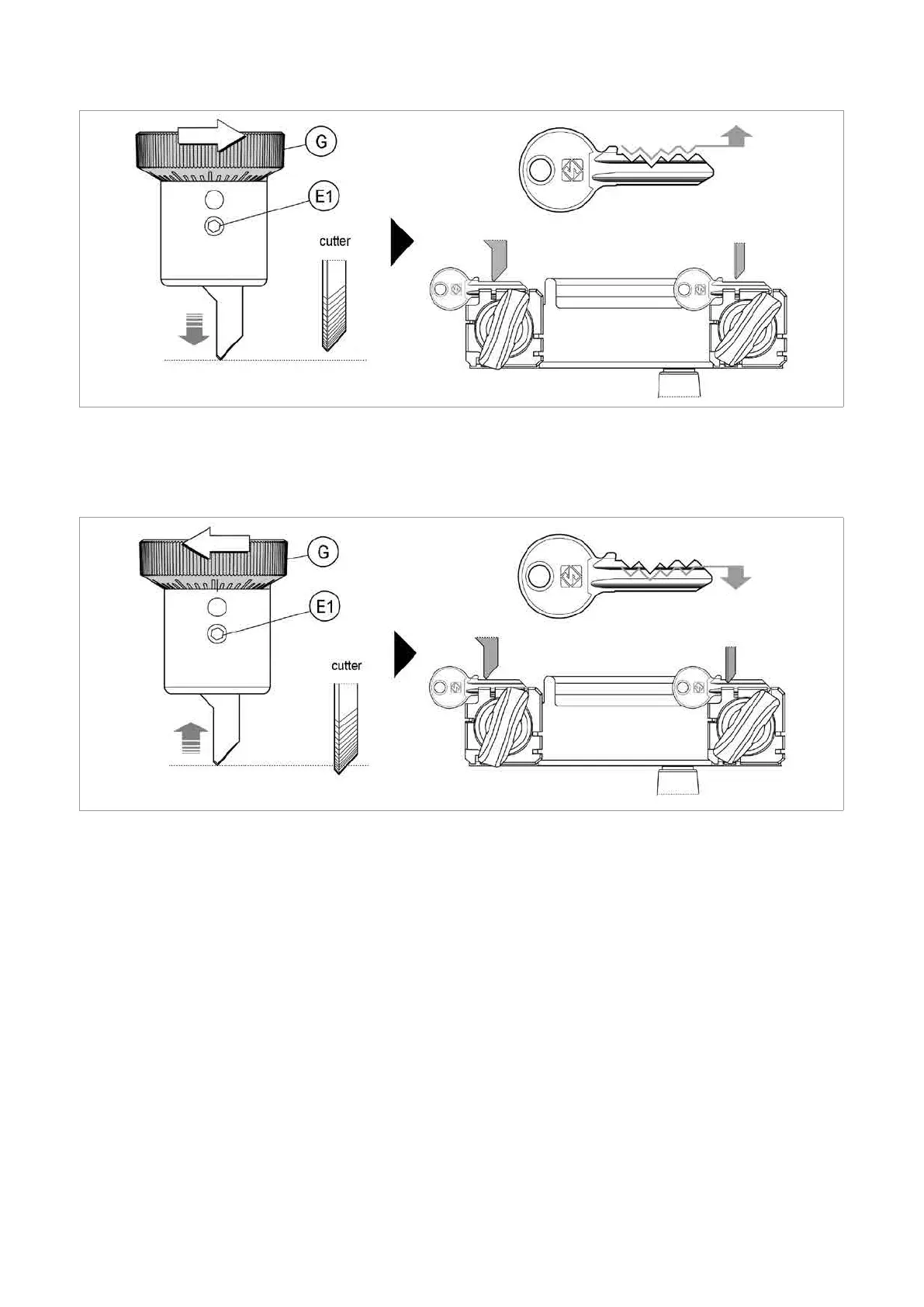

Fig.16
• Turn the nut to the RIGHT (clockwise) to take the tracer point down. Result: LESS DEEP CUTS.
Fig.17
• Turn the nut to the LEFT (anticlockwise) to take the tracer point up. Result: DEEPER CUTS.
