Silca Speed - Maintenance: Motor Replacement Details; Motor Replacement: Connections and Covers

14) Pass the motor cable through the grommet (M3).
15) Connect the 2 connectors (H2) to the switch (H) and secure the earthing wire to its screw with a nut (T1).
16) Replace and secure the metal bottom (W) (chap.6.6).
17) Replace the protective cover (P) and secure with the 3 screws (P1).

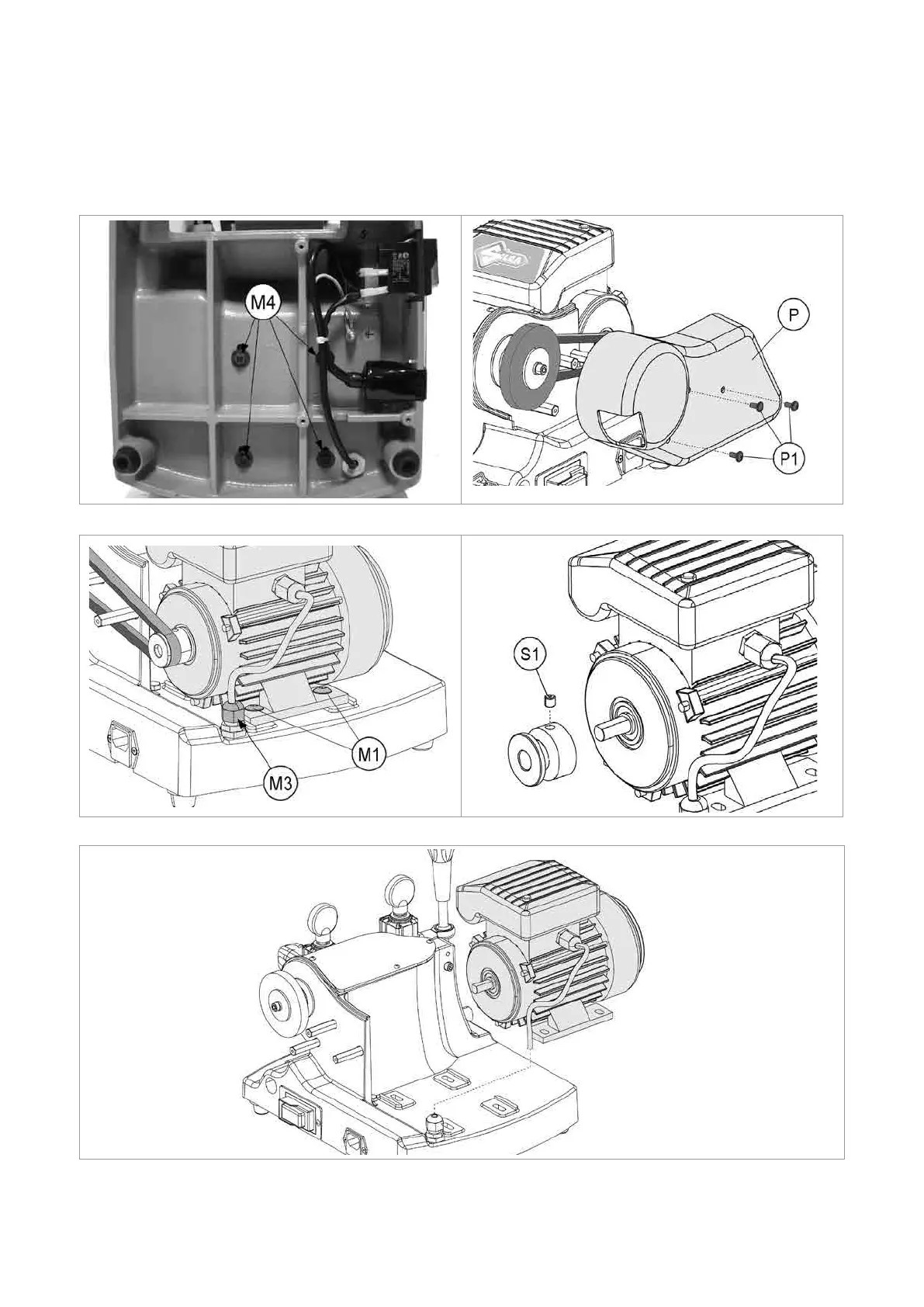

Fig.39 Fig.40
Fig.41 Fig.42
Fig.43
Operating manual SPEED
Copyright Silca 2013
24
