GDM-5411
3 When one side of the rubber cap is
separated from the anode button, the
anode-cap can be removed by turning
up the rubber cap and pulling up it in the
direction of the arrow c.
• HOW TO HANDLE AN ANODE-CAP
1 Don’t scratch the surface of anode-caps with sharp shaped
material!
2 Don’t press the rubber hardly not to damage inside of anode-
caps!
A material fitting called as shatter-hook terminal is built in the
rubber.
3 Don’t turn the foot of rubber over hardly!
The shatter-hook terminal will stick out or damage the rubber.
• REMOVAL OF ANODE-CAP
NOTE: Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon painted on the CRT, after
removing the anode.
• REMOVING PROCEDURES
1 Turn up one side of the rubber cap in
the direction indicated by the arrow a.
2 Using a thumb pull up the rubber cap
firmly in the direction indicated by the
arrow b.

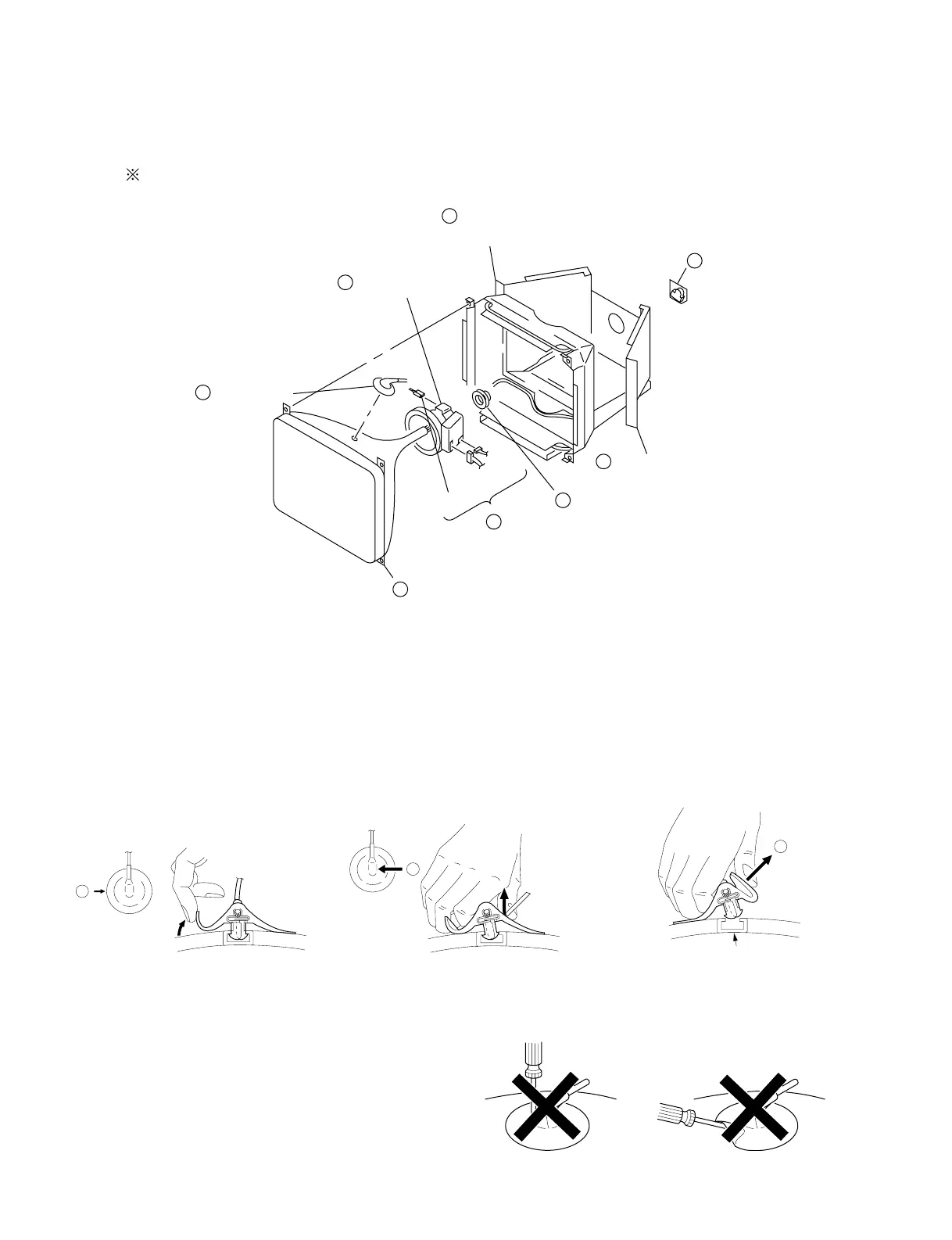

2-9. PICTURE TUBE REMOVAL
a
b
c
Anode Button
2-5
Open the D block
(Refer to 2-2.)
GND
CN5
CN4
A board
Open the G block
(Refer to 2-3.)
Neck assembly
Deflection yoke
Picture tube
Three connectors
Anode cap
1
2
3
4
5
7
8
6
Remove the bezel assembly. (Refer to 2-7)
To Next Page
