GDM-5411
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

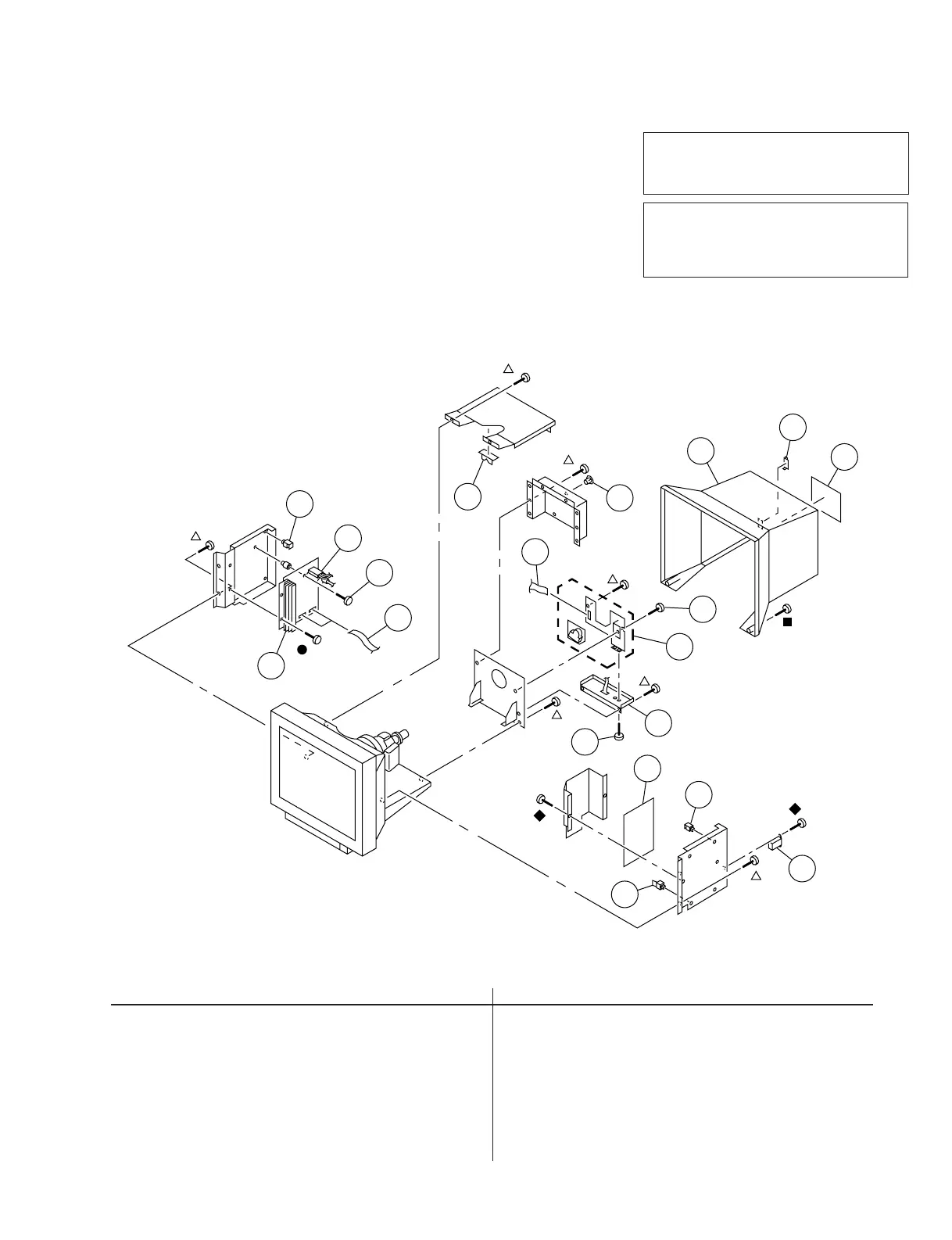

6-1. CHASSIS
z 7-685-648-79 +BVTP 3X12
x 7-685-663-71 +BVTP 4X16
7-685-646-79 +BVTP 3X8
f 7-685-881-09 +BVTT 4X8
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-1
SECTION 6
EXPLODED VIEWS
1 * A-1346-827-D D BOARD, COMPLETE 2
2 0 X-4560-175-1 TRANSFORMER ASSY, FLYBACK
(NX-4502//J1D4)
3 4-062-115-01 SCREW +P 3.5X20 TYPE2
4 4-389-025-11 SCREW (M4) (EXT TOOTH WASHER)
5 * 3-701-903-11 HOLDER, PRINTED CIRCUIT BOARD
6 4-070-730-01 HOLDER, PRINTED CIRCUIT BOARD
7 * A-1316-443-B G BOARD, COMPLETE
8 0 1-251-382-31 INLET, AC 3P (WITH NOISE FILTER)
9 4-070-122-01 SCREW (HD15)
10 1-694-561-11 TERMINAL BOARD ASSY, I/O
11 * A-1298-874-E A BOARD, COMPLETE
12 1-900-246-08 CONNECTOR ASSY (F)
13 1-900-250-06 CONNECTOR ASSY (F)
14 *4-069-570-01 SPACER, PRINTED CIRCUIT BOARD
15 4-070-623-21 CABINET
16 * 4-060-358-82 COVER, ECS
17 4-073-801-01 LABEL, INFORMATION [NH]
17 4-073-801-11 LABEL, INFORMATION [SH]
18 *4-063-711-01 SUPPORT, HV CABLE
10
11
4
1
12
18
2
13
3
14
15
5
5
16
6
17
7
8
9
x
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
