GDM-5411
60
70
83
51
61
71
52
62
72
79
53
63
73
54
64
74
55
65
75
56
66
76
77
57
67
80
58
68
81
59
69
78
82

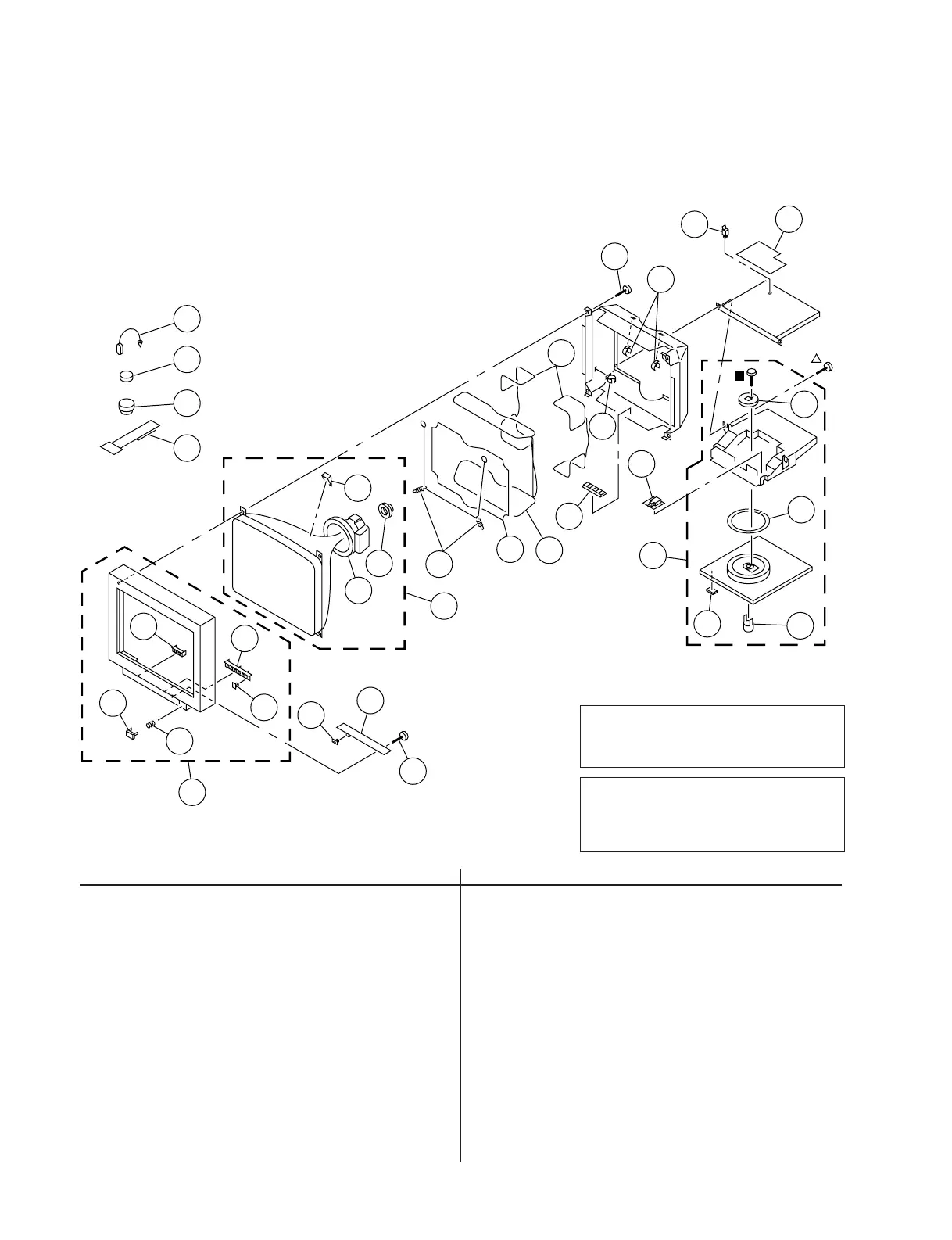

6-2. PICTURE TUBE
x 7-685-663-71 +BVTP 4X16
f 7-685-881-09 +BVTT 4X8
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-2
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
51 X-4037-387-1 BEZEL ASSY 52-56
52 4-070-736-11 BUTTON, POWER
53 4-042-593-01 SPRING, COMPRESSION
54 4-070-737-01 GUIDE, LIGHT
55 4-070-742-11 BUTTON, MULTI
56 4-070-763-11 BUTTON, RESET
57 4-070-764-11 CAP, INPUT SELECTION SWITCH
58 * A-1372-632-A H BOARD, COMPLETE
59 4-029-432-01 SCREW (3X12), (+) BVWHTP
60 0 8-738-813-61 ITC ASSY (21TKC-R1) [NH] 61-63
60 0 8-738-821-61 ITC ASSY (21TKC-RS1) [SH] 61-63
61 0 8-451-509-11 DEFLECTION YOKE (Y21TKM-M)
62 0 1-452-912-61 NECK ASSEMBLY (NA-2914)
63 2-162-100-21 SPACER, DEFLECTION YOKE
64 *4-047-316-01 SPRING, EXTENSION
65 0 1-419-130-21 COIL, LANDING CORRECTION
66 0 1-419-128-21 COIL, DEGAUSSING
67 0 1-419-129-21 COIL, LANDING CORRECTION
68 4-062-670-01 SPACER, PICTURE TUBE
69 4-365-808-01 SCREW (5), TAPPING
70 4-070-730-01 HOLDER, PRINTED CIRCUIT BOARD
71 * A-1394-980-A N BOARD, COMPLETE
72 * A-1388-250-B J BOARD, COMPLETE
73 X-4037-388-1 STAND ASSY 74-77
74 4-061-396-01 STOPPER (A)
75 4-063-397-01 RING, TILT SWIVEL
76 * 4-061-996-01 CUSHION
77 4-070-735-02 STOPPER (B)
78 4-041-021-02 HOLDER, DEGAUSE COIL
79 4-071-175-01 HOLDER, DGC
80 4-308-870-00 CLIP, LEAD WIRE
81 1-452-032-00 MAGNET, DISK: 10mmφ
82 1-452-094-00 MAGNET, ROTATABLE DISK: 15mmφ
83 4-051-736-21 PIECE A (90), CONV. CORRECT
