2.2 Mounting Stand Installation and
Placement
Two mounting stands are available with the Blower.
• Benchtop
• In-tool
Benchtop Stand

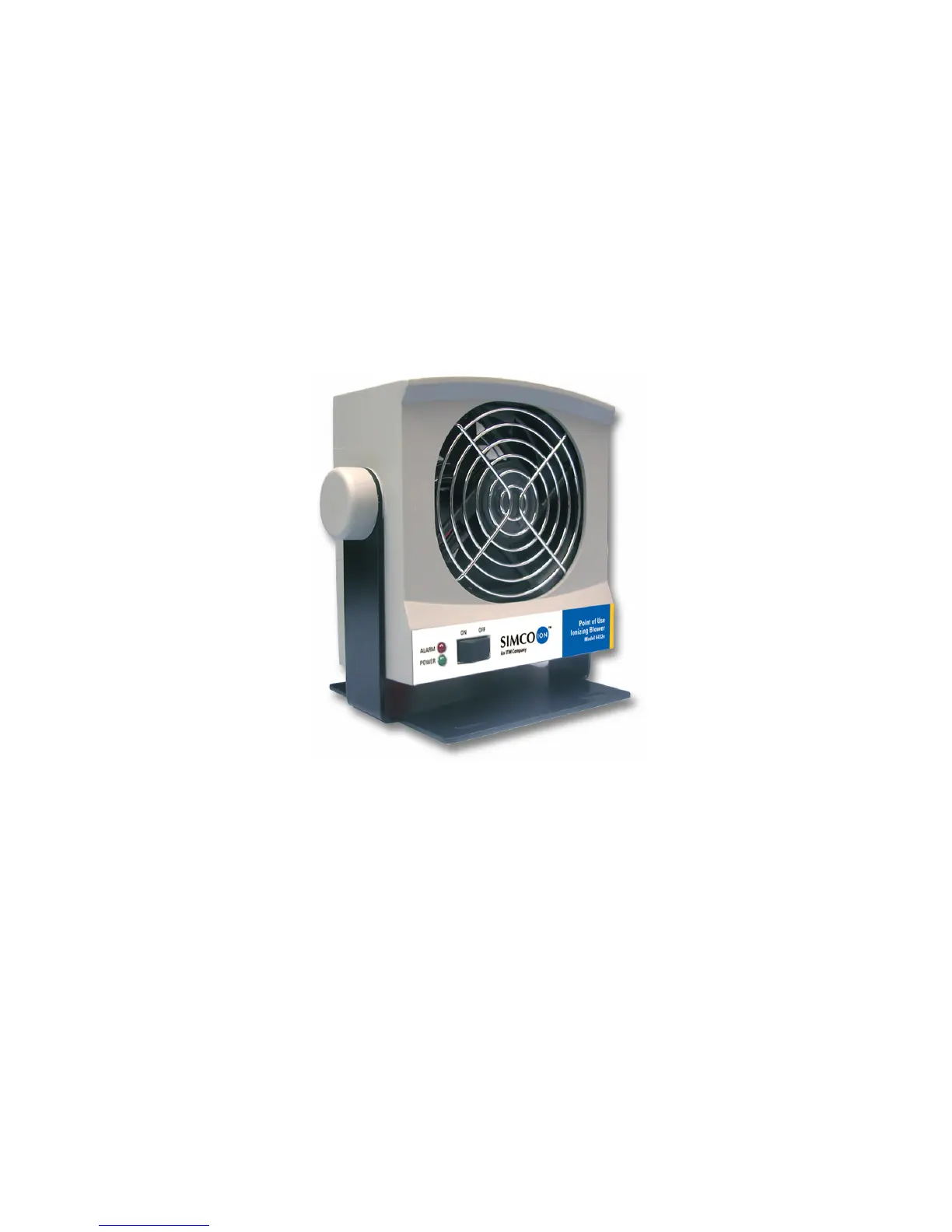

Figure 4. Benchtop Stand
1. Fasten the Blower to the mounting stand using the molded
knobs supplied with the chassis.
2. To adjust the stand, loosen the side knobs on the Blower and
adjust the Blower to the appropriate angle.
3. Re-tighten the knobs to secure the Blower in place.
4. Aim the Blower so that its airflow travels directly to your target.
