19-6432-M-01 Rev 4 13
2.3 Mounting Stand Knob Replacement
The standard knobs on the mounting stand may be replaced with
the truss head screws that are packaged with the Blower if desired.
The screws allow for an improved grip on the mounting stand as
they can be tightened down using a standard Phillips screwdriver.
To install the screws:
1. One side at a time, unscrew and remove the knobs from the
sides of the Blower.
2. Thread the machine screws through the mounting stand and
into the chassis. Use a Phillips screwdriver to tighten the
screws.

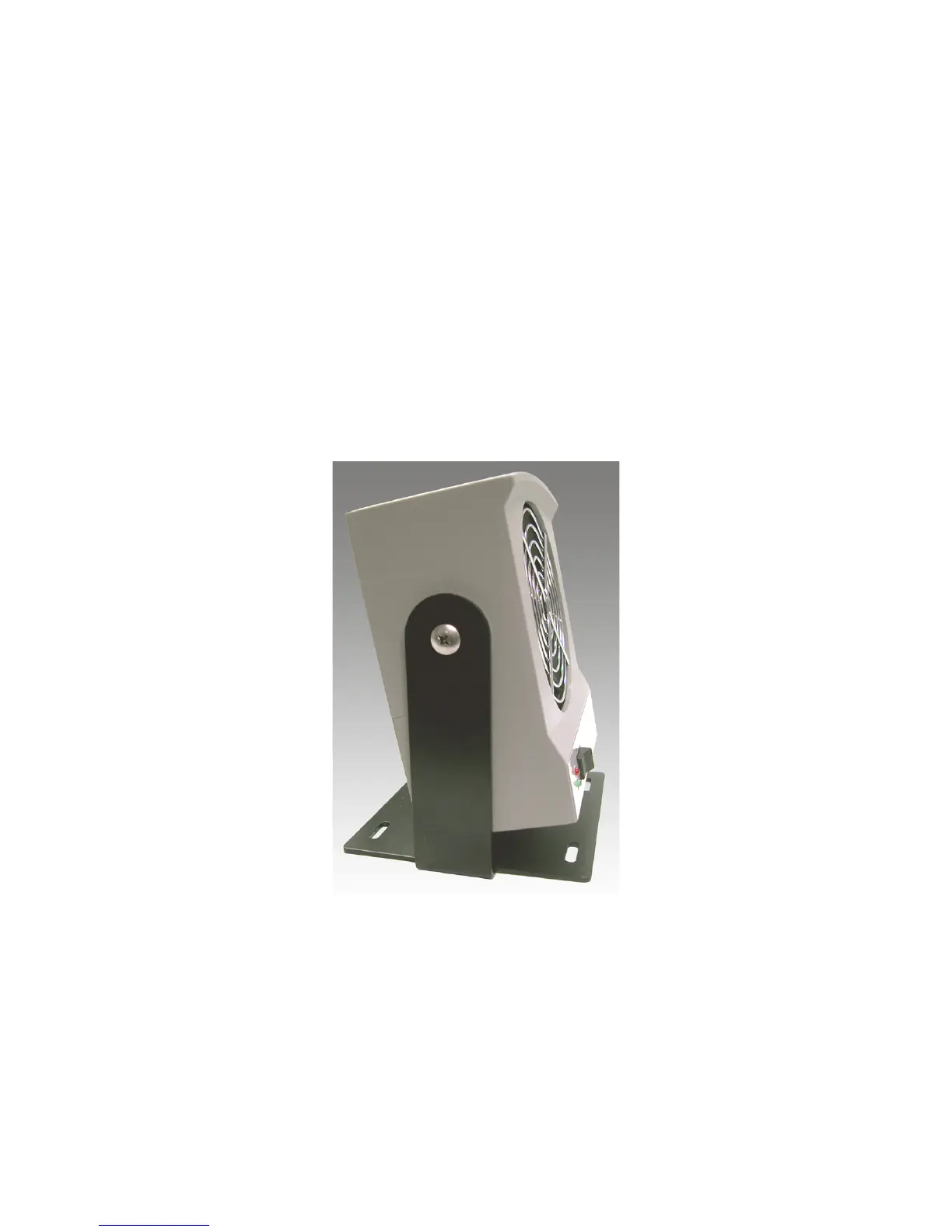

Figure 7. Machine Screw Installed in a Benchtop Mounting Stand
