2.5 Power Connections
The Blower may be powered by an optional 24 VAC 120 or 220 volt
transformer or a 24 VDC universal AC adapter, sold separately by
Simco-Ion. Plug the transformer or universal AC adapter into a
properly grounded VAC receptacle with the correct voltage for your
power supply.
Power Supply Connection
Insert the power cable from the transformer or AC adapter into the
Power In receptacle on the back of the Blower. See the
Performance and Power Requirements sections for additional
information.
AC Adapter Connection
The AC adapter (Simco-Ion p/n 14-1322) output is 24 VDC at 400
mA, maximum.
The AC adapter is shipped with its plug adapter uninstalled. To
install the plug adapter, slide it into the bay on the AC adapter. Push
it in until it clicks into place, see figure below.

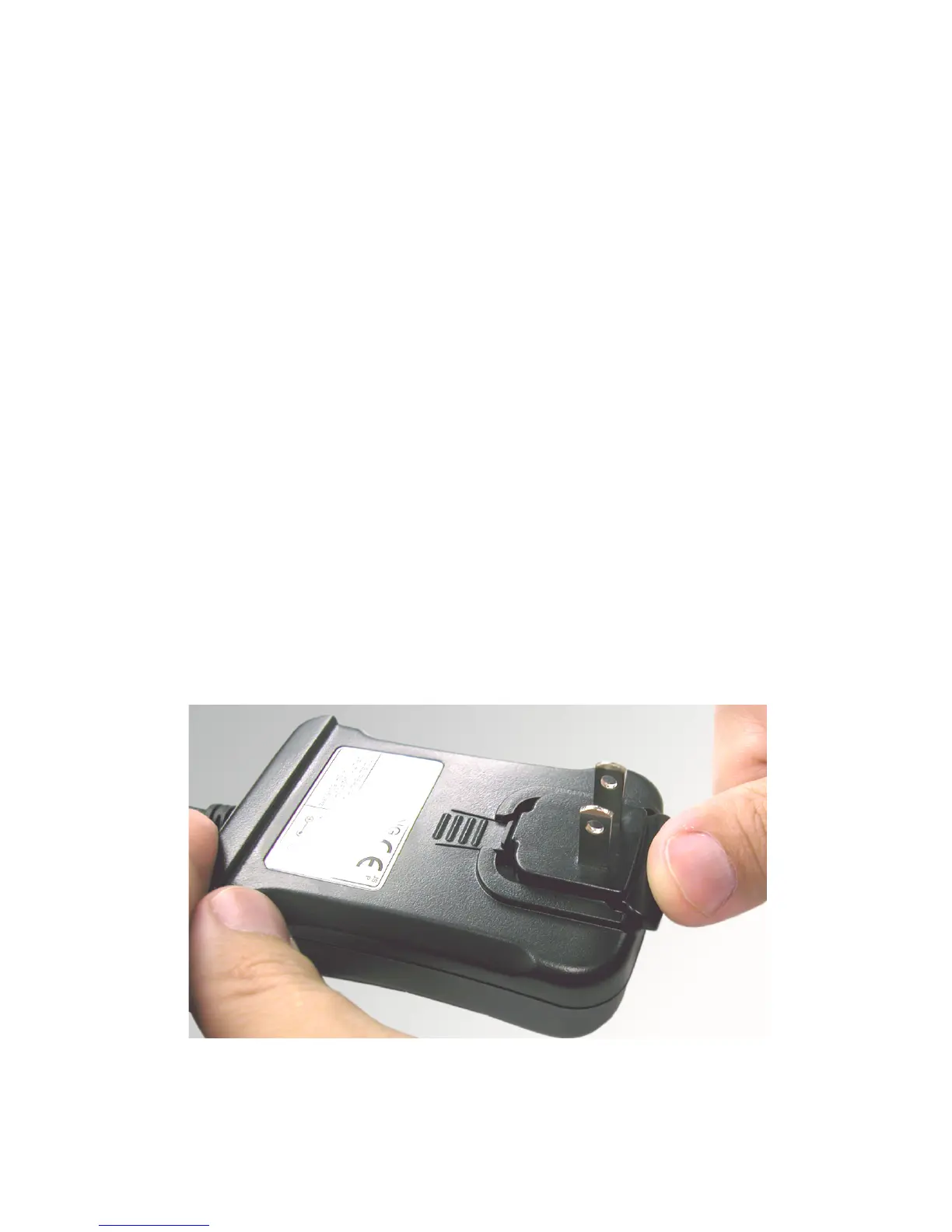

Figure 8. Push the Adapter into the Power Supply
