19-6432-M-01 Rev 4 16
Process Equipment Power Connection
Two pins on the eight-pin terminal strip on the rear of the Blower can
receive 24 VDC power from your process equipment. An included
terminal block (Simco-Ion p/n 18-2308) is used to connect 24 VDC
power to the Blower from your process equipment. The terminals
are designed to accept wiring between 22 AWG and 16 AWG.
When wiring the Blower directly to a 24 VDC source, observe the
maximum voltage and power requirements for the unit [24 VDC
(±10%), 400 mA DC maximum].
Use a small flatblade screwdriver to secure cables into the terminal
block. See figure below.

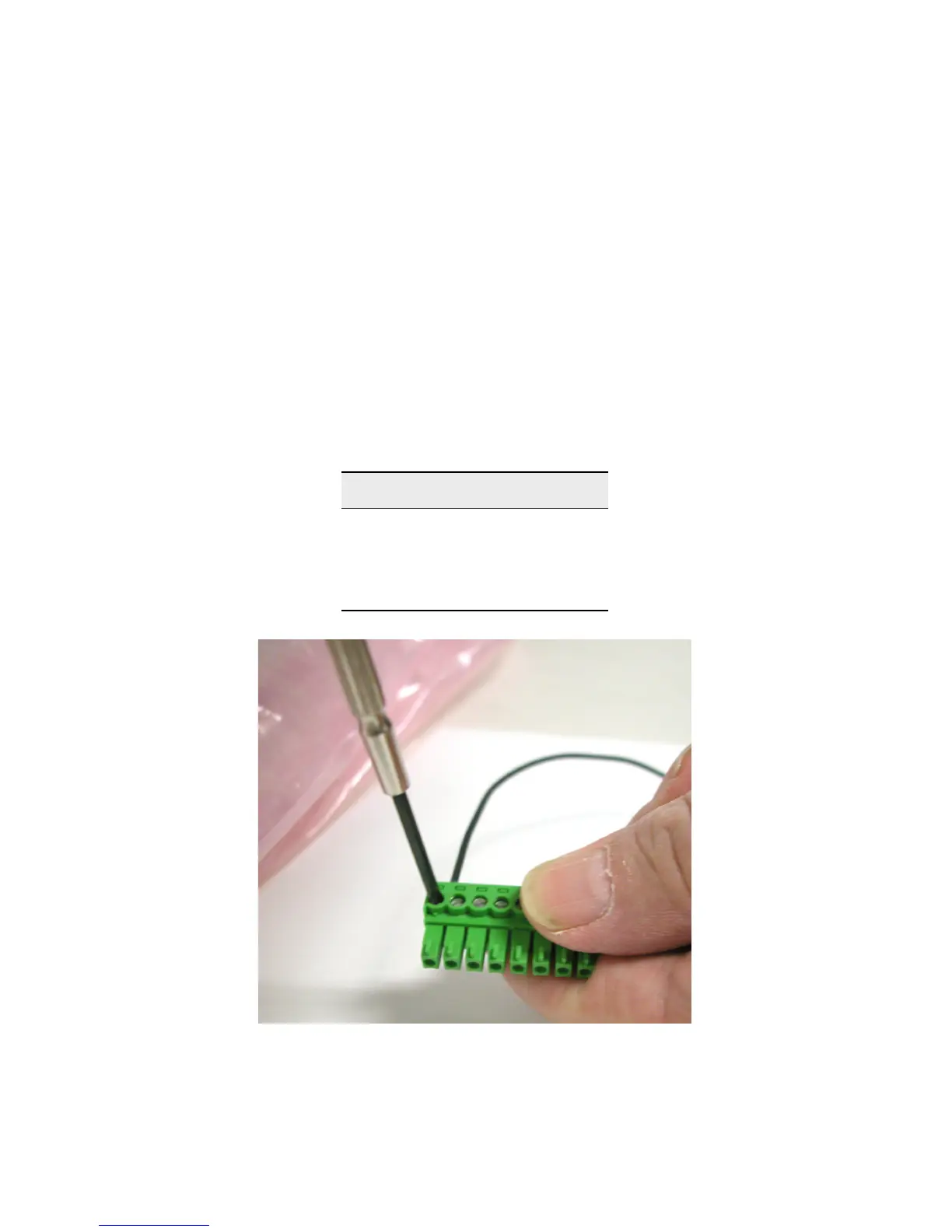

Figure 9. Use a Small Flatblade Screwdriver to Secure Connecting Cables
Pins State
8 24 VDC return
7+24V
6-1 Not used
