79
KEY
F1 Fuse (1.6 AT)
TR Transformer 230/24V
PI C.H. pump
EV1-2 Gas valve coil
VFan
PF Smoke pressure switch
VP Divertor valve
M Modulator
C Rotay switch
SM C.H. sensor
TA Room stat
EAR
Ignition/detection electrode
TRA Ignition transformer
TS 100°C safety stat
FL Flowmeter
TF Smokes stat
Nota: The room stat or the chronother-
mostat must be connected to terminals
10-11 of the “TA” connector after having
removed the bridge.
Fig. 17

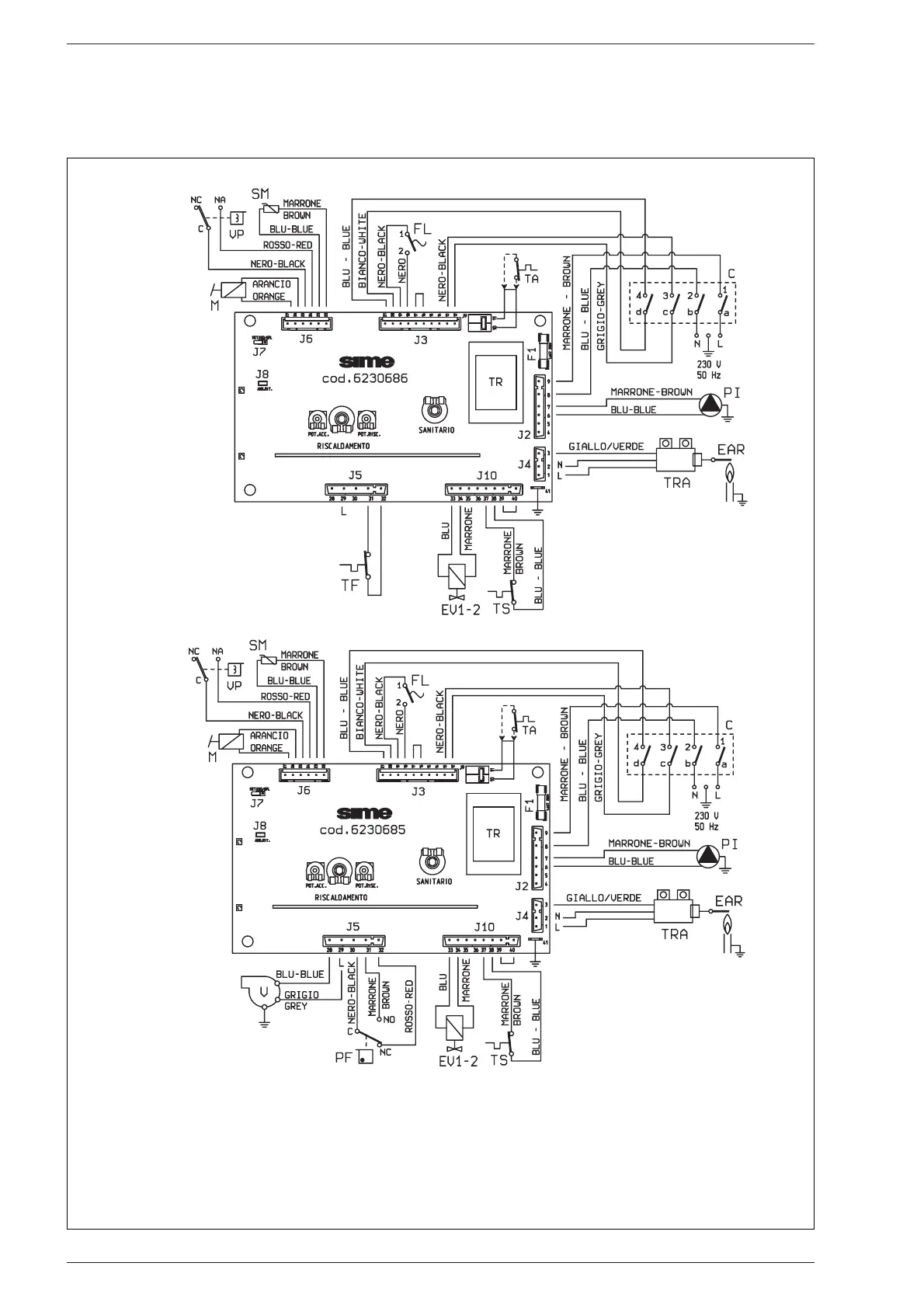

2.10.3 Wiring diagram
“25 BF” model
“25 OF” model
CONNECTOR SPARE
PART CODES:
J2 cod. 6278646
J3 cod. 6278645
J5 cod. 6278624
J6 cod. 6278662
J10 cod. 6278664
CONNECTOR SPARE
PART CODES:
J2 cod. 6278646
J3 cod. 6278645
J5 cod. 6278648
J6 cod. 6278644
J10 cod. 6278647
