Simex PL 4520 - Overall Dimensions

11

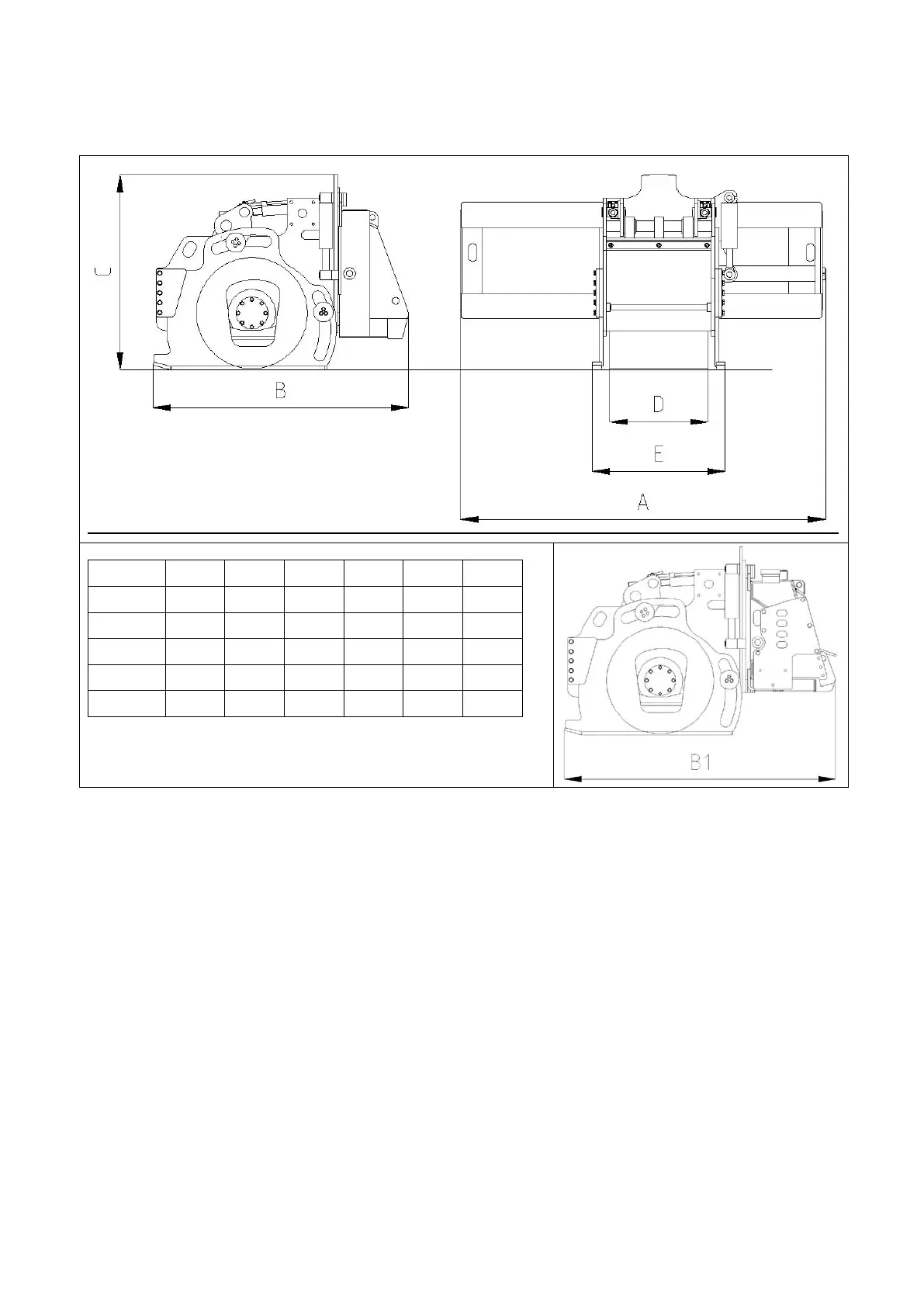

6.2 Overall dimensions
PL A B B1 (*) C D E
4520
1680 1180 1270 900 450 610
5020
1680 1250 1350 950 500 665
5520
1680 1180 1270 900 550 710
6020
1680 1250 1350 950 600 765
7520
1680 1300 1400 960 750 910
(*) Version with water tank mounted on side shift unit.
