Simex PL 4520 - Control Circuit Diagrams

55
19 Control circuit diagrams

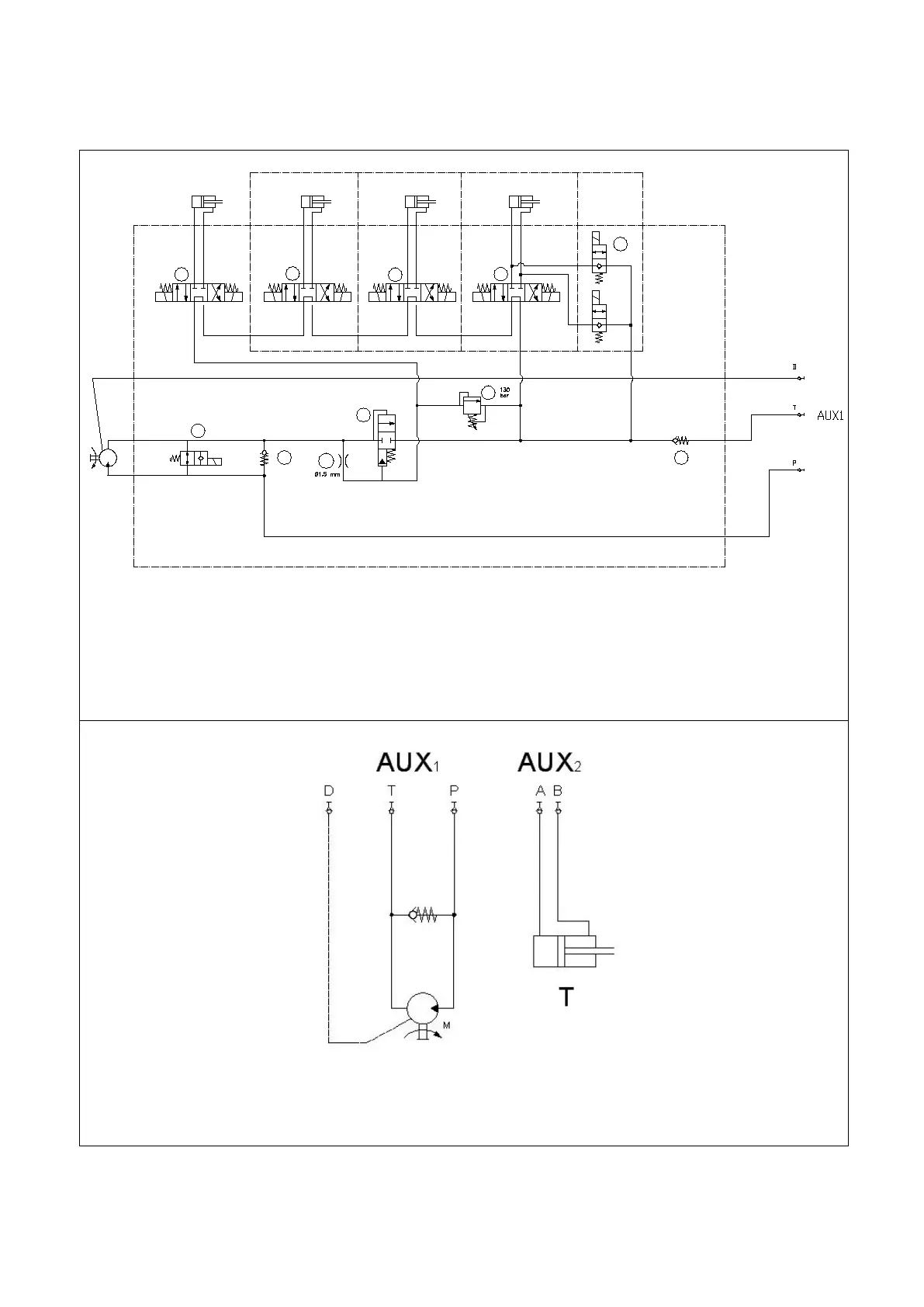

HYDRAULIC DIAGRAMS:
3-hydraulic line version
SV1
SV2
SV3
SV4
RV1
EP1
CV1
P1
T1
D1
P
T
A2 B2 A1 B1
A3 B3
A4 B4
D
T
IP DX
P SX
F
M
SV5
SF1
ORF
CV2
Key:
AUX= ‘High Flow’ auxiliary control
M = Motor
T= Hydraulic shifting
Pdx= RH hydraulic depth
Pdx= LH hydraulic depth
I= Hydraulic tilt
F= Hydraulic floating tilt
5-hydraulic line standard version
Key:
AUX1= ‘High Flow’ auxiliary control
AUX2= Auxiliary control for connected lines
M = Motor
T= Hydraulic shifting
