9.12 Side shift operation on the standard machine with 3-line hydraulic system
To activate the side shift, proceed as follows:

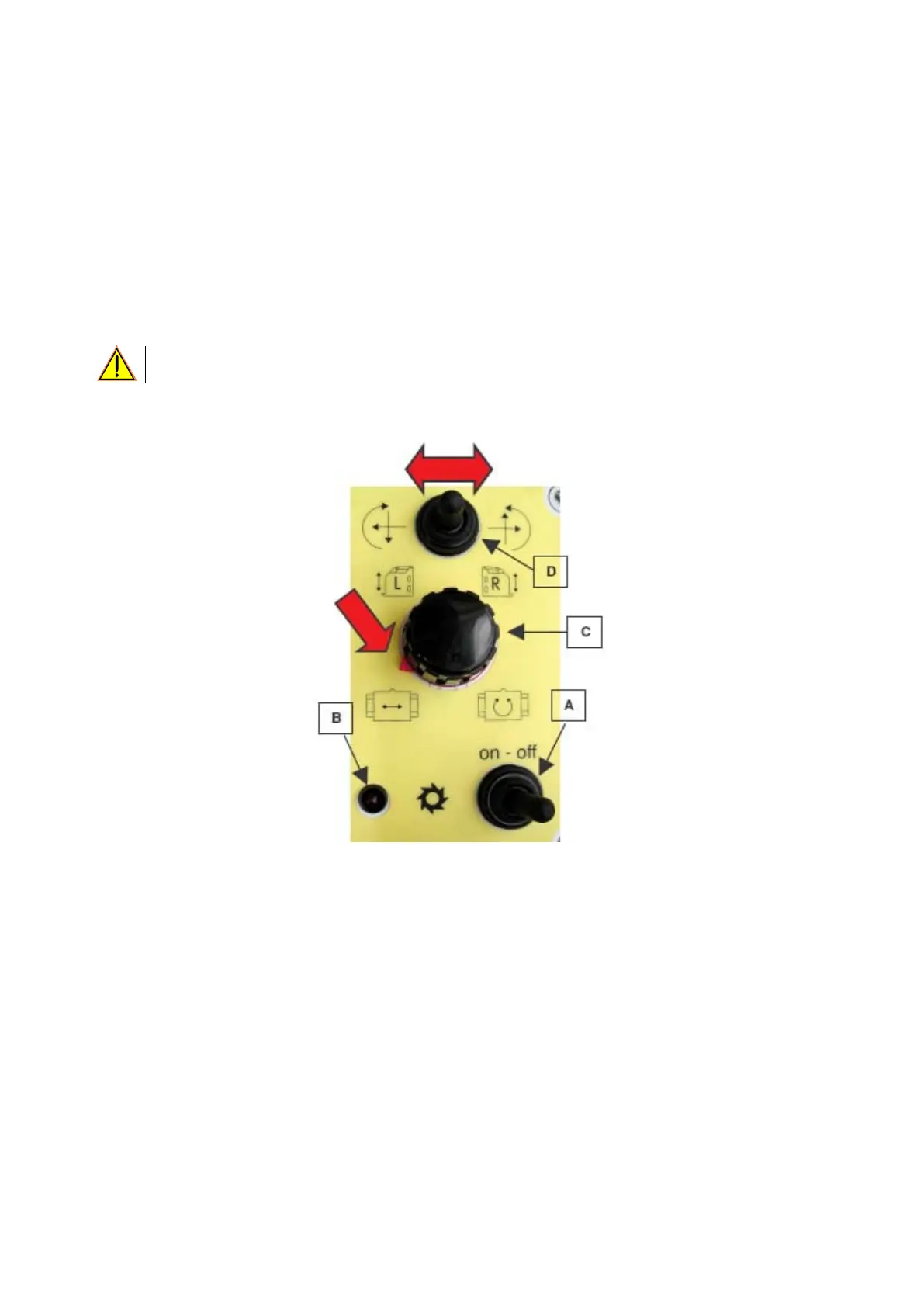

1- deactivate the drum by flipping the switch (ref. “A” in the figure) to OFF and check that the red LED is off
(ref. “B” in the figure);
2- turn control knob C to the side shift symbol (as shown in the figure);
3- switch on the oil pressure using the controls on the prime mover;
4- push switch D to operate the side shift.
The prime mover must never be moved with the machine lifted off the ground and the
drum rotating.
