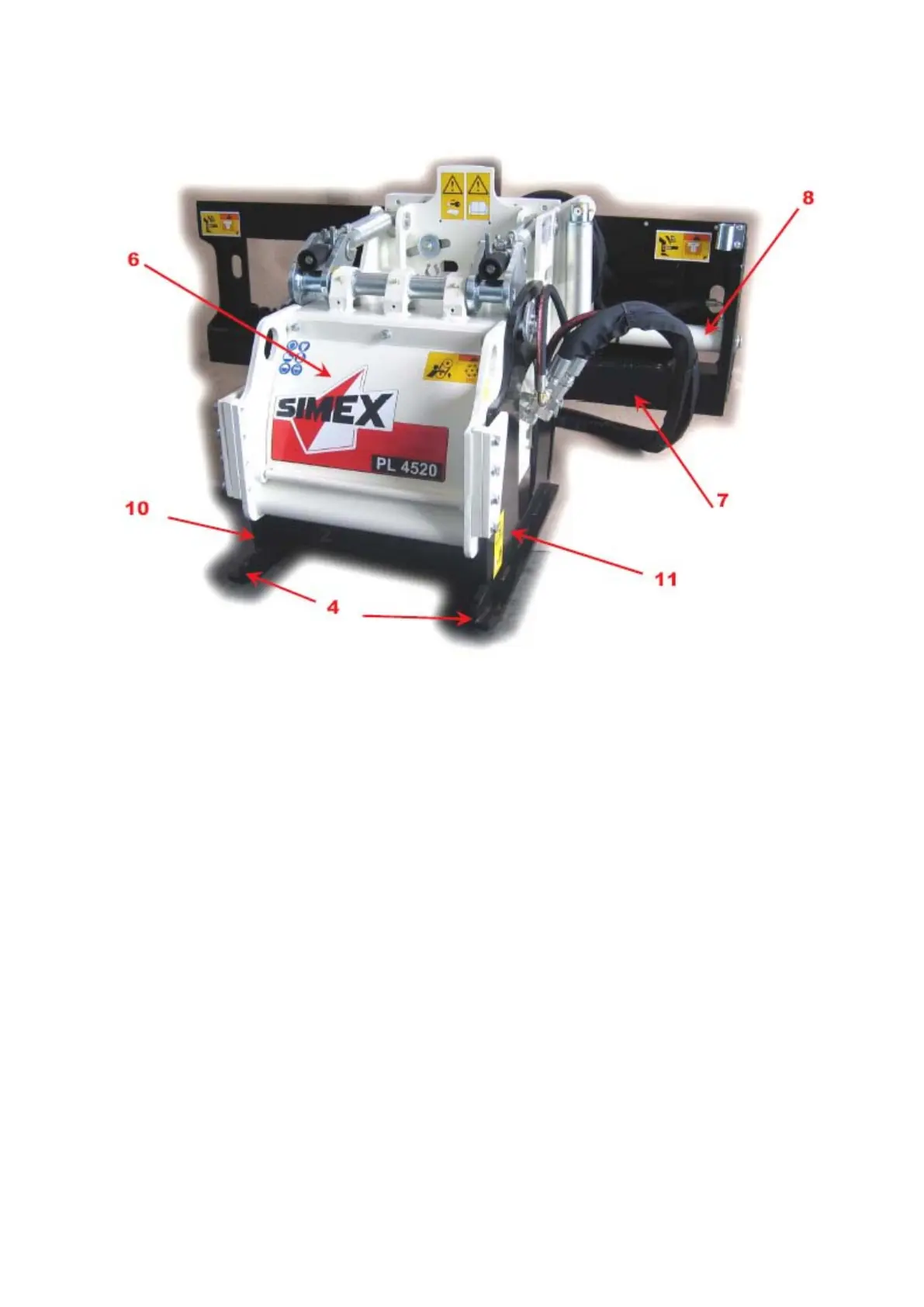

6.4 Main machine parts
1. Cutter drum;
2. LH work depth adjustment screw;
3. RH work depth adjustment screw;
4. Skids;
5. Hydraulic motor;
6. Drum inspection cover;
7. Side shift;
8. Side shift hydraulic cylinder;
9. Transversal tilt signal light;
10. Right-hand side plate;
11. Left-hand side plate;
12. Spring jack;
13. Valve for electro hydraulic controls (on machines with 3 hydraulic lines only);
14. By-pass valve lock (on machines with 5 hydraulic lines only);
15. Depth adjustment crank;
16. Tool removal spanners.
