In kit mode, there are 3 pages:
1. Kit number (001-014, default 1).
2. Kit volume (0-32).
3.Kitreverb:(on/off,defaulton).

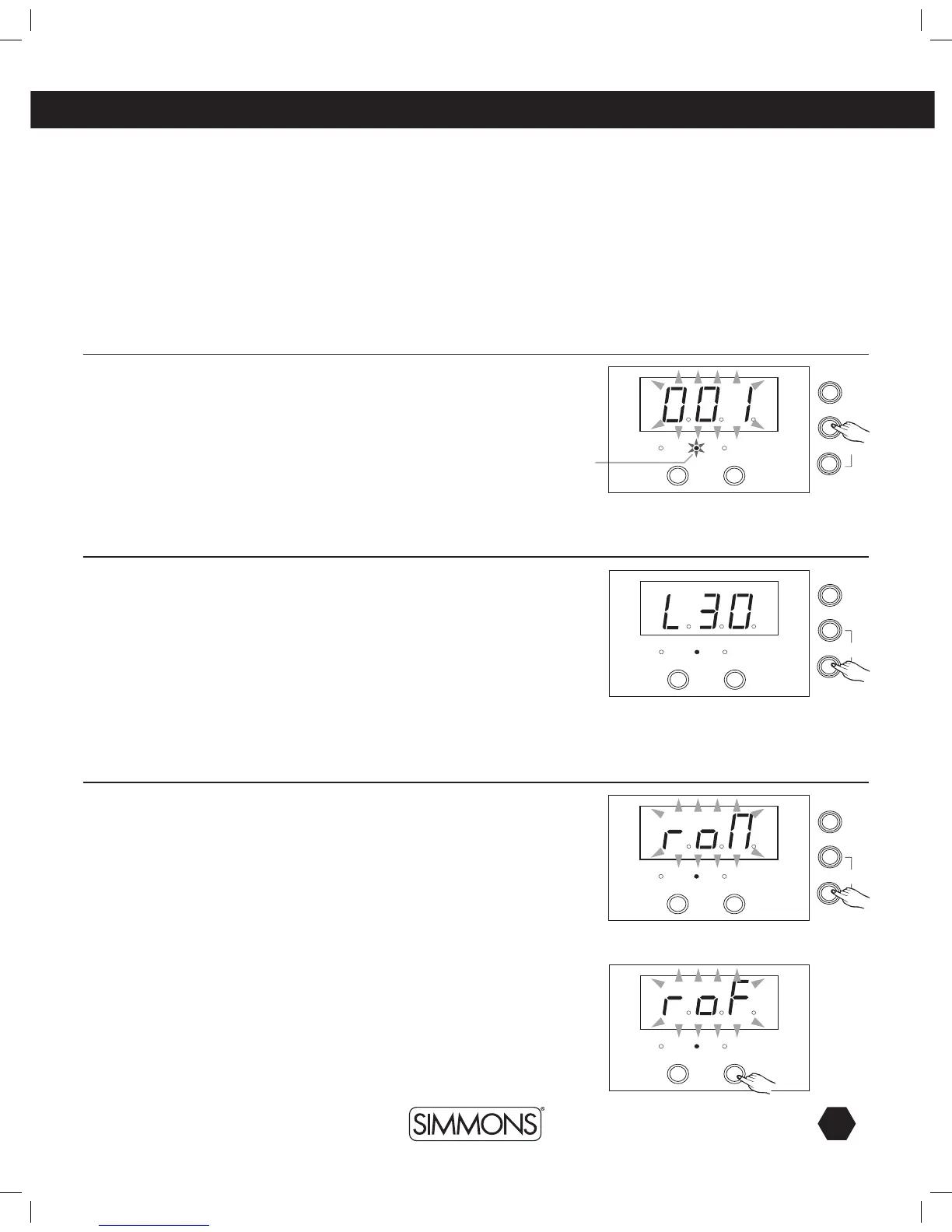

Selecting a Kit
In kit mode, kit number (001-014, default 1).
1. Press [MODE] button to select the kit mode, the kit LED indicator will light,
the 3-digit-LED will display the kit number (001).
2. Press [+]/[-] to adjust the value. Range: (001-014).
Adjusting the Kit Volume
In kit mode, kit volume (0-32).
1. Press the [MODE] button to select the kit mode, the kit LED indicator will light.
2. Press the [PAGE] button to select the kit volume page, the 3-digit-LED will
display the kit volume (L30).
3. Press [+]/[-] to adjust the value. This value will automatically be saved
upon exit. Range: (0-32).
Toggling Reverb On/Off
1. Press [MODE] button to select the kit mode, the kit LED indicator will light.
2. Press the [PAGE] button to select the kit reverb page, reverb effect can
toggled on or off by pressing button [+]/[-].
