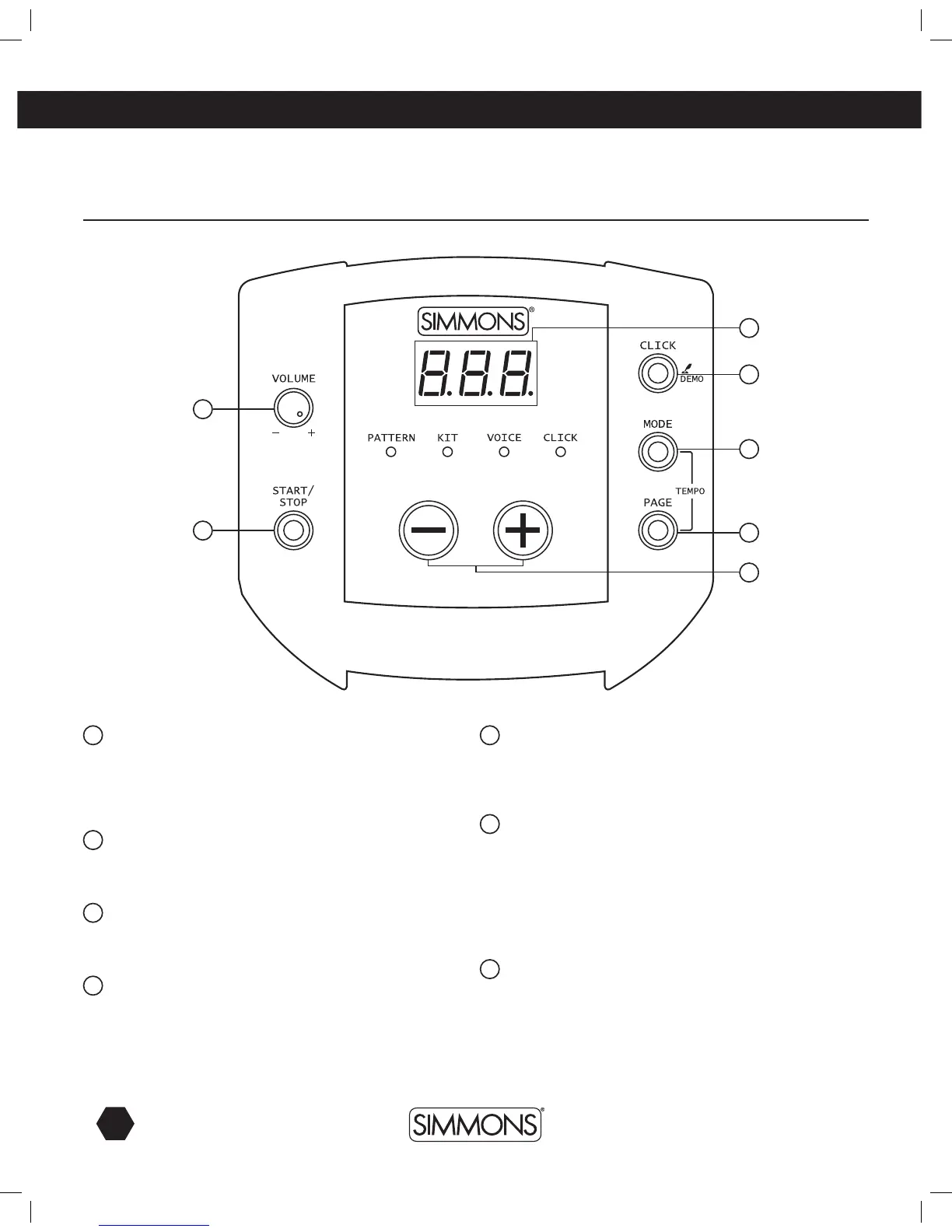

PANEL CONTROLS
1
Master Volume Control
Control the volume of phone and line outputs. Turn knob
clockwise to increase the volume and counter-clockwise to
decrease the volume.
2
[START/STOP] Button
Start or stop Pattern playing.
3
LED Display
3-digit LED and LED indicators.
4
[CLICK] BUTTON
Press [CLICK]buttontostart/stoptheclick.
Hold the [CLICK] button 2 seconds to enter the demo mode
and play the demo.
5
[MODE] Button
Press [MODE] button to select the mode from PATTERN, KIT,
VOICE,CLICK.
6
[PAGE] Button
Press [PAGE] button to browse the menu pages of current
selected mode.
Press both [MODE] and [PAGE] buttons, the 3-digit LED will
display the tempo page, it will display for 3 seconds, then
press [+]/[-] to adjust the value.
7
[+]/[-] Button
Press [+]/[-] button to adjust the parameters.
User Interface
SD5X
