SD5X digital drum kit User manual
The First Name in Electronic Drums.
connections
CAUTION!
To prevent electric shock and damage to the device, make sure the power is switched
OFF on the sound module and all related devices before making any connection.

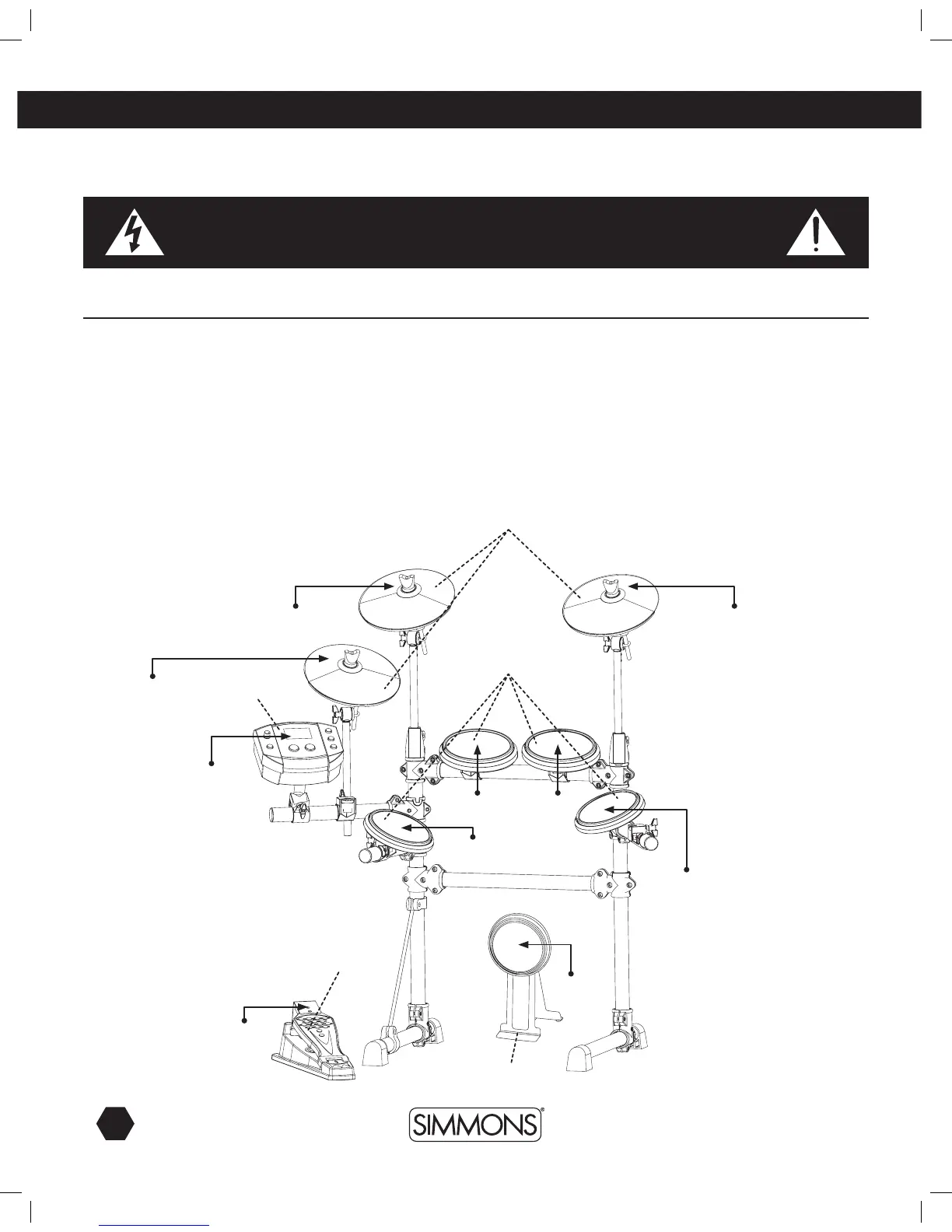

Pads and Pedal
Usingtheprovidedcables,connectthe1/4”jackstothecorrespondingdrum
pads, cymbal pads and kick pad. The pin connection will attach to the serial
port of the sound module. (See illustration.)
Note: The voice of the hi-hat pad is controlled by the hi-hat pedal. Similar to
a real drum kit, the hi-hat pad functions as an ‘open hi-hat’ when the pedal is
released. When the pedal is pressed down, it functions as a ‘closed hi-hat’.
Note: The striking area of cymbal pad (ride, crash or hi-hat) is near the edge
of the pad. One of the cymbal pads has a choke function (indicated by raised
pattern at cymbal edge.) Grab this area to stop cymbal from sounding.
Cymbal Pad
Drum Pad
Hi-Hat Pedal
Drum Module
Bass Drum
To Ride
To Tom 3
To Kick
To Hi-Hat
control
From Drum
Module
To Hi-Hat
To Crash
To Tom 1
To Snare
To Tom 2
9681 Simmons SD5X Electronic Drum Set Manual.indd 8 3/16/12 3:42 PM
