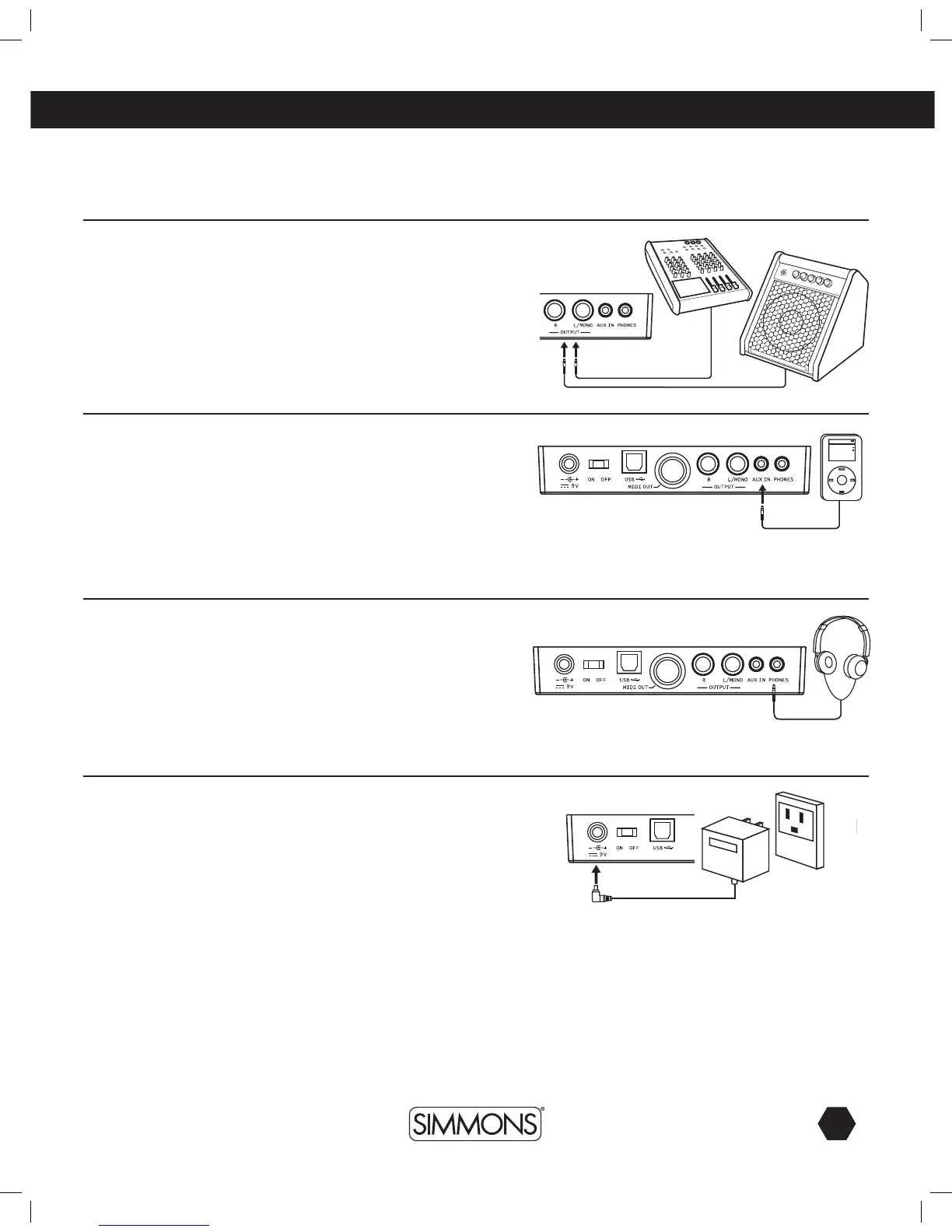

Mixer or Amplification
1. When you want to listen to the voices send the drum to a mixer or amplifier.
Connect using the Output L/MONO and R jacks on the rear panel (for
monauralplayback,usetheL/MONOjack;forstereoplayback,connect
bothL/MONOandRjacks.)
2.ThevolumeisadjustedwiththeVOLUMEknob.
MP3 (Aux in Jack)
1.UseaudiooutputofMP3player,orotheraudiosource,toconnectwiththe
AUXINjackontherearpanel.Playalongwithapre-recordedtrack.
2.ThevolumeoftheexternalsignalisadjustedwiththeVOLUMEknob.
Headphones
An optional set of stereo headphones can be connected with the PHONES
jack located on the rear panel of the drum module. Adjust the volume to a
comfortable level.
Power Supply
Make sure the power is switched OFF and connect the power adaptor with the
DC IN jack on the rear panel.
Note: To protect the speakers, amplifier and the drum module from damage,
lower the volume to the minimum level before switching the power ON.
Make sure the power is switched OFF when connecting the drum module with
external devices.
Amplifier Amplifier
Amplifier Amplifier
Amplifier Amplifier
Amplifier Amplifier
