Simmons SD600 User Manual

9

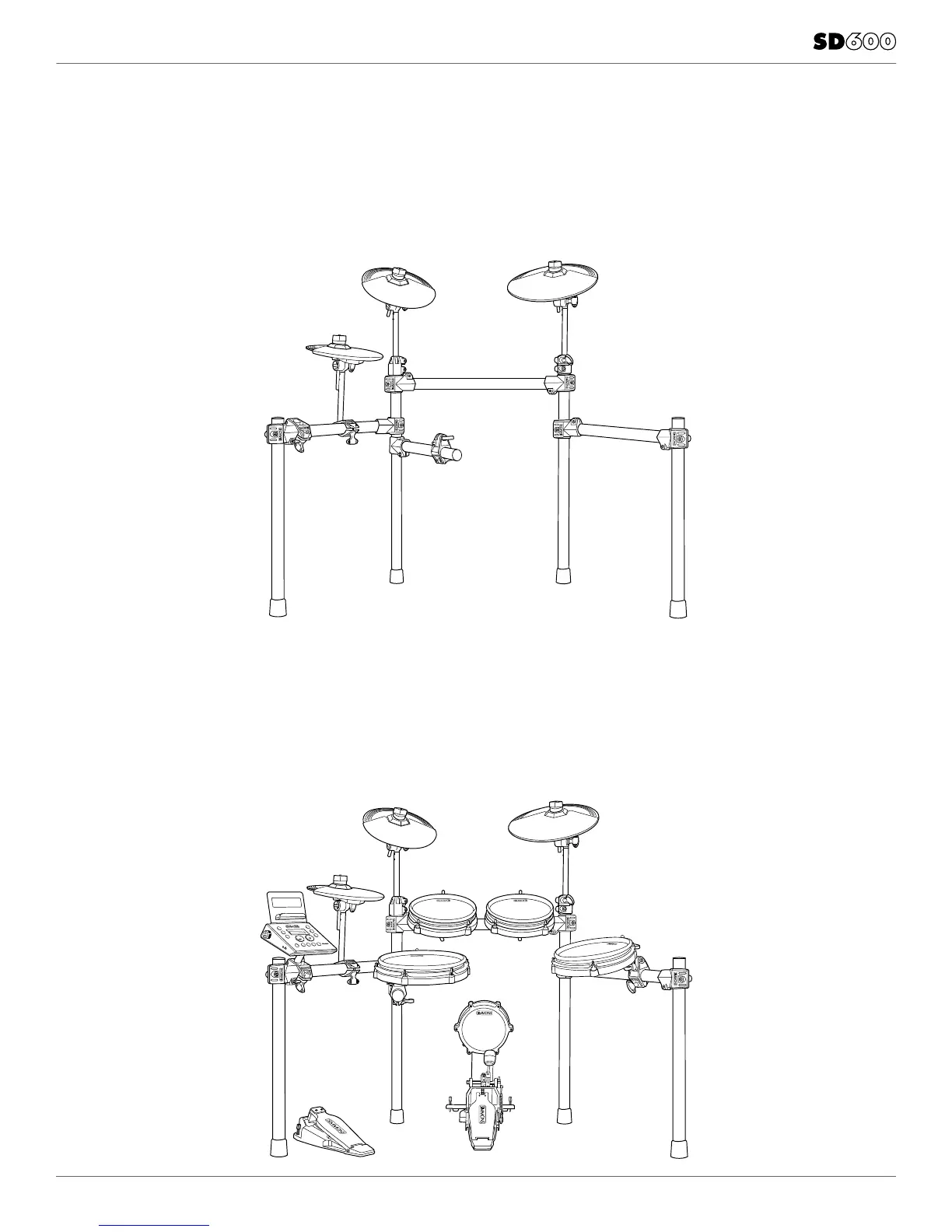

ASSEMBLING YOUR KIT
ATTACHING THE CYMBAL PADS
1. Insert each cymbal arm into the rack clamp.
2. Insert short hi-hat arm on the left-side arm’s cymbal clamp.
3. Remove wing nut from cymbal tilter. Place cymbal pad on tilter assembly.
4. Re-attach washer and wing nut. Tighten wing nut.
ATTACHING THE DRUM MODULE AND DRUMS
1. Loosen wing screws on drum rack.
2. Place drum module into drum clamp.
3. Tighten wing screw to secure module.
4. Place drums into mounting rods and tighten with wing screws.

Simmons SD600 Specifications

General

User Kits	10
Metronome	Yes
Type	Electronic Drum Kit
Outputs	1 x 1/8" Headphone
USB	USB to Host
Effects	Reverb
Kick Pad	Yes
Hi-Hat Controller	Yes
