4.1. MENU NAVIGATION
Pressing the ‘M’ key selects Menu mode from the main Channel Screen. Once in menu
mode, the ▼ and ▲ keys cycle through the menus.
To exit Menu mode, press the ‘M’ key again or the Menu timeout will exit
automatically. Generally, pressing ‘M’ key while in a menu backs up to the next highest
level of menu and the ‘OK’ (F4) key selects the menu screen.
The ▼ and ▲ keys are used to navigate through a list of options such as channels, or
to increase/decrease a value.
When the Menu key is first pressed, the numeric keys become short cut keys to
functions. Numeric keys can be programmed (using FPP) with functions, e.g. Scan.
To access this, you can press the ‘M’ or menu key from the channel screen and then
the numeric key assigned to that function.
Note:- Example menus only shown, other menus can be configured with the FPP

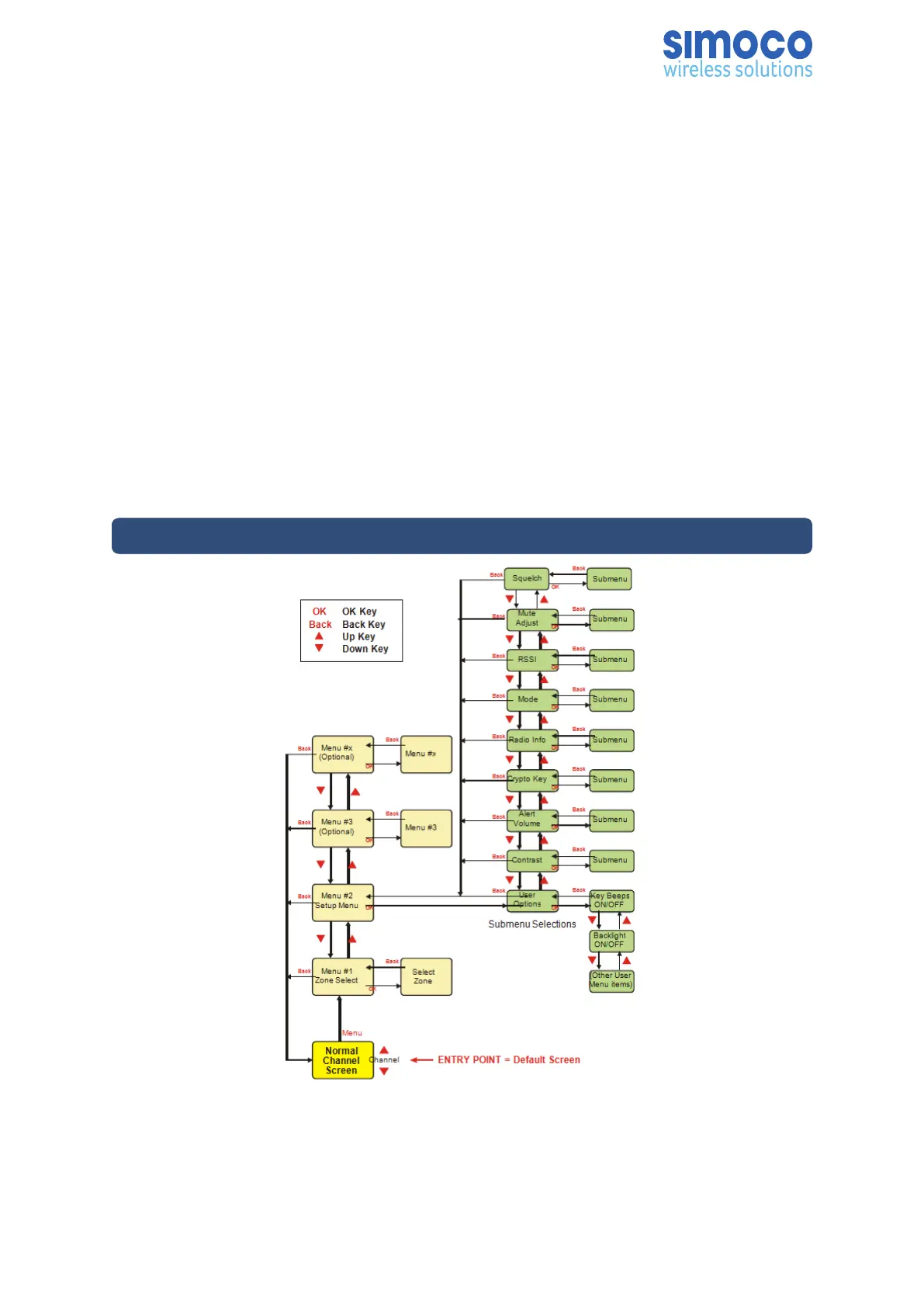

Figure 4: Menu Navigation.
Doc Number: TNM-U-E-0055 ISSUE 4.0 Page 29
