SIMOLIO SM-826D - RCA Analog Connection

08
Step 2. TV Audio Format and Speaker Setting (use TV remote control)
If you can not hear sound from your headphones after connecting:
• Ensure TV Audio Format is set to “PCM” or “Dolby/DTS” is OFF (This is
IMPORTANT, Ref. Fig 3-6)
PS: for certain smart Samsung models, the TV is retaining separate settings for
regular TV and internet TV setup. When you turn to the Smart Hub for Internet
source, please use the TV remote to go to Settings > Sound > Expert Settings >
Audio Format or Digital Output Audio Format, then select PCM.
09

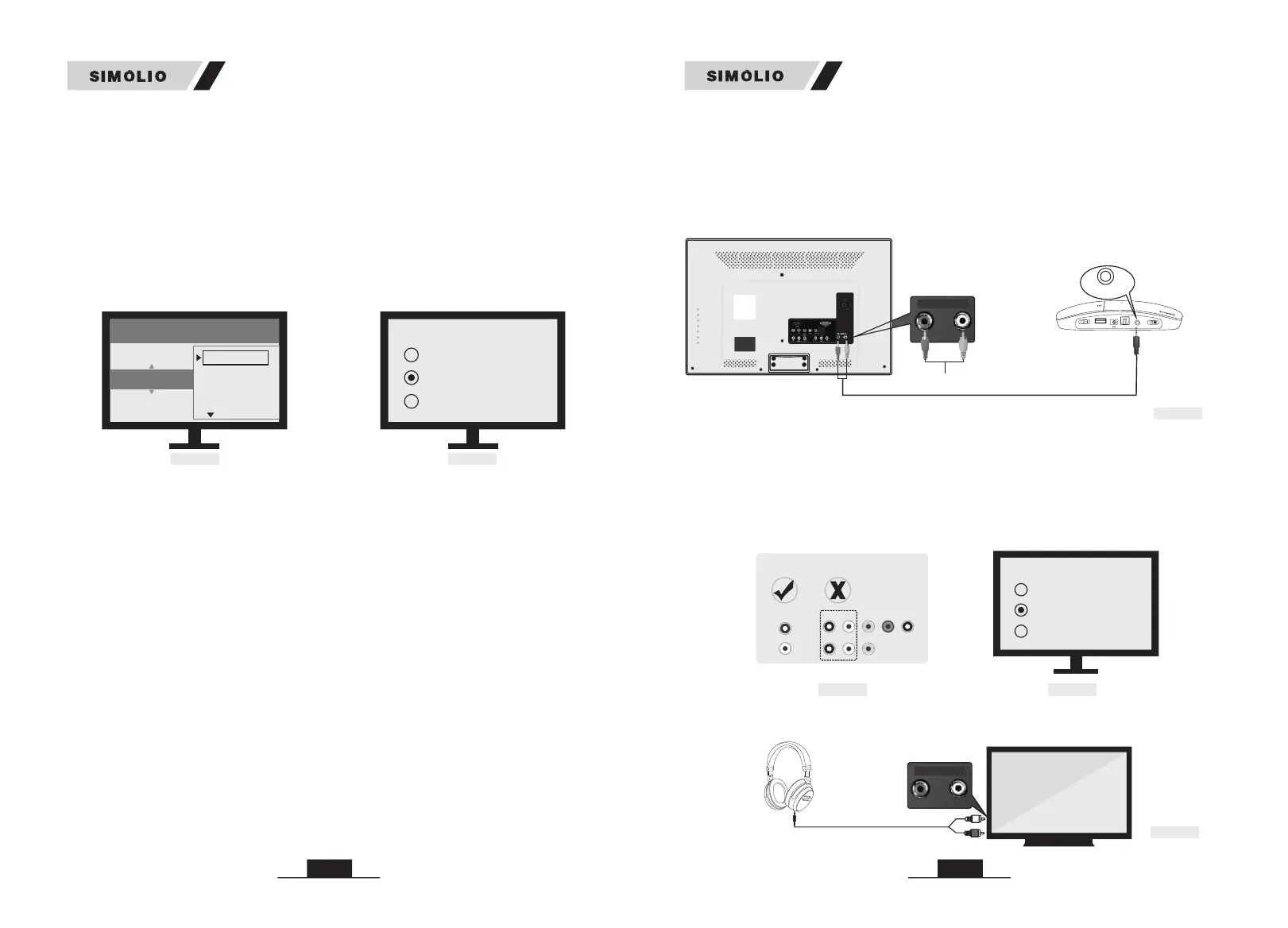

Plug the red and white ends of the audio cable into the analog RCA Audio Out
ports (red and white ports labeled “AUDIO OUT”) on the back of the TV. Plug
the single end of the audio cable into the port labeled “AUDIO IN” on the back of
the transmitter.
• Be aware that the base should be placed at least 4 feet away from your Router/
smart WiFi TV/TV sticks/WiFi TV box to avoid interference.
• If you cannot get to the back of your TV and you only watch the programs
through a fixed TV box (cable/satellite box/DVD etc.), you can also use these
instructions to install the system to your TV box.
Step 1. Hook up SIMOLIO to the RCA Audio Out Port of the TV/other Audio
Device
Notes: If your TV only support single sound out, the TV’s speakers will be either
automatically muted when you plug something into an audio out port (Optical/
AUX/RCA, etc.) or they become disabled once you choose "External Speakers"
as your TV's audio output. It depends on TV circuit design.
• Ensure your TV speaker is set to “External Speakers”. (Ref. Fig 3-7)
Fig 3-6 Fig 3-7
* Setting menu may be different depending on different TV brands and models.
For most TVs, the TV's internal speakers and an external audio device can work
simultaneously. Such as, for some newer LG TVs, when do optical audio
connection, you can set the “Sound Out” to “Internal TV Speaker + Audio Out
(optical)”. And for some newer Samsung TVs, you can enable this feature by
selecting “TV Speaker” from the TV Sound Output lists.
Speakers
Internal speakers
External speakers
Headset
Settings
Audio Format
Dolby Digital
DTS
DTS Neo 2:5
PCM
SM-826D
SM-826D
Fig 3-8
Step 2. TV Audio Out Checking and TV Speaker Setting (use TV remote
control)
If you can not hear sound from your headphones after connecting:
• Ensure use TV Red/White ports labeled “AUDIO OUT” or “OUTPUT”, other
Red/White ports are incorrect. (Ref. Fig 3-9)
• Ensure your TV speaker is set to “External Speakers”. (Ref. Fig 3-10)
RCA Audio Cable
TV REAR
R AUDIO OUT L
POWER OUT
DC 5V/500mA
STEREO
MONO
OFF
OFF/ON
DC 5V
POWER IN
OPTICAL IN
AUDIO IN
BASS
TREBLE
NORMAL
TONE
A
U
D
IO IN
This Part is an alternative to 3.1 on page 7. This part will explain how to connect
the SIMOLIO SM-826D transmitter to your television, satellite, or cable box
using an RCA analog audio cable.
AUDIO OUT
R
L
COMPONENT IN
VIDEO IN
TV REAR
Fig 3-9 Fig 3-10
Speakers
Internal speakers
External speakers
Headset
RCA Audio Cable
Fig 3-11
R AUDIO OUT L
• Use the RCA cable to plug the headphone into the RCA output of the TV to test
if you can hear the TV sound. (Ref. Fig 3-11)
03
02
01
3.2 RCA Analog Connection
